605-0000-706 ProST Installation User Guide-Rev I
24
Wall Mounting
The ProST is wall mounted in two main stages:
Attaching the mounting bracket to the ProST's mounting holes
Attaching the mounting bracket (attached to the ProST) to the wall
To wall mount the ProST:

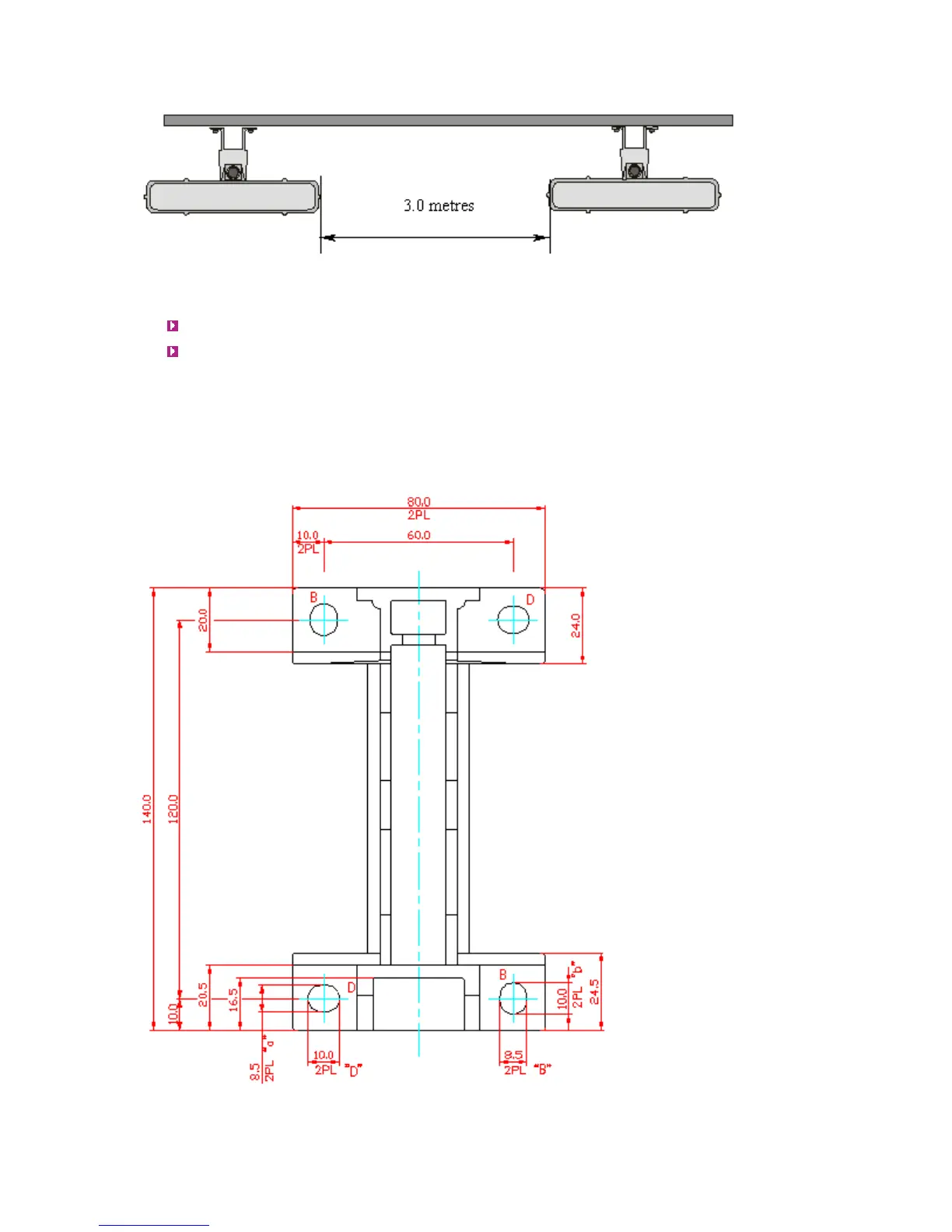

1. Position the unassembled mounting bracket on the mounting surface (e.g. wall), and then
use a pencil to mark the position of the four mounting holes. Ensure that the distance
between the hole centers are 120 mm (height) and 60 mm (width), as displayed in the
figure below showing the ProST's fixing dimensions.
2. Drill holes for each hole that you marked in the step above.
