605-0000-706 ProST Installation User Guide-Rev I
48

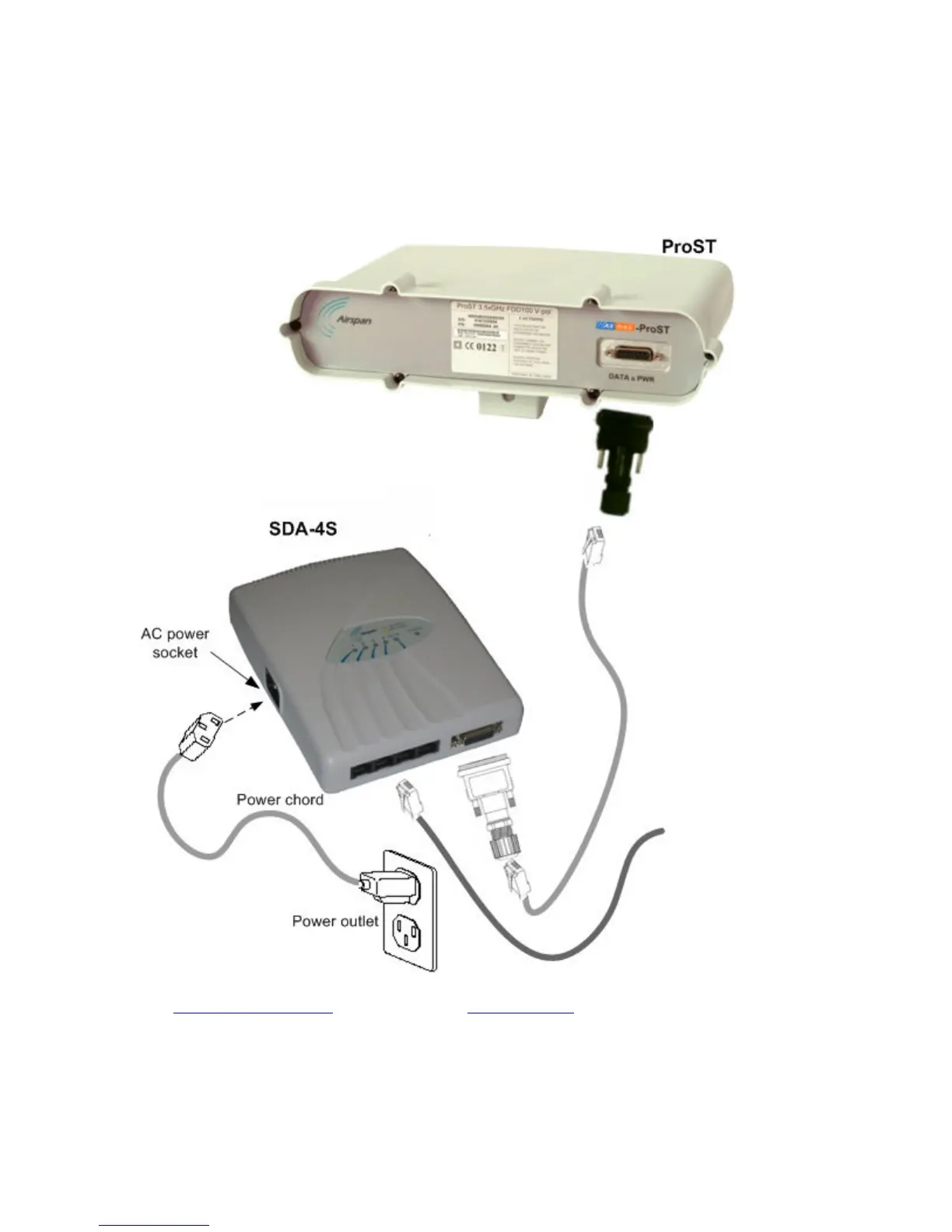

1. Connect the power plug female, at the end of the AC power chord, into the AC power socket
located on the left panel of the SDA-4S.
2. Plug the power plug male, at the other end of the AC power chord, into the AC power outlet
(110-240 VAC).
3. Verify that the power is received by the SDA-4S by checking that the POWER LED light is
on.
Verify that your SDA-4S is on and receiving power by checking that the LED labeled POWER is lit
(see SDA-4S LED description
). If it is not lit, see Troubleshooting.
