1. Assemble the red and black plastic housings together. Mate both connectors, by sliding
them along the dovetail joints. When looking at the connector side (not the wire side), the
red connector should be on the left and the black on the right. The housing dovetails
should be mated fully.

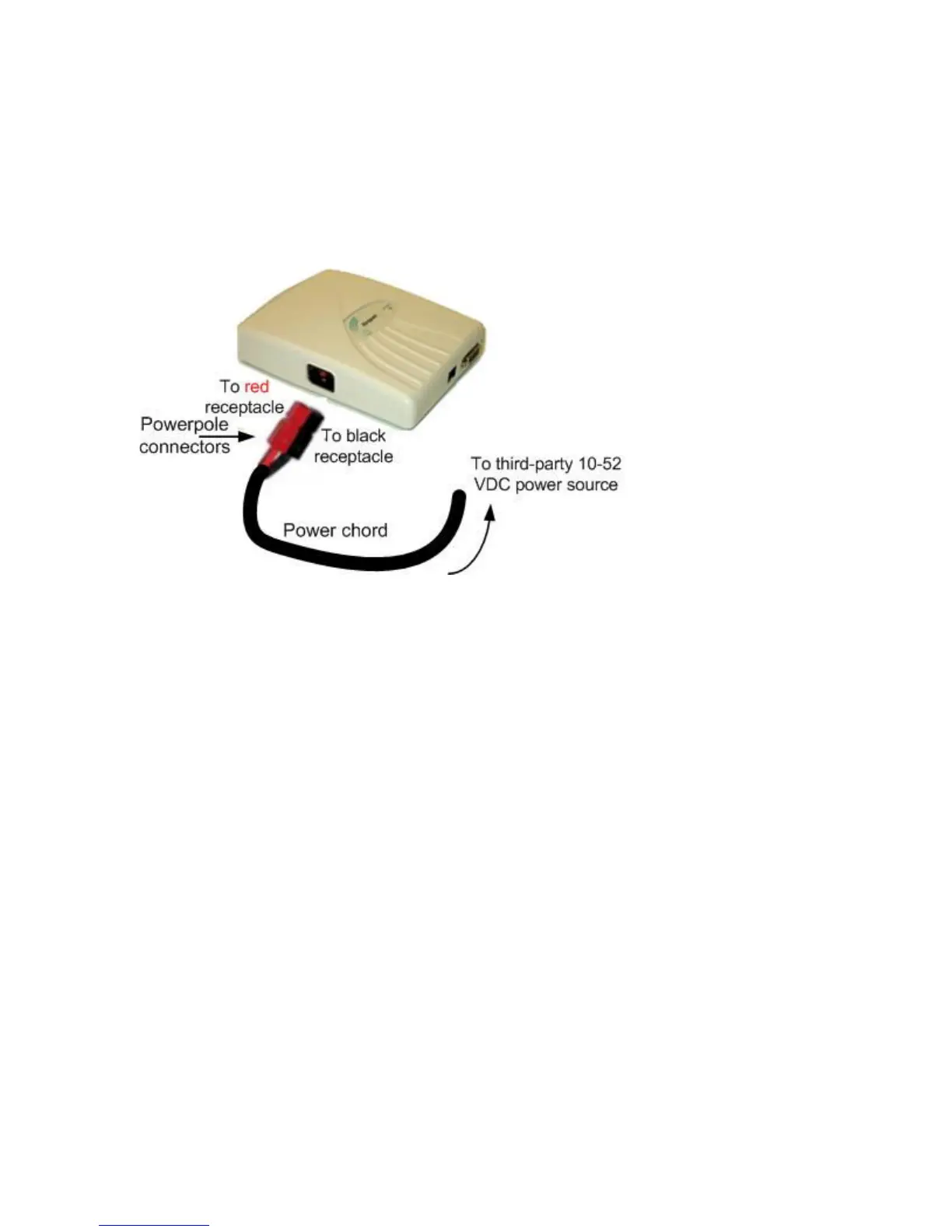

2. Connect the power connectors to the SDA-4SDC power receptacles so that the connectors'
color matches the receptacle's color, red to red (positive), and black to black (negative).
3. Connect the other end of the power cord to the third-party DC power source. Ensure that
the positive and negative sides are correct.
