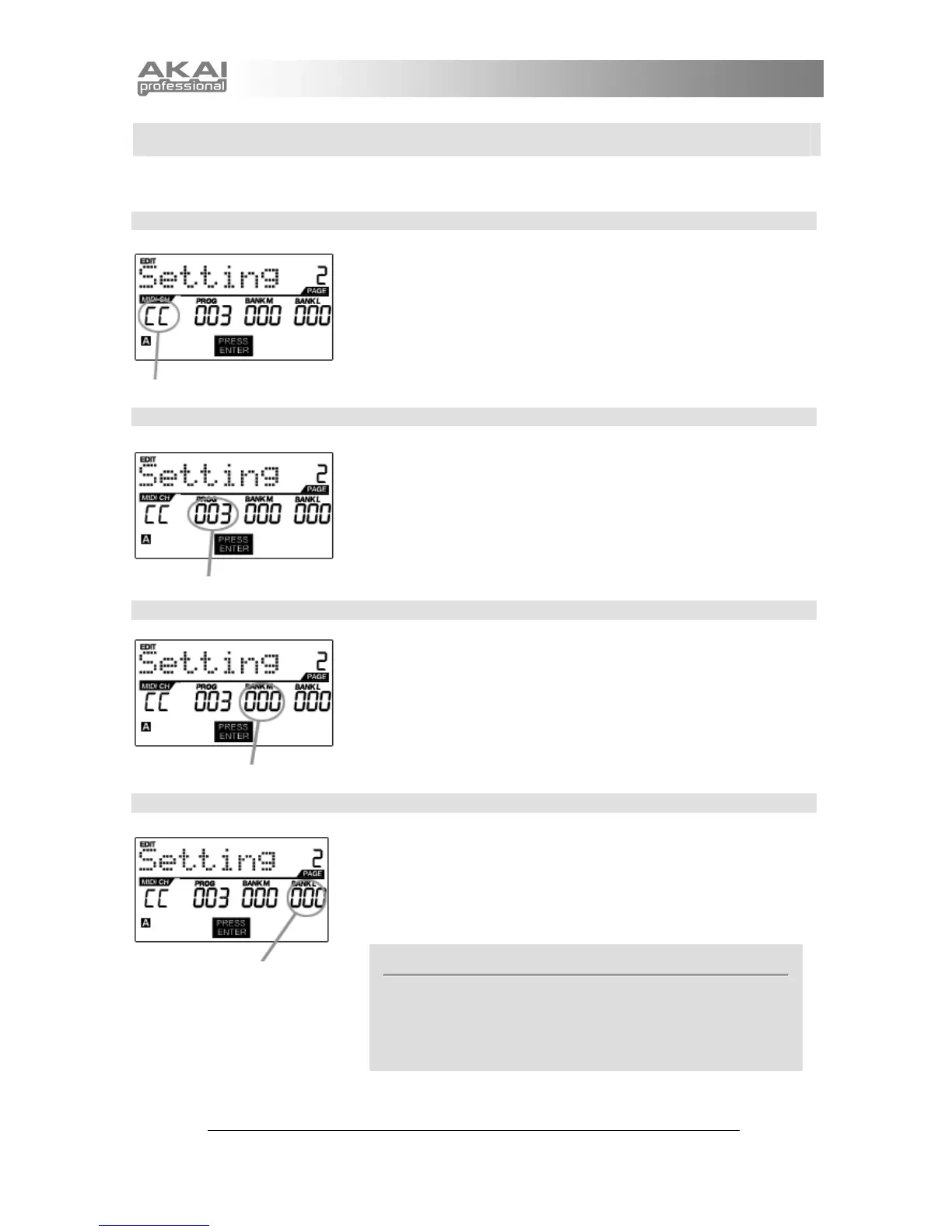

MIDI PORT/CHANNEL FIELD
PORGRAM CHANGE FIELD
BANK M FIELD
BANK L FIELD
Note:
You can also configure buttons to send Program Change messages
only, without specifying Bank M and Bank L. While editing Bank M
and Bank L fields, use [VALUE] dial to set Bank M and Bank L to
‘OFF’ (beyond 000). This will cause the button to transmit only a
Program Change message.
PROGRAM CHANGE PARAMETERS
Buttons can also be assigned to transmit Program Change messages when pressed. The following list of
parameters can be accessed if the button event type is set to “Program Change”.
MIDI CHANNEL FIELD
Buttons can send Program Change messages can be sent on one of two MIDI
Ports, A or B, and one of 16 MIDI Channels on each port (i.e. A7). You may
also assign Program Change to use the MIDI Common Channel.
1. Press [<] to select MIDI Port/Channel field.
2. While in MIDI Port/Channel field, use [VALUE] dial to select desired MIDI
Port and Channel.
3. Press [>] to select the next field.
PROGRAM CHANGE FIELD
In this field you can set which Program Change Number the button will transmit
when it is pressed.
1. Press [<] or [>] to select Program Change field.
2. While in Program Change field, use [VALUE] dial to select desired Program
Change Number.
3. Press [>] to select the next field.
BANK M FIELD
Bank M describes the Most Significant Bit (MSB) of information.
1. Press [<] or [>] to select Bank M field.
2. While in Bank M field, use [VALUE] dial to select desired value.
3. Press [>] to select the next field.
BANK L FIELD
Bank L describes the Least Significant Bit (MSB) of information.
1. Press [<] or [>] to select Bank L field.
2. While in Bank L field, use [VALUE] dial to select desired value.
When finished editing, press [ENTER] to save or [<] to cancel the changes.
