Page 20 of 80
Power Wiring
The kit includes five pre-built wiring harnesses with fully insulated FASTON connectors
to make the power wiring easy and safe. The FASTONs take a little force to push on, and
a lot more force to remove. You can save your fingers if you use needle nose pliers to
push the FASTON connectors in place.
Read the instructions carefully to make sure you have them in the right place before you
push them on the terminals.

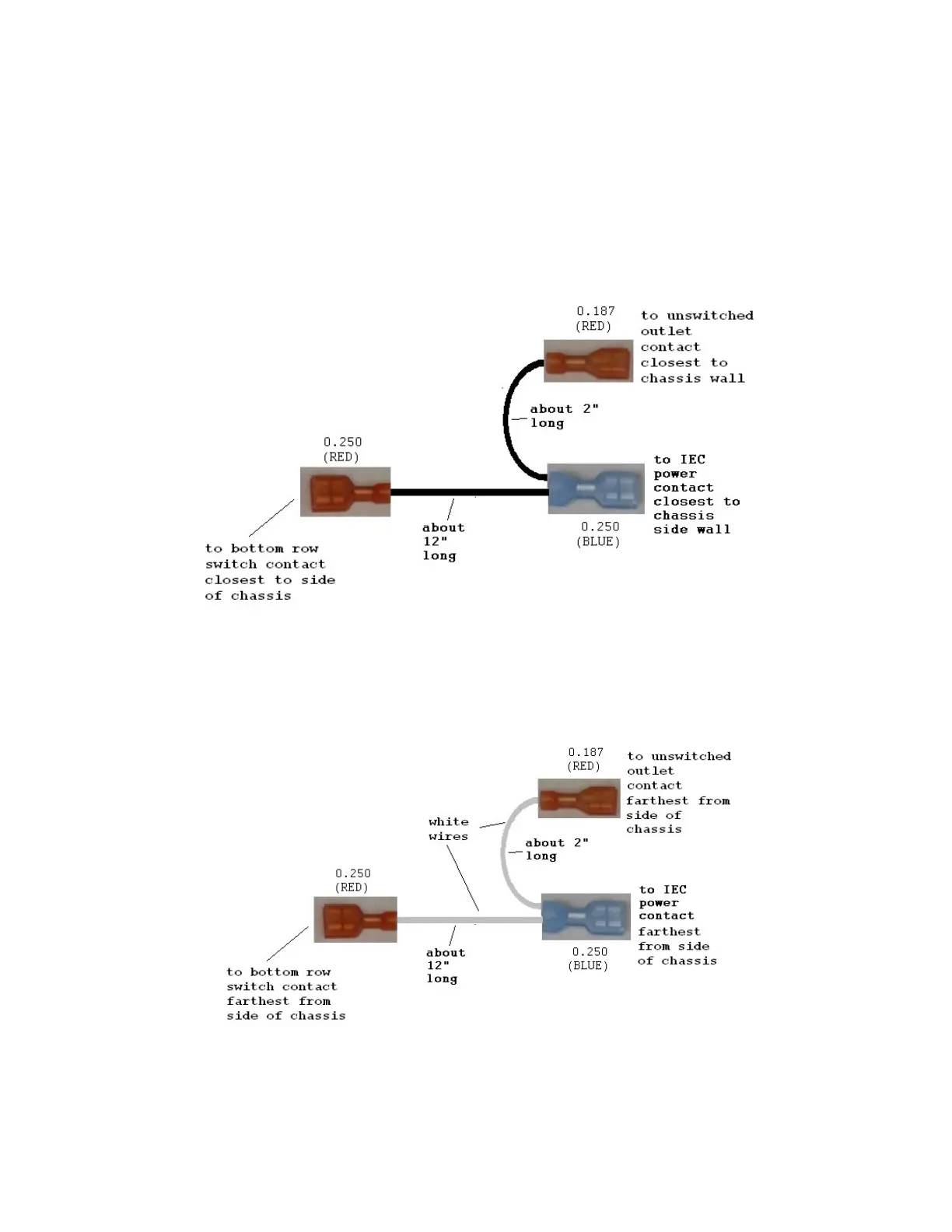

Locate the black unswitched power harness. It has black wire with 3 FASTONs.
1. Connect the blue 0.25” wide FASTON to the IEC power contact closest to the
chassis wall.
2. Connect the red 0.187” wide FASTON to the unswitched outlet contact closest to
the chassis wall.
3. For now, leave the remaining long end with the FASTON connector loose.
Locate the white unswitched power harness. It has white wire with 3 FASTONs.
4. Connect the blue 0.25” wide FASTON to the IEC power contact farthest from the
chassis wall.
