Page 60 of 68

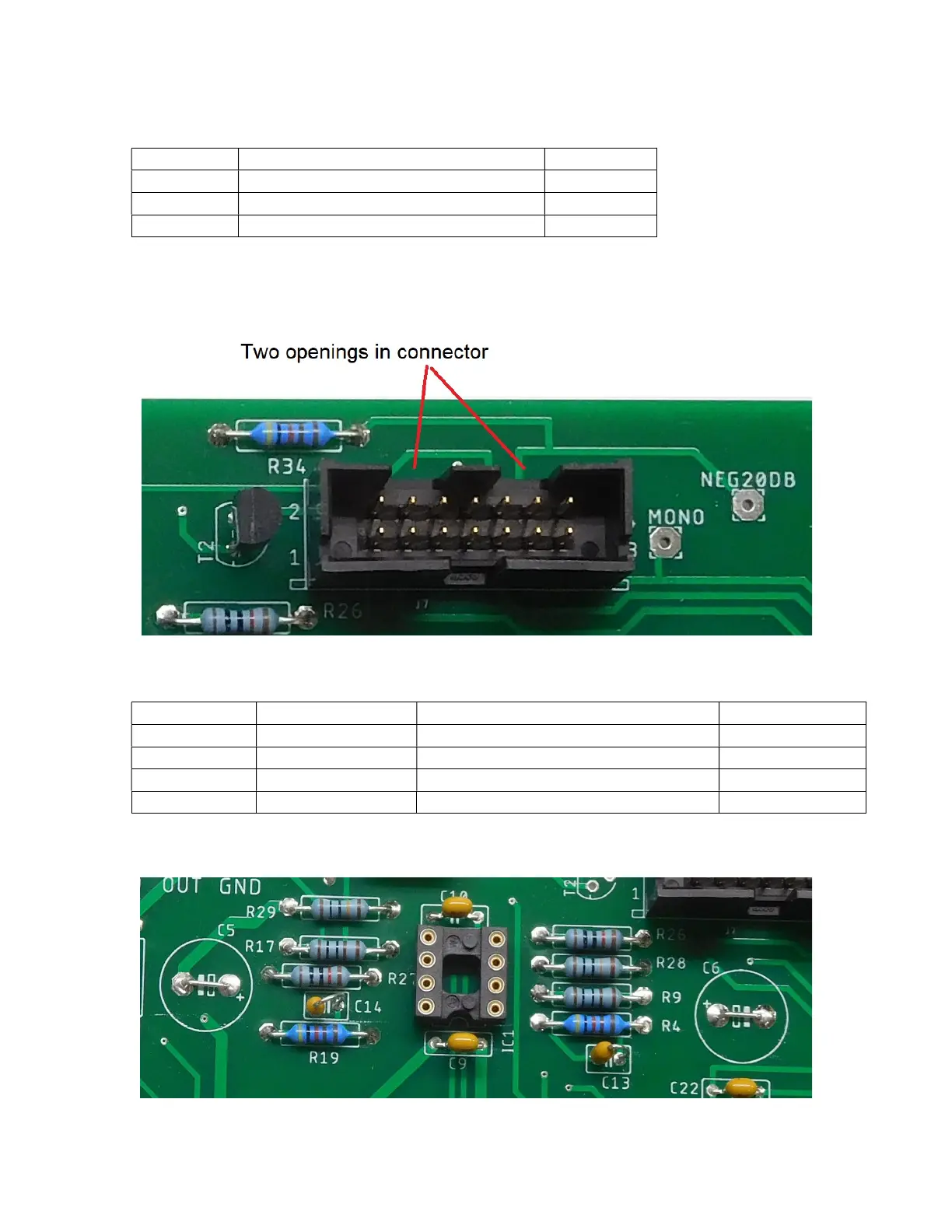

Figure 40-Completed Tone/Volume Board
Section 8: Preliminary Final Assembly
Wire and install the front panel input connector
Identify the shielded cable that originates at TB7 and TB8 of the input selector PCB.
Solder the free end to one of the 1/8” phono jacks, connecting the wires as shown in
Figure 41.
Figure 41-Connecting wires to front panel (FP) 1/8" phono jack
Insert the jack into hole marked “Front Panel”. Secure it with the provided nut, per the
detail in Figure 42. The orientation of the jack is not important.
