Section 6: Assembling the Input Selector Board
Carefully empty the contents of the envelope marked “PR-101 Input Selector” into a
broad soup bowl. Note that the envelope may also say PR-102 Input Selector. This part of
the design did not change between the PR-101 and the PR-102.

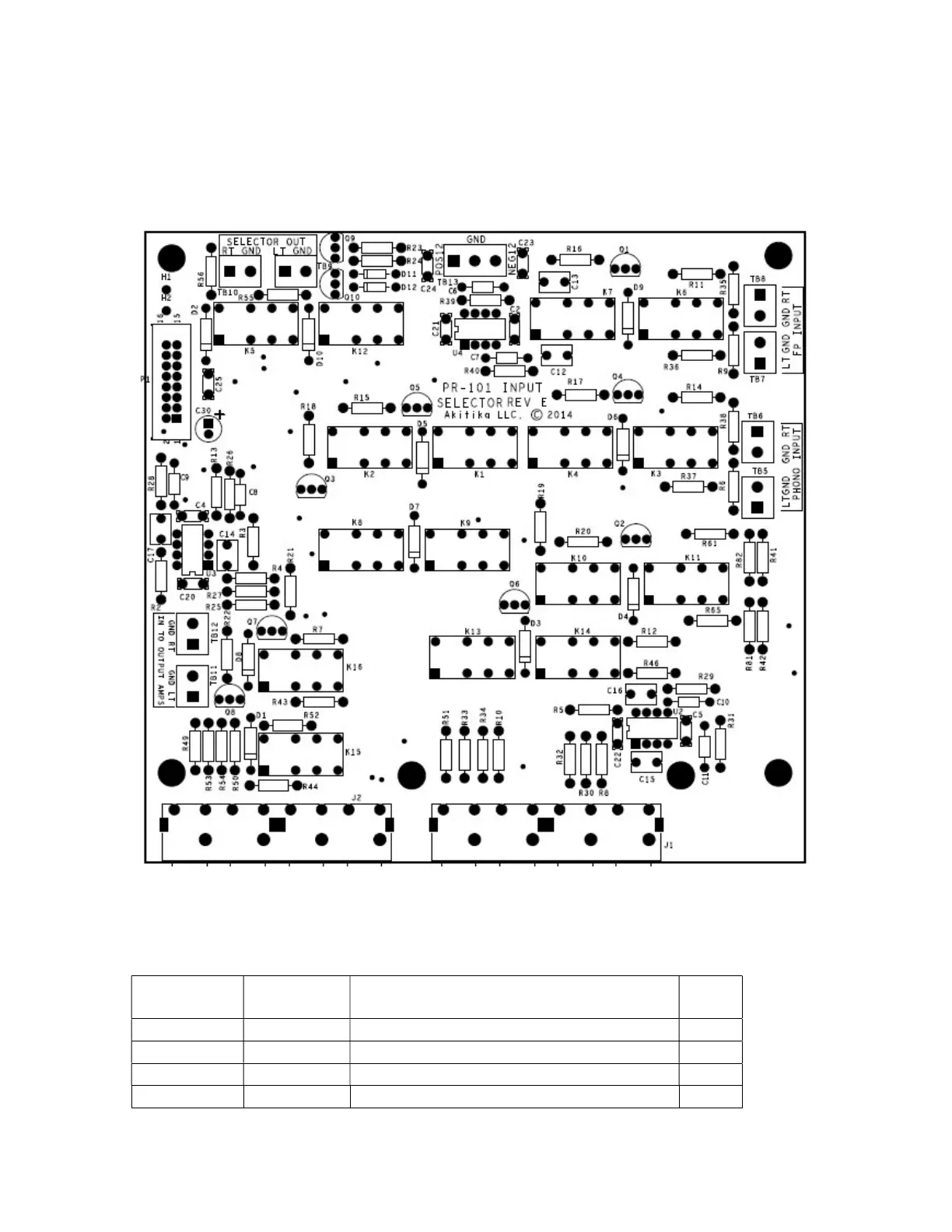

Figure 30-Silkscreen side of the Input Selector Board shows component locations
Install the Resistors
Install the resistors using the same procedures outlined in the previous section. If you’re
using a lead bending jig, all the resistors should be bent at a width of 0.45”.
Designation Value Color Code Done
Brown, black, black, orange, brown
Brown, black, black, orange, brown
Brown, black, black, orange, brown
Brown, black, black, orange, brown
To Next Page
