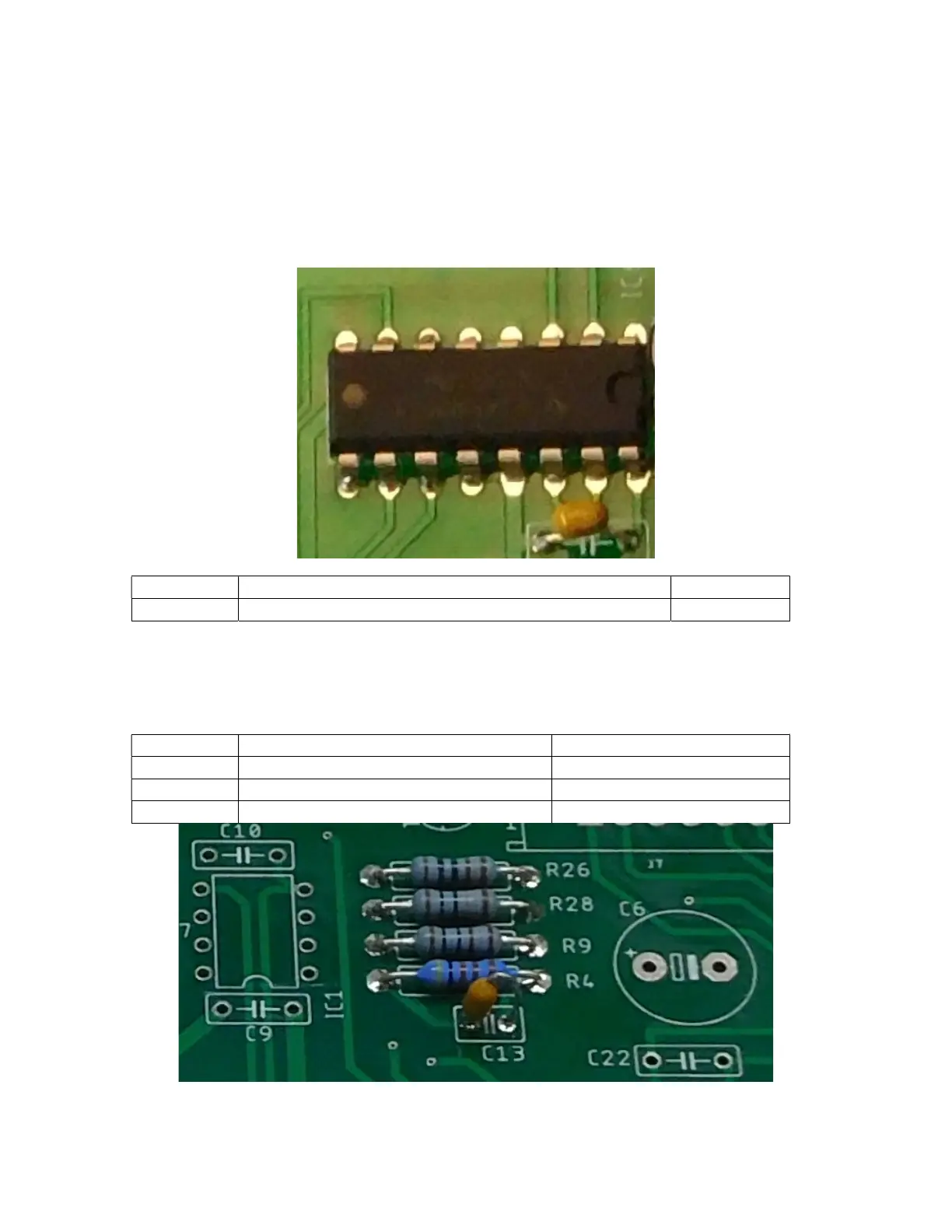

Install Q1, matching its shape to the silk-screen outline.
Q1
2N3904
8
NPN transistor, TO
-
92 case
Install the Control Cable Connector
Looks at this drawing CAREFULLY to be sure that you’re putting P5 in correctly! These
three things show the odd-numbered side of the connector:
1. Centrally located notch in the long side
2. notches in the short sides are closer to the odd-numbered side of the connector
3. AMP is visible at the bottom of the centrally located notch
Study this drawing and the connector until it’s clear which side is the odd pin side of the
connector, then match it to the odd pin silk screen on the PCB. Solder two corner pins
and make sure that you’re right one more time before you solder the rest of the pins.
Figure 37-Identify pin 1 for proper connector installation
Designation Value Description Done

P5
10 pin
5 x 2
Install the Motor Pots
Prepare a long and a short piece of 26 AWG solid wire according to Figure 38.
Figure 38-Motor POT wire preparation
Designation
Length D
Done

POT1 Long Wire
5/8”
Solder one end in the
upper motor terminal.
POT1 Short Wire
½”
Solder one end in the lower motor terminal.
8
Was MPSA06 in earlier versions of the PR-101.
