AkitikA PR-101 - Install the Infrared Detector; Figure 26-Bending the IR Detector Leads and Setting the Mounting Height

Page 36 of 68
Use the same method to insert and solder in the rest of the switches.
Designation
Description
Done

SW3
Normally open push button switch
SW4
Normally open push butto
n switch
SW5
Normally open push button switch
SW6
Normally open push button switch
SW8
Normally open push button switch
SW9
Normally open push button switch
SW10
Normally open push button switch
Install the Infrared Detector

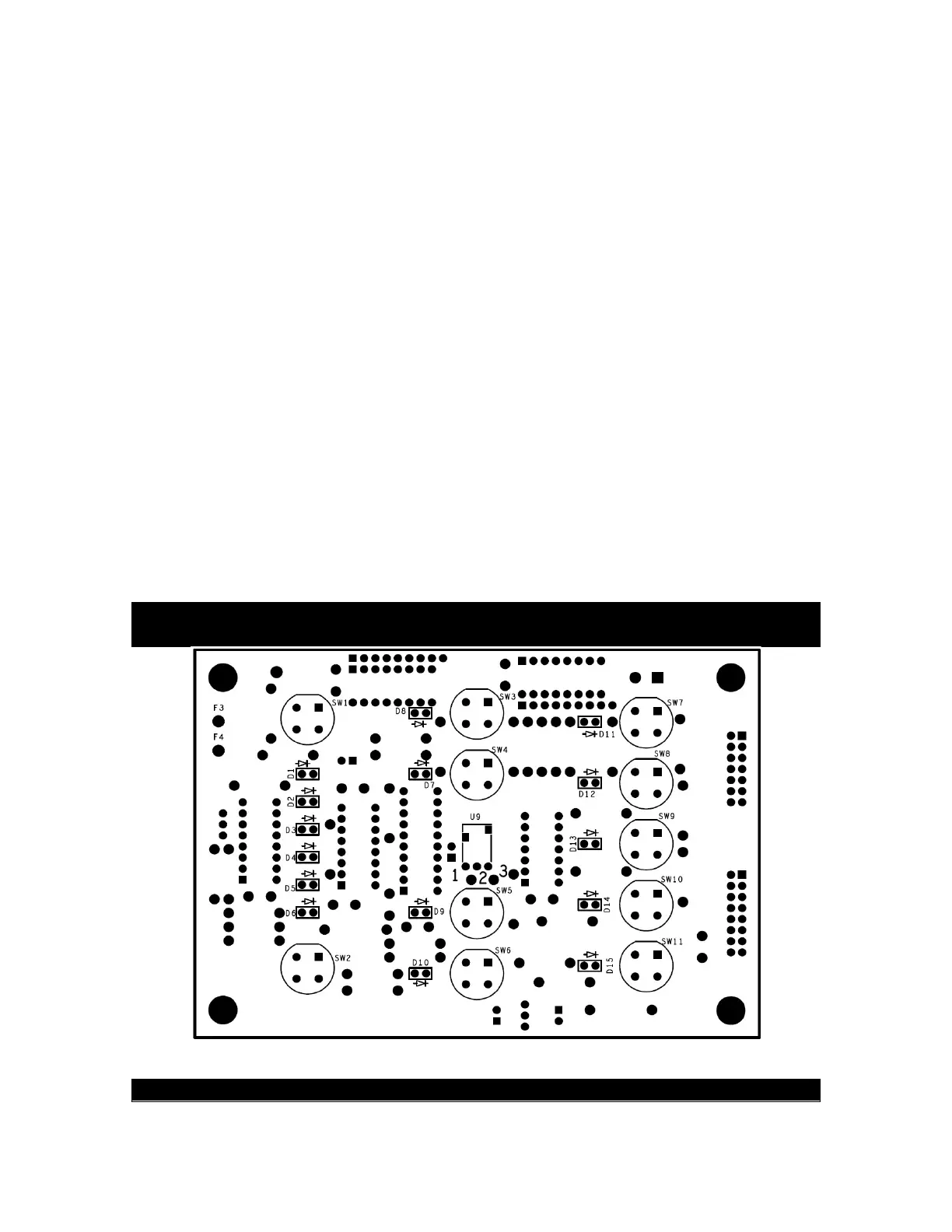

The infrared detector is installed on same side of the controller board as the push button
switches.
U9
TSOP32238
3
IR Detector
Use C2 (not yet installed, 2200 pF film capacitor marked 2n2K63) as a guide to forming
the bend in the leads as shown in Figure 26. This places the center of the bent leads about
0.1” from the edge of the IR detector body.
Figure 26-Bending the IR Detector Leads and setting the mounting height
Insert the IR detector on the same side as the switches, and solder the three leads on the
other side of the controller PCB. You can set the height perfectly by temporarily placing
C2 underneath the IR detector. The spacing isn’t critical, but if you set it too high off the
board, it will bump into the IR window in the front panel. The top surface of the IR
detector should be about 0.3” off the PCB.
3
Earlier versions of the PR-101 used P/N TSOP39238. That part came in a holder that was removed and
discarded.
