AkitikA PR-101 - 12 Volt Power Wires

Page 25 of 68
12V ground wire install
ation
Done? (

)
Twist and tin the bare end of the 10” ground wire.

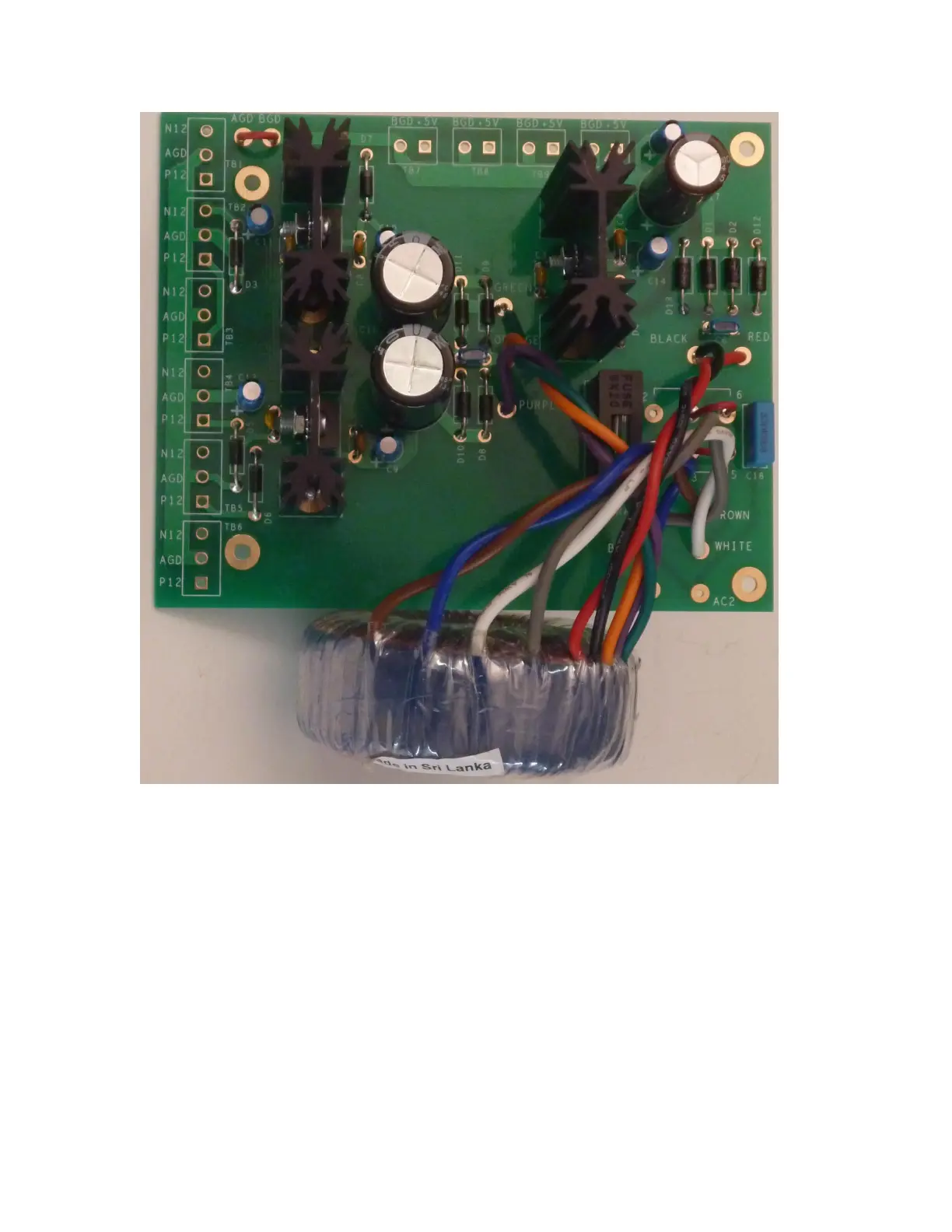

Insert the tinned 10” ground wire from the bottom of the power supply
board into the center TB4 hole, marked AGD and solder it on the top side.
Twist and tin the bare end of the 8” gro
und wire.
Insert the tinned 8” ground wire from the bottom of the power supply board
into the center TB3 hole, marked AGD and solder it on the top side.
12 Volt Power wires
Locate the thicker gray jacketed cable. Note that there is also thinner gray jacketed cable.
Find both and compare them to make sure you really have the thicker gray jacketed
cable.
Now that you’re sure you have the thicker gray jacketed cable, beneath the gray jacket
you’ll find:
 Red 18 AWG stranded wire
 Black 18 AWG stranded wire
 Foil shield
 Bare stranded 18 AWG drain wire
 Fuzzy string
Prepare an 8” length and a 10” length per the following diagram:
Cut and remove the drain wire from both ends. Remove the foil shield. Cut the fuzzy
string. See Appendix 1 for hints on preparing the gray jacketed wires.
Plus and Minus 12V power wire installation
Done? (

)
Twist and tin the bare end of the 10” red wire.
Twist and tin the bare end
of the 10” black
wire.
Insert the tinned 10” red wire from the bottom of the power supply board
into
the TB4 hole marked P12 and solder it on the top side.
Insert the tinned 10” black wire from the bottom of the power supply board
into the
TB4 hole marked N12
and solder it on the top side.
Twist and tin the bare end of the 8” red wire.
Twist and ti
n the bare end of the 8” black wire.
Insert the tinned 8” red wire from the bottom of the power supply board
into the T
B
3 hole marked P12 and solder it on the top side.
