Page 22 of 80
Locate the black switched power harness. It has black wire with 2 FASTONs.
1. Connect the blue 0.187” wide FASTON to the switched outlet contact closest to
the chassis wall.
2. The black 22 AWG wire will connect to the power supply PCB in a later step.
3. Route the long 18 AWG black wire with the red 0.25” wide FASTON towards the
front of the chassis, but don’t connect it yet.

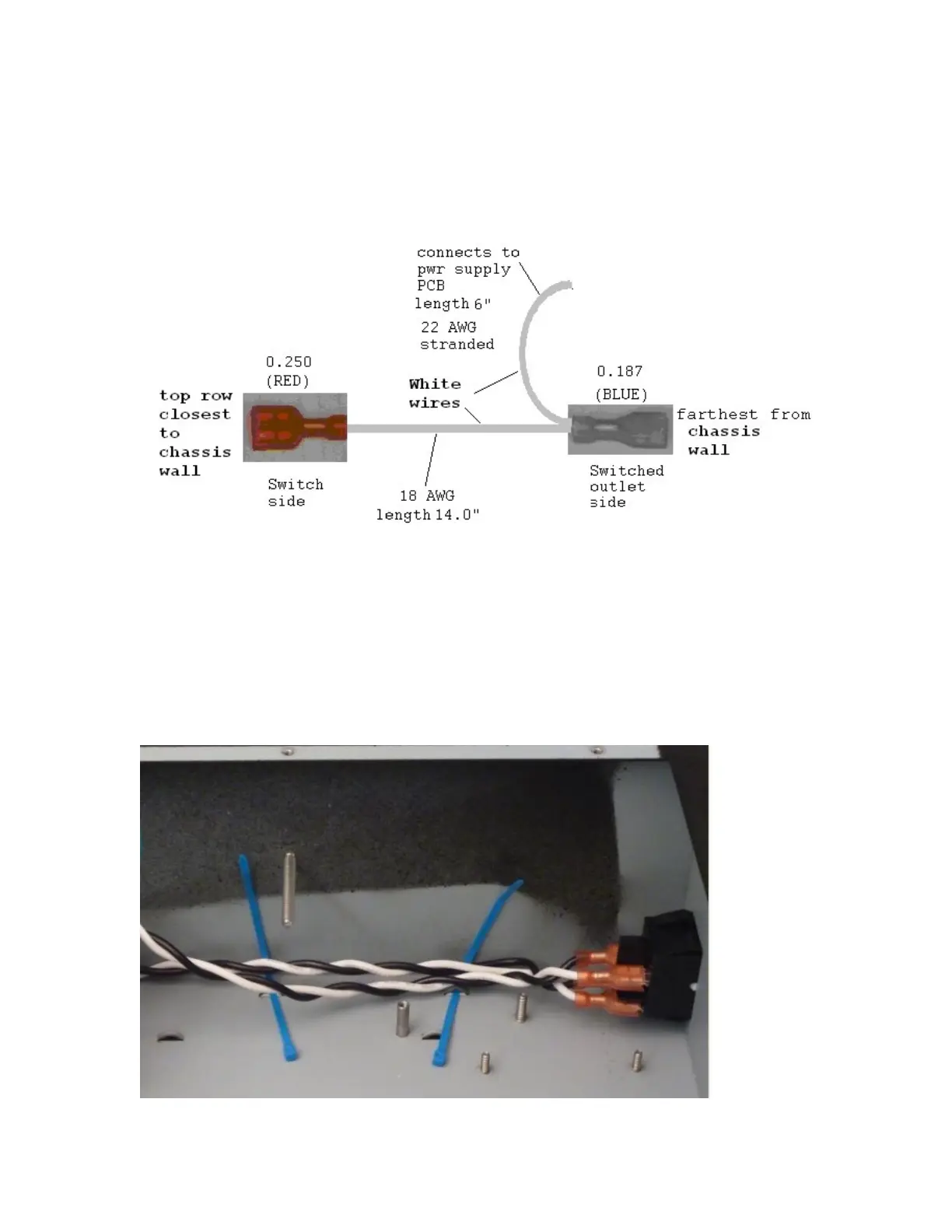

Locate the white switched power harness. It has white wire with 2 FASTONs.
4. Connect the blue 0.187” wide FASTON to the switched outlet contact farthest
from the chassis wall.
5. The white 22 AWG wire will connect to the power supply PCB in a later step.
6. For now, leave the remaining long end with the FASTON connector loose.
7. Twist the white and black wires from steps 3 and 6 together to form an insulated,
twisted pair. About 1 twist per inch will take up enough length so that there’s only
a little bit left to tuck into the corners.
8. Lay the twisted pair over the cable tie and the existing twisted pair. Form the
wires into the corner of the chassis.
