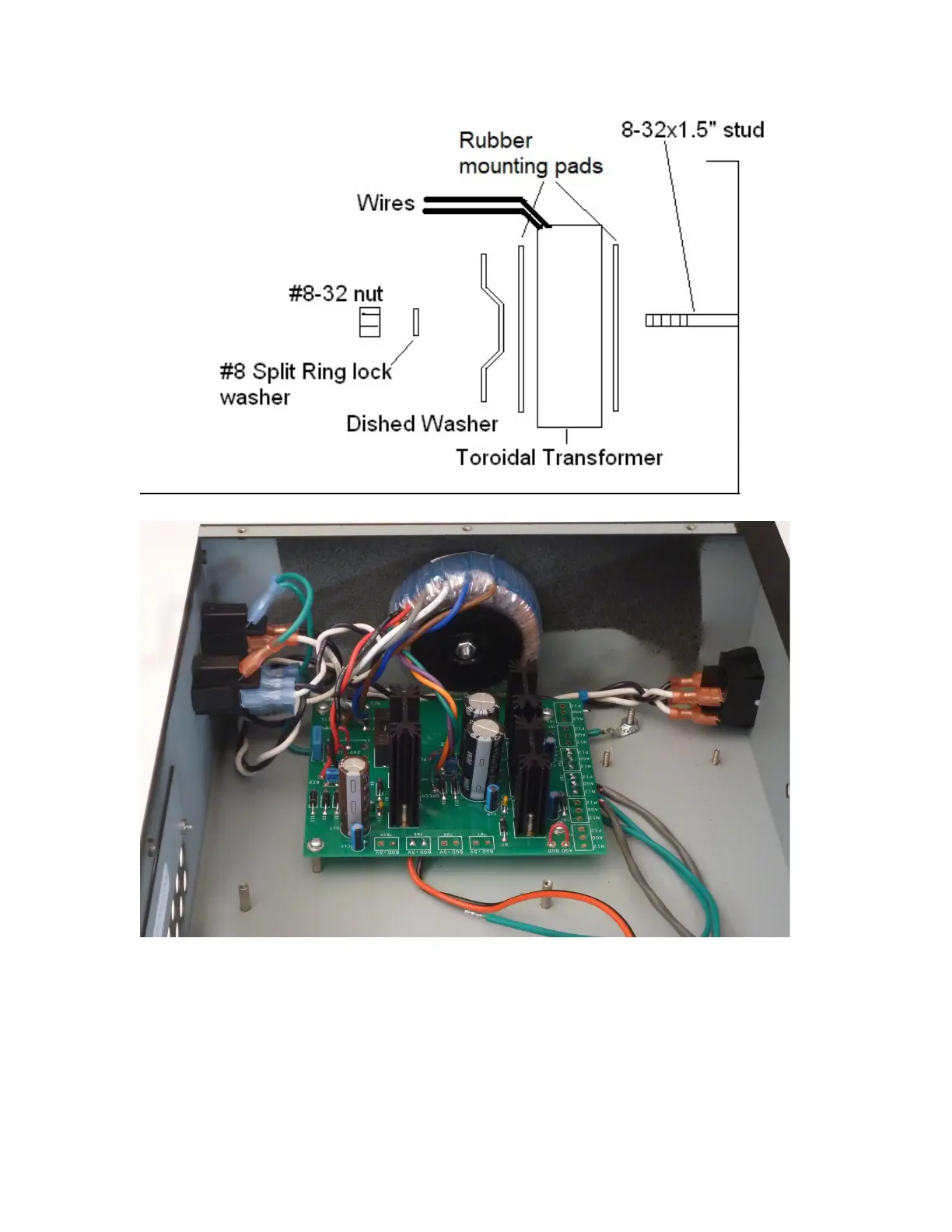

Figure 19-Fasten the transformer to the preamp right side wall
Figure 20-Power Supply assembled and installed
Prepare to Test the power supply
Make sure that none of the unconnected ends of the power supply can contact any other
wire. That’s why we left the unconnected ends with their insulation in place. If you have
any doubts, individually tape the unconnected ends to prevent any possibility of short
circuits.
