Page 72 of 80

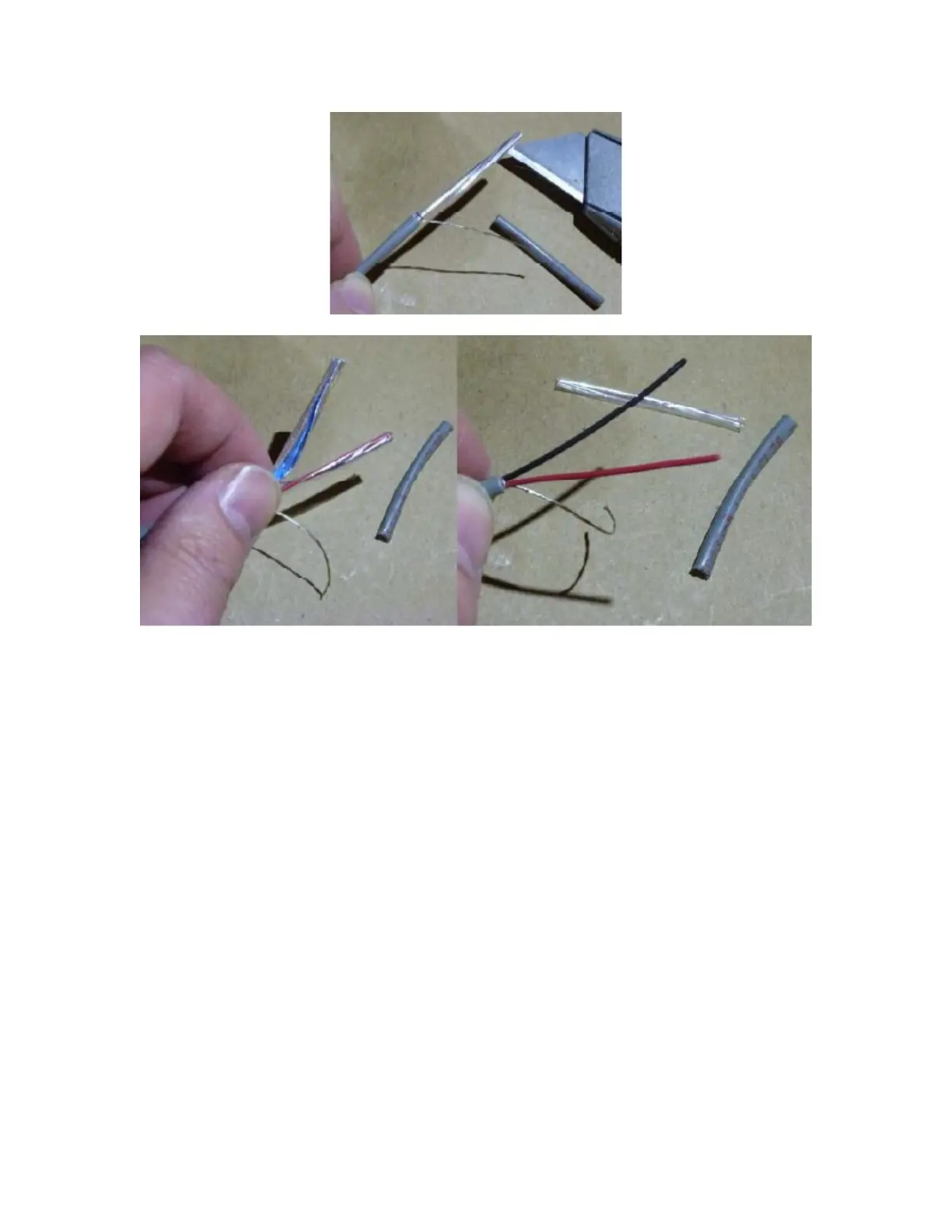

5. Separate and twist the drain wire.
6. Peel back and remove the foil. Remove the plastic wrap from the red and black
wires. The drain (bare wire), red, and black wires are exposed now that gray
insulating jacket, foil shield, and plastic over-wrap have been removed.
7. Save the gray outer jacket as it will be used (perhaps cut to half length) to insulate
the bare drain wire.
