Parts of the radio and their use

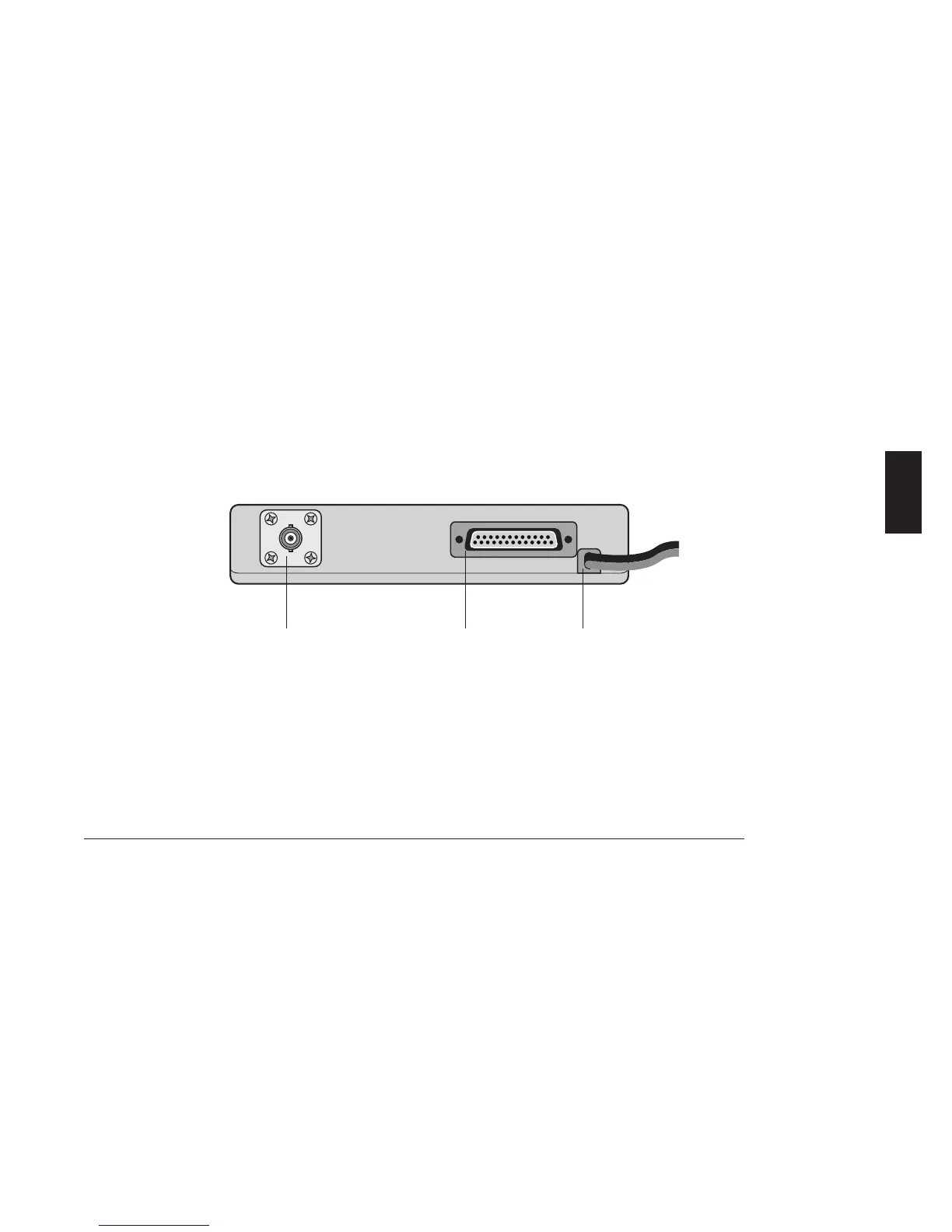

3.2 Rear panel
[9] Power cable – this red/black cable connects to a 13.8 Vdc
power source (red is positive and black is negative), for example
to the vehicle battery.
[10] Input/output connector – for connection to the external speaker
and for activation of external devices. For connections, refer to
Par. 13.1.
[11] Antenna socket - this SO 239 (UHF) socket is for connecting
a suitable antenna. Another option is to use a BNC-type con-
n
ector. For further details, please contact your local vendor.
