7 — B-0404-A unit data sheet
7-4 March 2011 Alcatel-Lucent 7330/7302 ISAM FTTN R04.02.42a
ONT Product Information Guide Edition 01 3FE 54199 AAAA TCZZA
7.4 B-0404-A interfaces and interface capacity
Table 7-3 describes the supported interfaces and interface capacity.
Table 7-3 B-0404-A interface connection capacity

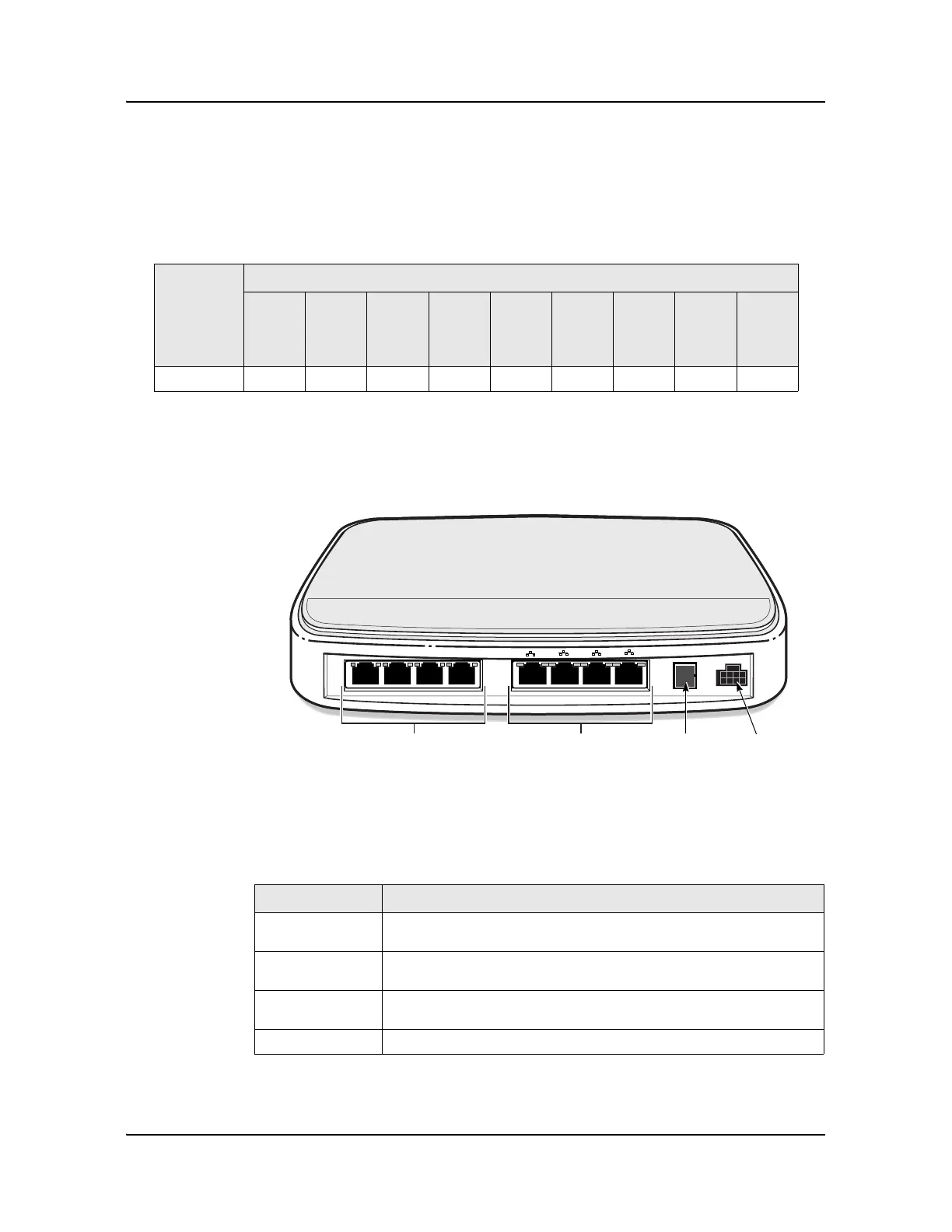

Figure 7-1 shows the B-0404-A physical connections for the interfaces.
Figure 7-1 Physical connections for the B-0404-A
Table 7-4 describes the B-0404-A physical connections.
Table 7-4 B-0404-A connections
ONT type
and model
Maximum capacity
POTS 10/
100
BASE-T
10/
100/
1000
BASE-T
RF
video
(CATV)
MoCA VDSL2 E1/T1 Local
craft
GPON
SC/APC
B-0404-A 004000401
Connection Function
E1/T1 connections There are up to four E1/T1 ports supporting structured, unstructured, and
fractional E1/T1 through RJ-48C connectors.
Ethernet
connections
(1)
There are up to four Ethernet port supporting 10/100/1000Base-T Ethernet
connection through Ethernet RJ-45 connectors.
PON optical
connection
This connection is provided through an SC/APC connector for the physical
interface to the PON.
Power connection A terminal is provided to connect an external –12 V dc UPS to the ONT.
1
2 3
4
PON
LINE 1
LINE 2
LINE 3
LINE 4
UPS
Ethernet ports
(RJ-45)
Power
connection
E1/T1
(RJ-48C)
19868
Fiber optic
port
