8 — I-010G-A unit data sheet
8-8 March 2011 Alcatel-Lucent 7330/7302 ISAM FTTN R04.02.42a
ONT Product Information Guide Edition 01 3FE 54199 AAAA TCZZA
Table 8-11 I-010G-A indoor ONT interfaces
ONT SoC technology is an integrated system that provides the GPON, voice, and
data (including IP video) subsystems. It provides two key connection functions:
connecting the ONT to the GPON and the connecting the ONT to subscriber
equipment. The data and IP video subsystems support RJ-45 ports. The ONT
connects to the GPON using a optical connector.
The GPON connection performs a GPON transmission convergence (TC) layer
function. The GPON signal from the P-OLT terminates at a diplexer. The diplexer is
an optical module that performs optical and electrical conversion. The diplexer
interfaces with the GPON MAC on the SoC. Figure 8-3 shows an ONT with a
diplexer, four POTS, and two Ethernet ports.

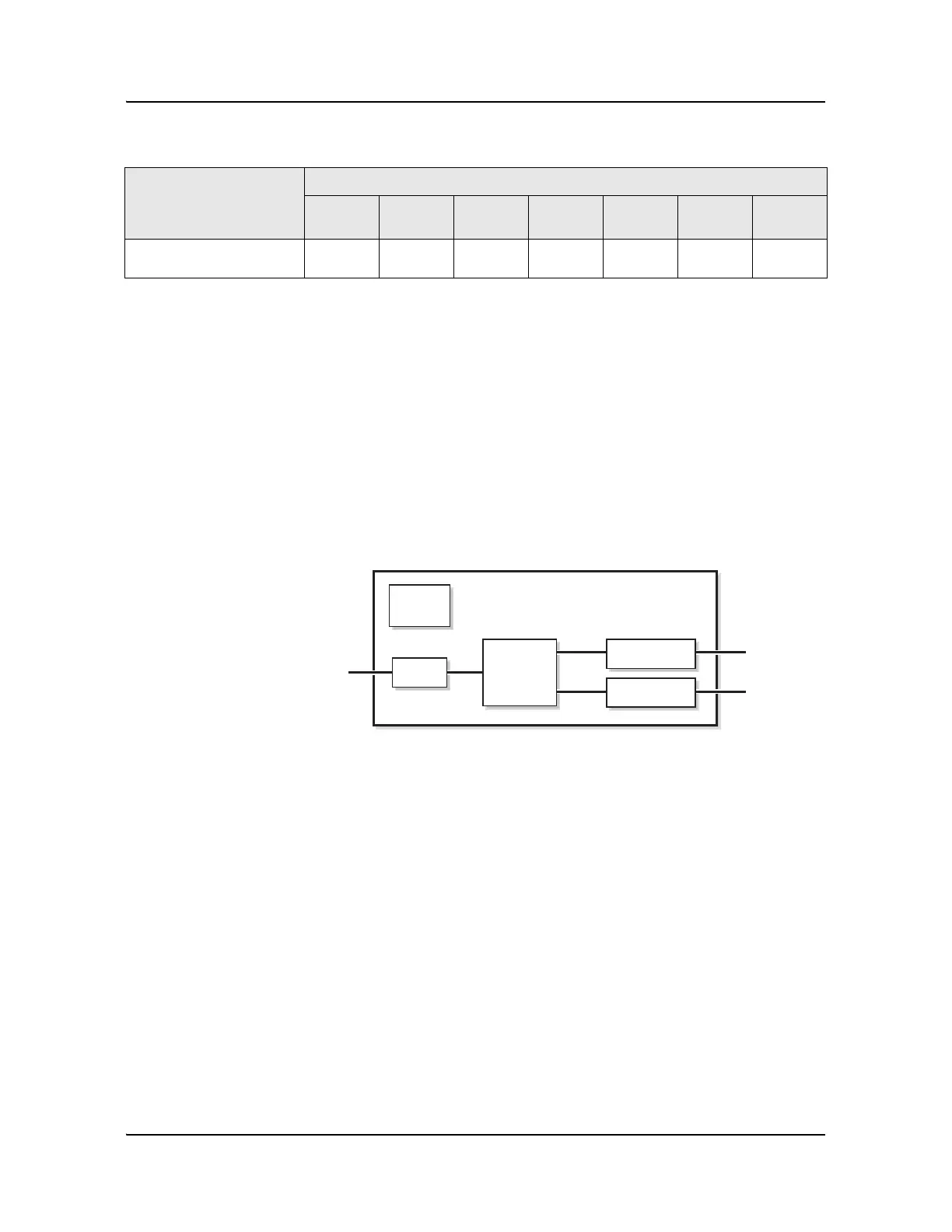

Figure 8-3 ONT with a diplexer
ONT SoC technology serves as the main hardware block for the I-010G-A ONTs;
see Figure 8-4.
ONT category description Interface capacity
POTS
ports
Ethernet
ports
VDSL2 MoCA RF Video HPNA Wi-Fi
Single-residence ONTs
(I-010G-A indoor ONTs)
—1—————
Power
Converter
SOC
POTS (4)
Ethernet (2)
RJ-11
RJ-45
18783
Diplexer
GPON
