Alcatel-Lucent M7 - Connector Descriptions

20/91
Getting to know your telephone
8AL90382ENAA ed03

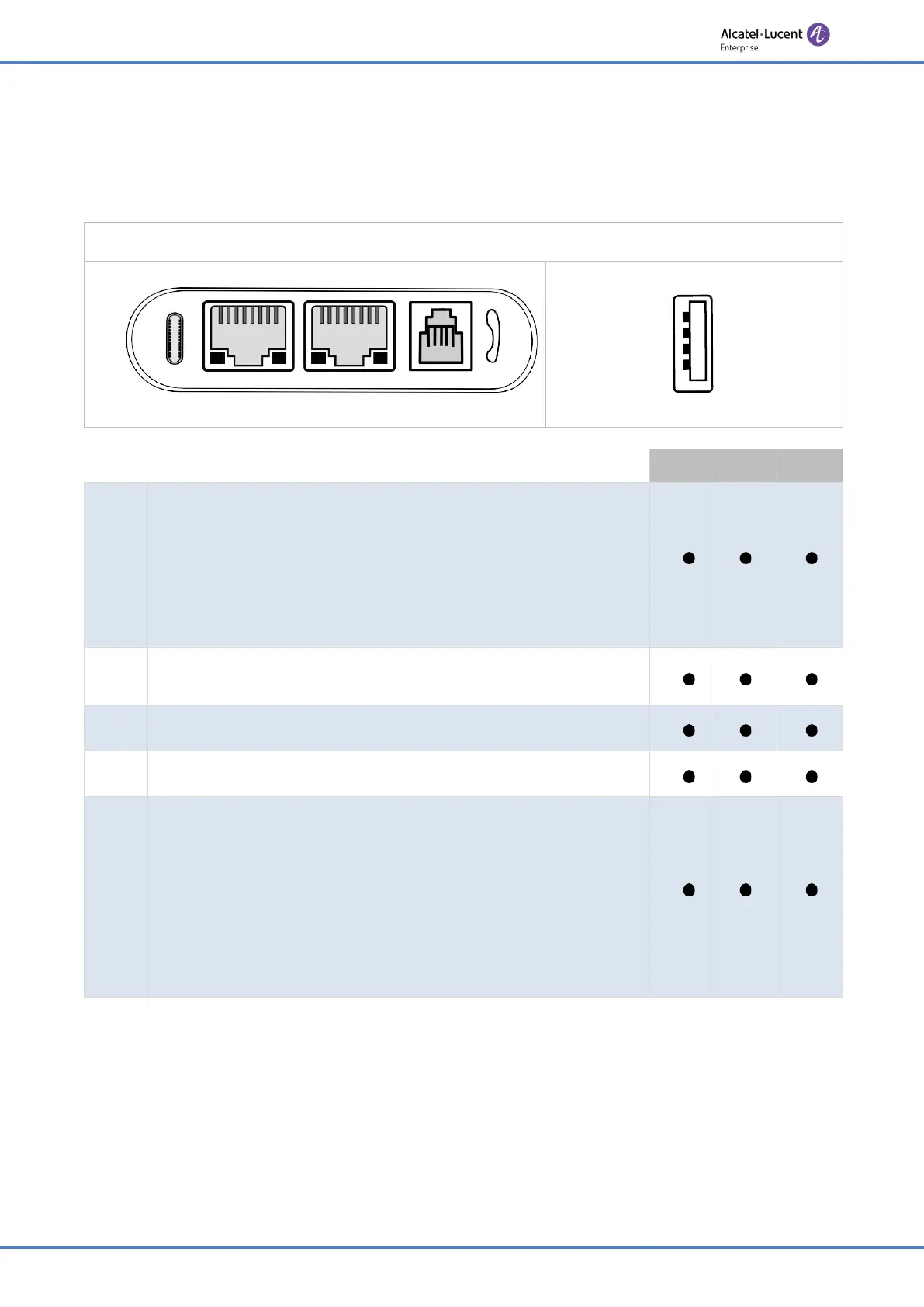

2.11 Description of the connectors
Various connections to allow phone extensions. The type of connectors you have depends on
your phone.
M7, M5, M3
1 2 3 4
LAN PC
5
M7 M5 M3
1
Universal Serial Bus (USB-C)
connector This connector is used
for:
• Connect the power adapter.
• Connect a headset.
• Connect a PC to use the desk phone as an audio hub
2
10/100/1000 Mbps Ethernet connectors to the enterprise
network (LAN - RJ45).
3
10/100/1000 Mbps Ethernet connectors to a PC ( RJ45 ).
4
Wired handset connector (RJ9)
5
Universal Serial Bus (USB-A)
connector This connector is used
for:
• Connect a USB headset.
• Connect an add-on module.
• Connect a W i- Fi dongle*.
•
Connect a PC to use the desk phone as an audio hub.
*To know the supported dongle, please refer to the Alcatel-Lucent Enterprise website or
contact your administrator.
