Chassis and Power Supplies OmniSwitch 6900 Chassis
OmniSwitch 6900 Hardware Users Guide June 2020 page 3-15

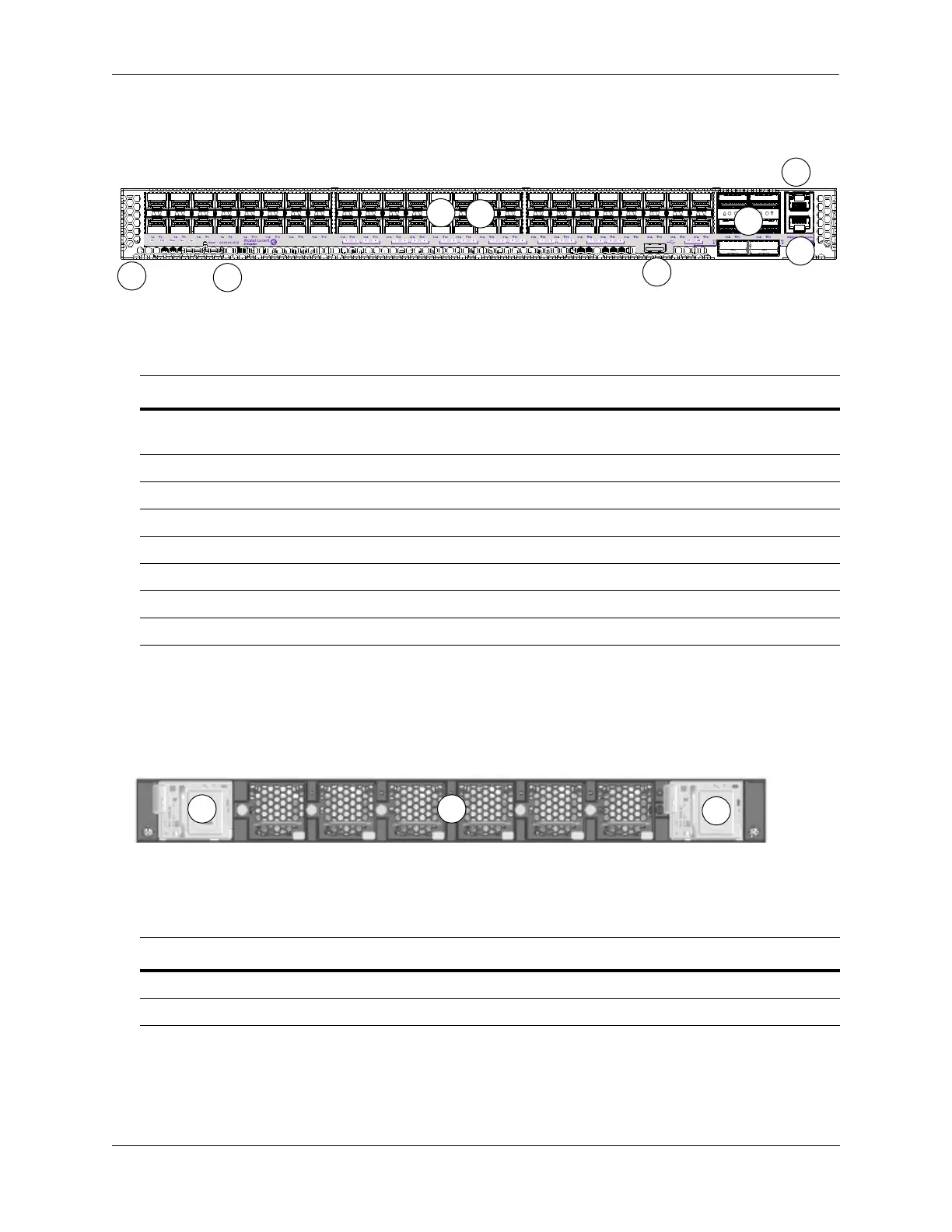

OS6900-V72 Front Panel
*Refer to page 3-25 for detailed information on port LED behavior.
OS6900-V72 Rear Panel
Item Description
A
USB Port (For information on using a USB flash drive, refer to the OmniSwitch AOS Release 8
Switch Management Guide.)
B
Port Status LEDs*
C
System Status LEDs*
D
SFP28 ports 1 through 48 (10G/25G)
E
QSFP28 ports 49 through 54: (4X10G/40G/4X25G/100G)
F
RJ45 10/100/1000 Ethernet Management Port (EMP)
G
Console Port
H
Reset Button (Used to reboot system)
Item Description
A
Power Supply Bays
B
Fan Trays
