Chassis and Power Supplies Replacing the Fan Tray
OmniSwitch 6900 Hardware Users Guide June 2020 page 3-59

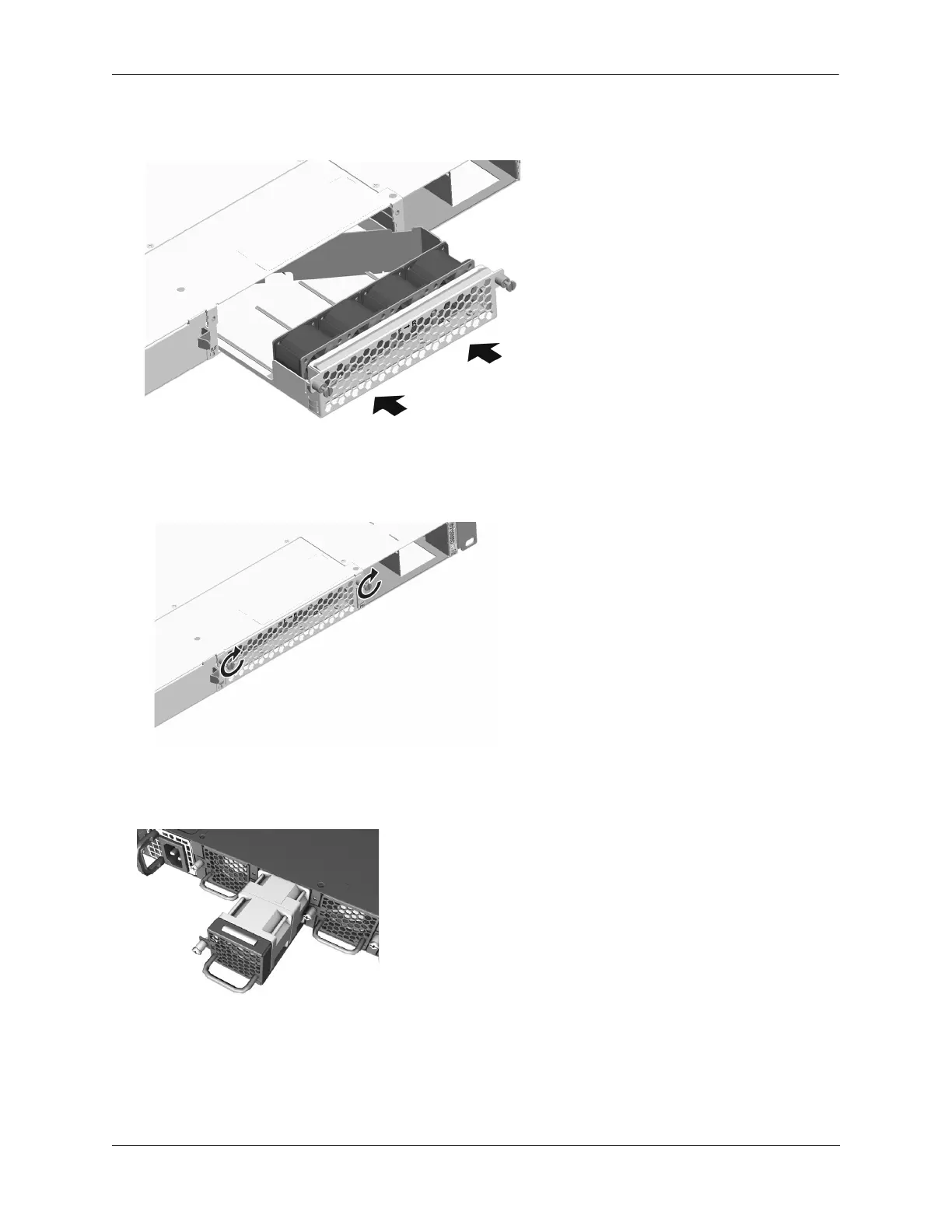

3 Insert the tray into the chassis slot and slide it straight back until it meets the chassis backplane connec-
tors.
4 When the fan tray is firmly seated in the chassis, tighten the two captive screws at the left and right
sides of the fan tray’s front panel.
OS6900-V72/C32/X48C6/T48C6 (V72/C32 shown)
1. Loosen the captive screw.
2. Remove and replace fan tray.
3. Install new fan tray and tighten captive screw.
