NOTE:
- Always empty the grass collection bag (16)
before it has reached its maximum capacity.
- Do not leave grass clippings in the grass
collection bag (16) for extended periods of time.
Installing the side discharge chute (22) and
mulching block (21) for mulching function
The side discharge chute (22) is used to distribute
grass clippings from the side of the mower while
the mower is in use. To use this function, the
grass collection bag (16) is NOT required to be
assembled on the lawn mower.
1) Remove the grass collection bag (16) if it is tted.
Refer to Removing / Emptying the grass collection
bag (16).

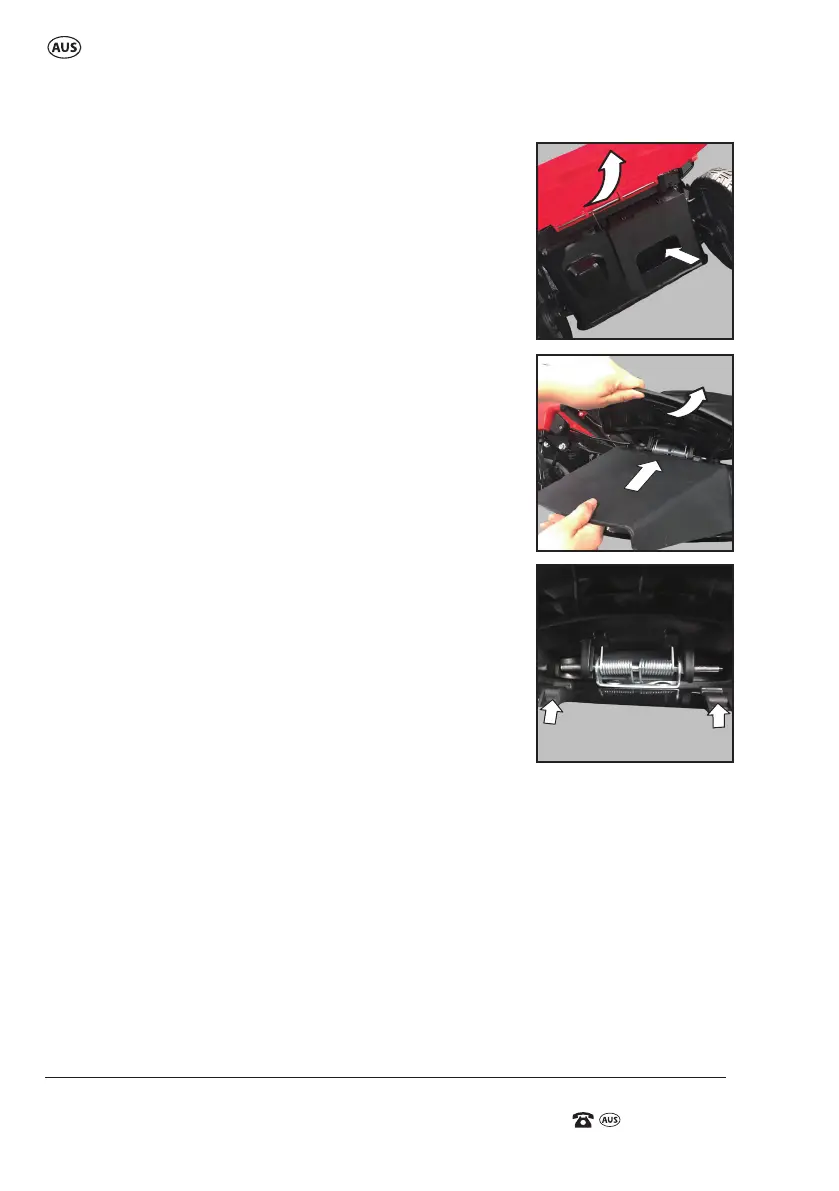

2) Raise the rear discharge guard (15) and hold
it up, insert the mulching block (21) into the rear
chute. Ensure the mulching block (21) is secured
into position. (See Fig. E1)
3) This side ejector has a lock to ensure it is secured
when not in use. Push the lock tab in an upwards
direction to disengage the lock, then using your
other hand, lift up the side ejector cover (12),
attach the side discharge chute (22) onto the side
of the deck (See Fig. E2). Align and place the 2 top
tabs underneath the 2 bars as shown in Fig. E3.
4) To remove, raise the side ejector cover (12),
and remove the side discharge chute (22) by
disengaging the 2 tabs from the 2 bars.
E3.
E1.
E2.
