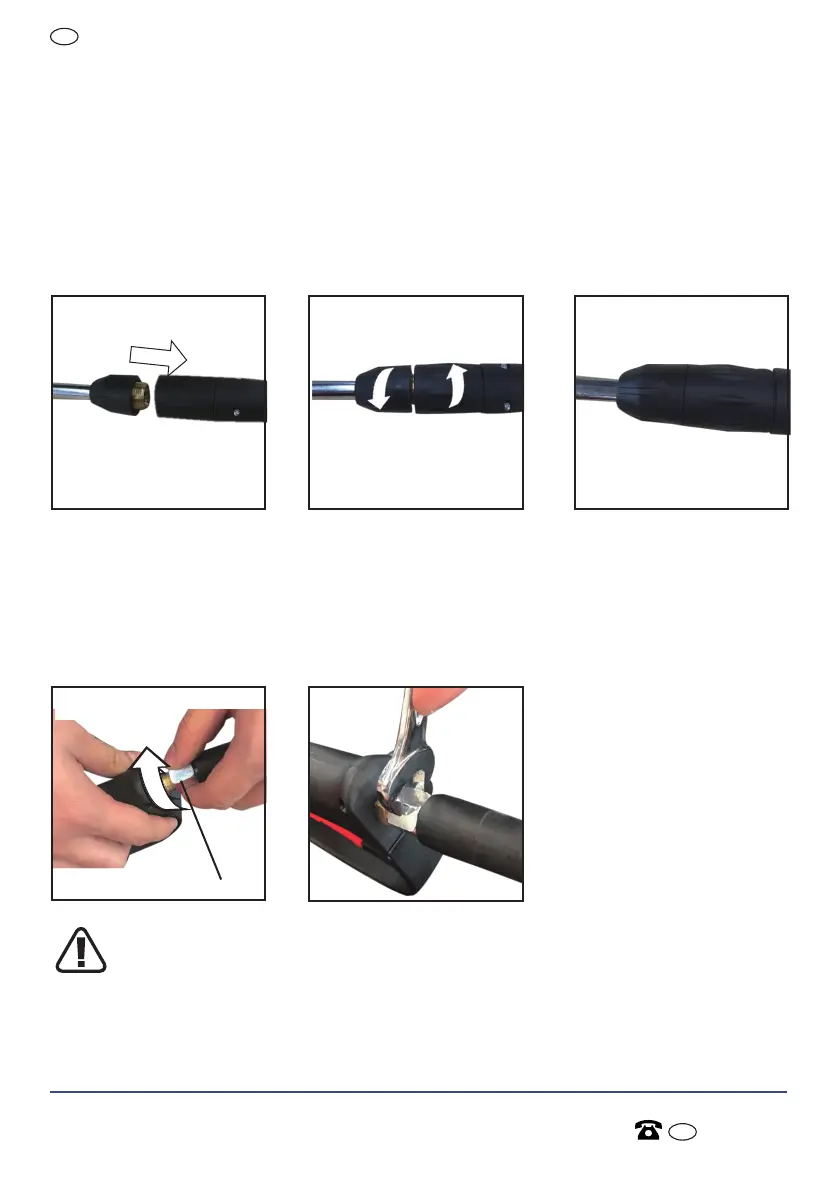

Installing the gun lance (16) to the spray gun (19)
(see fig. G1-G3)
1) Align the gun lance (16) and attach it to the spray gun (19).
2) Rotate the collar in the opposite direction which is separately
located at the end of the gun lance (16) and the spray gun (19) as
shown in fig. G2, until the two parts are connected tightly.
3) Check to see if the spray (19) is securely installed.
Attach the 10m pressure hose (6) to the spray gun (19)
(see fig. H1, H2)
Uncoil the 10m pressure hose (6), then attach the hose outlet (e)
to the base of the spray gun (19). Turn by hand clockwise first,
then tighten it with the supplied small wrench (33) .
WARNING: Always stop the engine before undertaking any
assembly or maintenance.
