Assembly
This generator has been designed to be used as
a stand alone / compact generator or a larger
portable / wheeled type generator.
Compact Stand Alone Assembly
Assembly of the Feet
NOTE: These 4 feet (28) can be fitted even if the
generator will be fitted with the wheeled option.
WARNING: Ensure the engine is switched
off while undertaking this task.

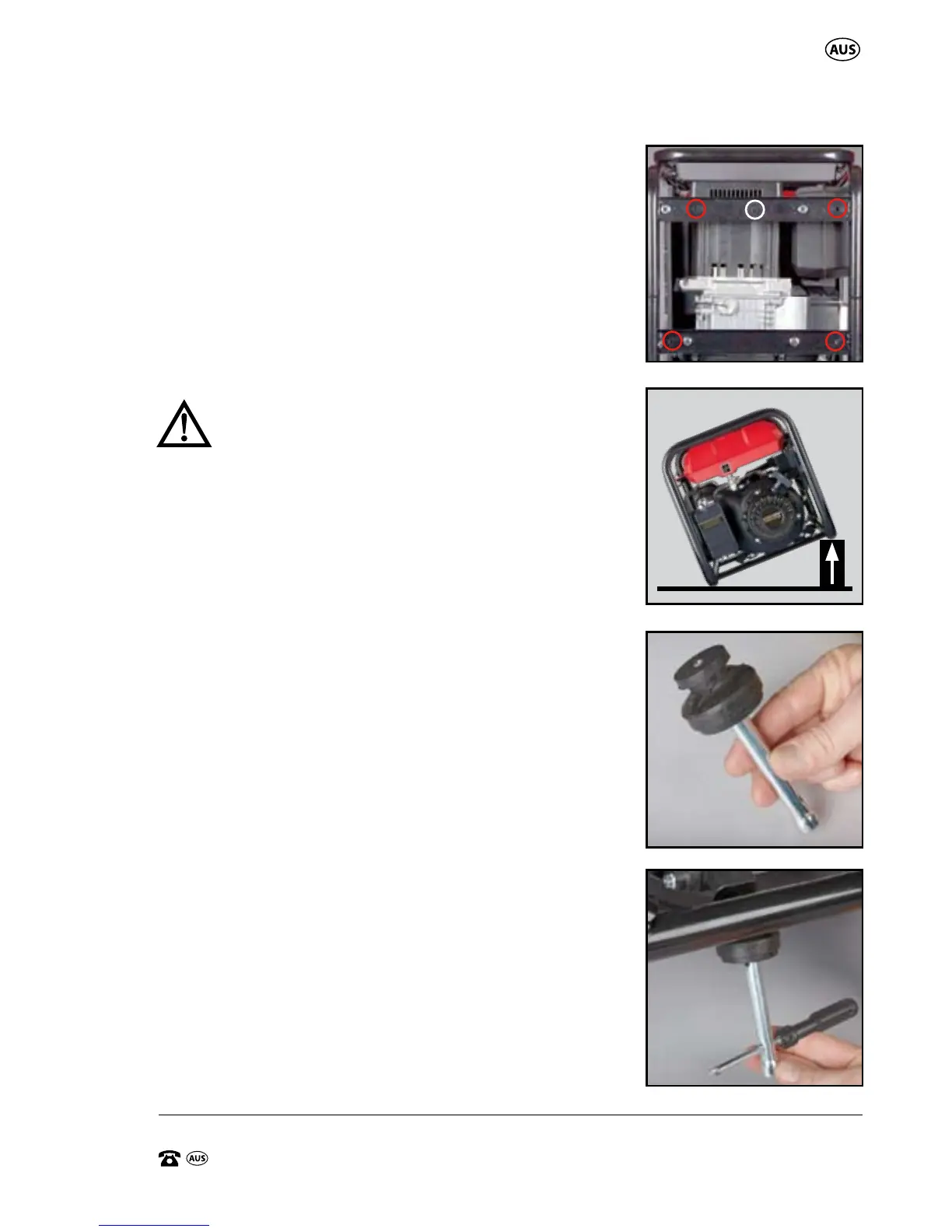

This generator is supplied with 4 feet (28)
which require the following assembly on the
generator (within red markers) (Fig A):
1. Place the generator on a flat and level surface and
then raise one side of the generator by placing a
wooden block (or something similar) underneath
the frame (Fig B) so the generator is slightly raised
and allows you access to be able to add the
feet (28).
WARNING: Do not turn the generator upside
down or place the generator on its side. Ensure
the generator is stable and cannot topple.
2. Insert the supplied hex head screw through the
bottom of the foot so it comes out the opposite
side.
Insert the supplied 10mm tube spanner (30), into
the bottom of the foot to securely hold the hex
head screw in place, (Fig C) then place the foot
underneath the hole in the bottom frame and
push through to the upper side (Fig D).
B.
A.
Threaded wheel
foot hole
C.
D.
