3. With the supplied 10mm tube spanner (30) still
holding the hex head screw securely in place,
apply the flat washer, spring washer, then the nut
to the top of the hex head screw and tighten in a
clockwise direction using the supplied multi-size
spanner (33) (Fig E).
4. Repeat the same process for the other 3 feet (28).
The generator can now be operated with the
generator sitting on the ground or operating
surface on the four rubber feet (28).
Portable Wheeled Type
Generator Assembly
This generator is supplied with 2 wheels to assist
with transportation, which require the following
assembly:
1. Remove the cover of the wheel by holding one of
the spokes of the outside cover on the wheel, and
pulling towards you until the cover disengages
and can be removed.
2. Insert the bolt through the outside of the wheel
through to the other side, then follow the bolt
through the hole in the corner frame of the
generator (Fig F).
3. Using the 21mm spark plug tube spanner (31)
to secure the bolt head in position, apply the
nut onto the end of the bolt and tighten in a
clockwise direction using the multi size spanner
(33) (Fig G). Repeat for the second wheel.

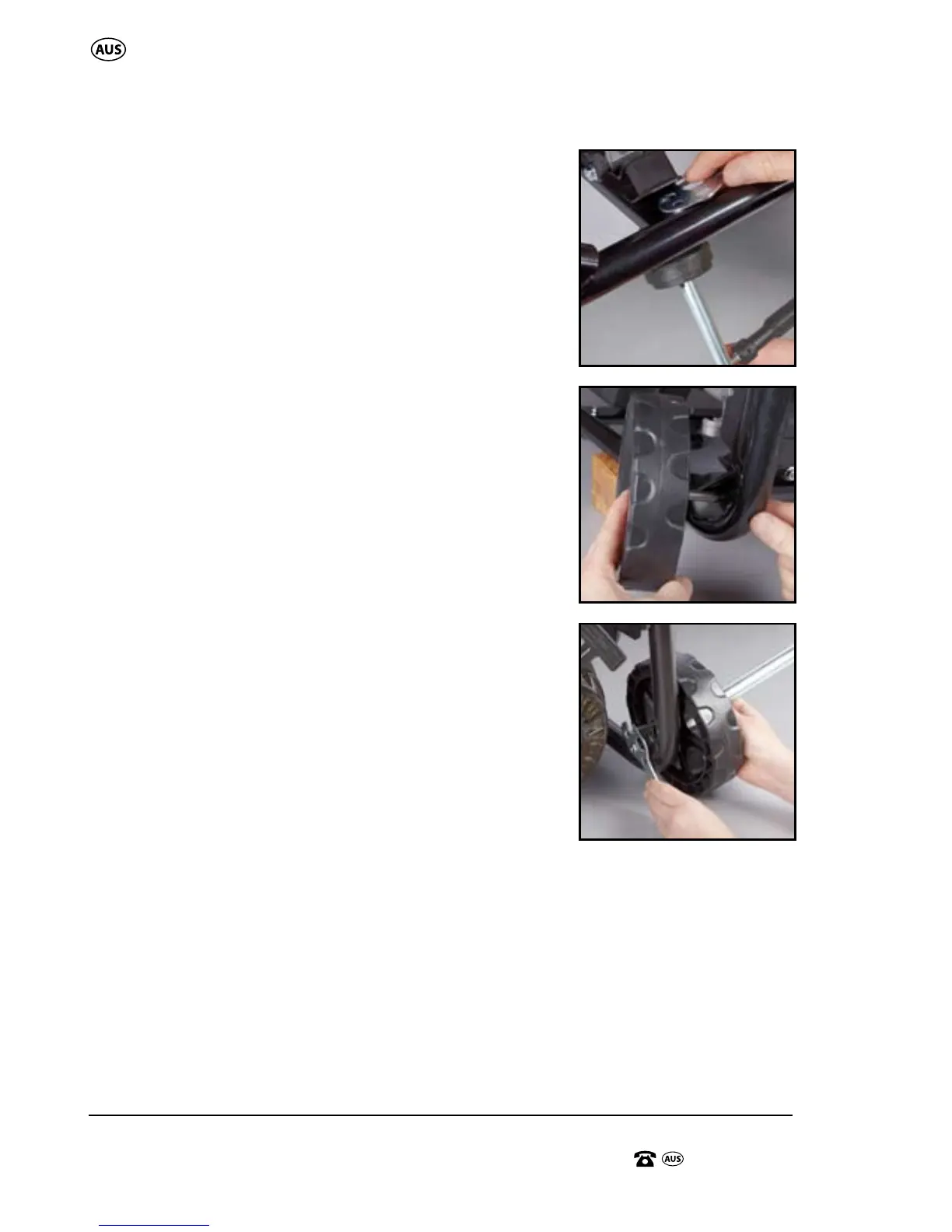

F.
G.
E.
General Assembly
