Alesis Vortex Wireless 2 Service Manual

38

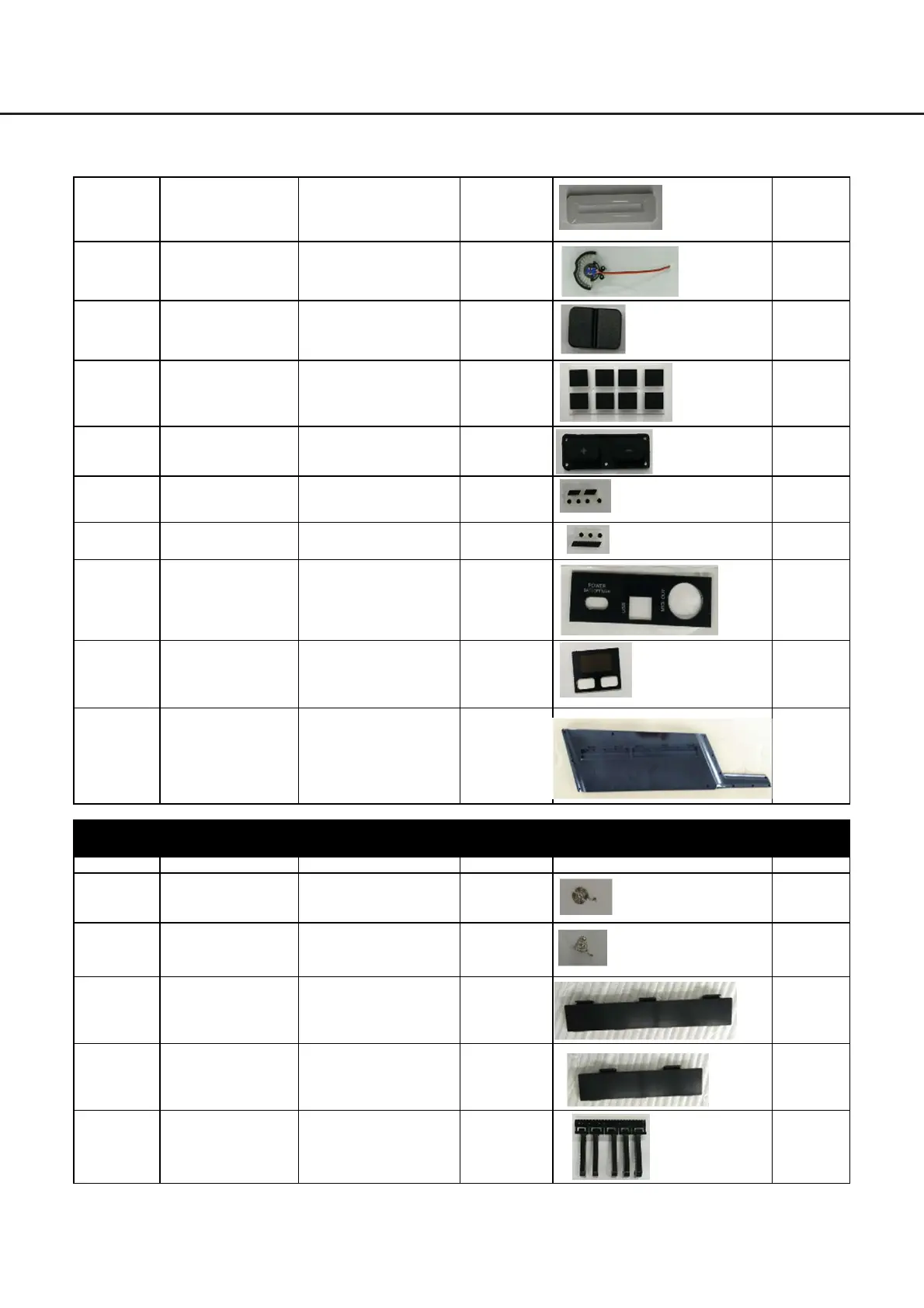

Spare Parts List
218010084
Fader Light Guide LQVL
DL-2334
PC material White plastic bag
toner: YS1801A
8pcs
1012401080 Pitch wheel ASSY LQVL 1set
299010129 Fader cap
ABS injection Pantone
process black C N/A
8pcs
629990394 Drum pad
Silica gel 30°Milk White 25%
opaque top side with black
silkscreen
1pcs
629020492 Rubber button
Silicone SA50 Milk White
painting Black Laser Etch
Graphics
1pcs
629020490 Rubber button
Silicone SA50 Milk White silk-
screen Black top
1pcs
629020491 rubber button 4 group
Silicone SA50 Milk White silk-
screen Black top
1pcs
642020080 IO PC
T=0.8mm dieline:79.4*25.4mm
black background silkscreen
white Transparent window
1pcs
642010589 LENS
Black ground T=0.8mm
43.9*35.4mm 3m double sides
adhesive tape
1pcs
202020057 Bottom cabinet
HIPS injection black Spray
black PU
1pcs
Parts Number Parts Name Parts Specification Quantity Picture/Number in Exploded Diagram Price(USD)
320070005 peg
Fe ∮14*9.5mm plating Ni
2pcs
309070116 Battery spring +
∮0.8 spring wire plating Ni
1pcs
309070117 Battery spring -
∮0.8 spring wire plating Ni
1pcs
209020022 Battery door(big)
HIPS injection black spray
Black+PU
1pcs
209020023 Battery door(small)
HIPS injection black spray
Black+PU
1pcs
204010021 Black key ABS injection black N/A 3pcs
Accesary Parts

Alesis Vortex Wireless 2 Specifications

General

Product color	Black, White
Volume control	Touch
Knobs color	Black
Control type	Buttons, Sensor
Number of pads	8
Backlight color	Multicolor
Backlight buttons	Yes
MIDI-keyboard number of keys	37 keys
Interface	USB
Bundled software	Hybrid 3, Loom 2, Vacuum Pro & Xpand! 2 from AIR Music Tech, TimewARP 2600 from Way Out Ware & Ableton Live Lite
Battery type	AA
Number of batteries supported	4
Minimum RAM	4000 MB
Minimum processor	Dual Core 2GHz, Intel Core i5/i7
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.8 Mountain Lion
Windows operating systems supported	Windows 7
