Alesis Vortex Wireless 2 Service Manual

39

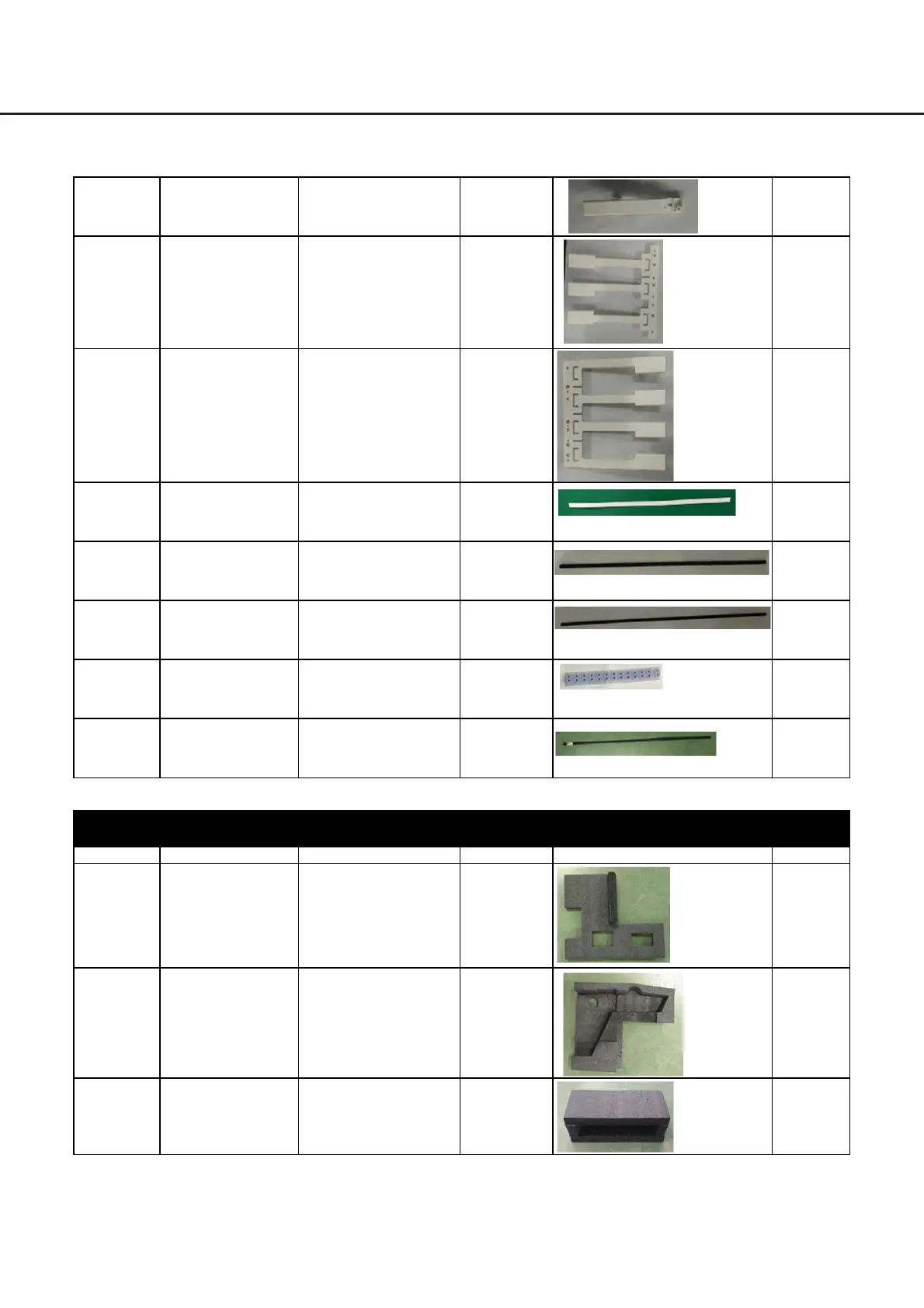

Spare Parts List
205010115 Single white key ABS White N/A 1pcs
205010113 White key(3key group) ABS White N/A 3pcs
205010114 White key(4key group) ABS White N/A 3pcs
631030310 Bottom limit felt
530*13*2.0mm white single
side with glue the hardness of
60 degrees
1pcs
631030311 Key hook felt
520*6*2.5mm black felt single
side with general glue the
hardness of 55 degrees
1pcs
629990396 Rubber strip
515*8*4.2mm
Silicone+Polyfoam black
single side with 3M glue the
hardness of 45 degrees
1pcs
629010068 Conductive Rubber
Painting carbon blue long life
siticagel the hardness of 40
degrees 177.5*22.8*16.2mm
3pcs
628990076 After touch bar
LQVL-
37AfterTouch_Strip_V01
9091-0135-K
1pcs
Parts Number Parts Name Parts Specification Quantity Picture/Number in Exploded Diagram Price(USD)
1020206840 Outer packing materials LQVL 1set
634000455 EPE Left top EPE black 375*300*75mm 1pcs
634000457 EPE Left bottom EPE black 375*300*75mm 1pcs
634000456 EPE right EPE black 300*125*100mm 1pcs
Packing Parts

Alesis Vortex Wireless 2 Specifications

General

Product color	Black, White
Volume control	Touch
Knobs color	Black
Control type	Buttons, Sensor
Number of pads	8
Backlight color	Multicolor
Backlight buttons	Yes
MIDI-keyboard number of keys	37 keys
Interface	USB
Bundled software	Hybrid 3, Loom 2, Vacuum Pro & Xpand! 2 from AIR Music Tech, TimewARP 2600 from Way Out Ware & Ableton Live Lite
Battery type	AA
Number of batteries supported	4
Minimum RAM	4000 MB
Minimum processor	Dual Core 2GHz, Intel Core i5/i7
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.8 Mountain Lion
Windows operating systems supported	Windows 7
