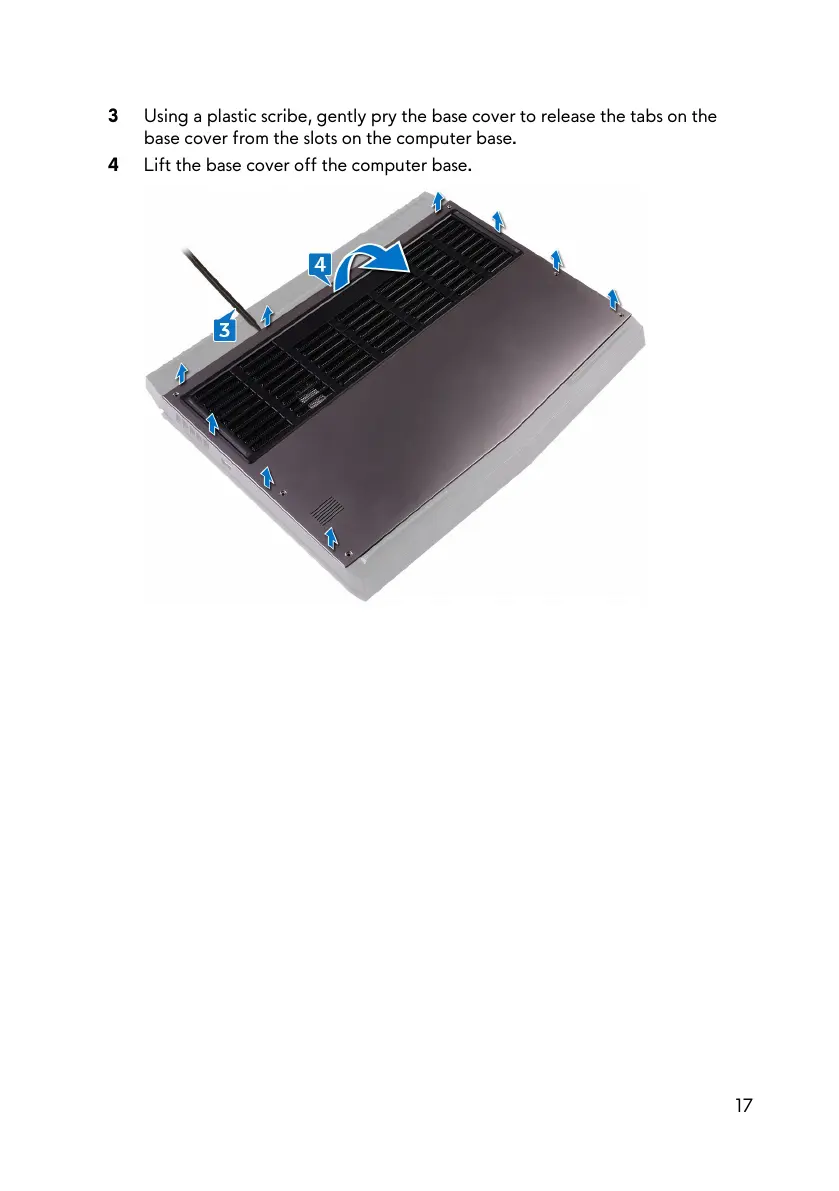

3 Using a plastic scribe, gently pry the base cover to release the tabs on the

base cover from the slots on the computer base.

4 Lift the base cover off the computer base.
