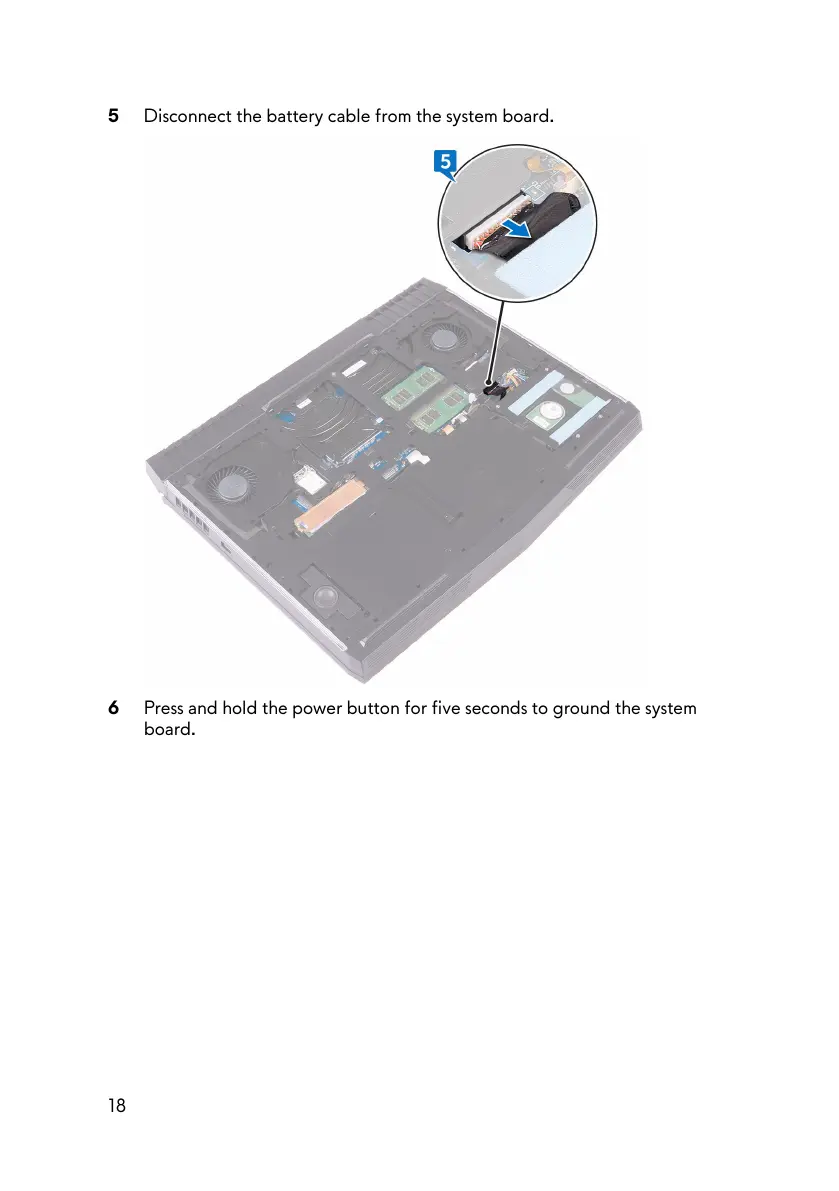

5 Disconnect the battery cable from the system board.

6 Press and hold the power button for five seconds to ground the system

board.
