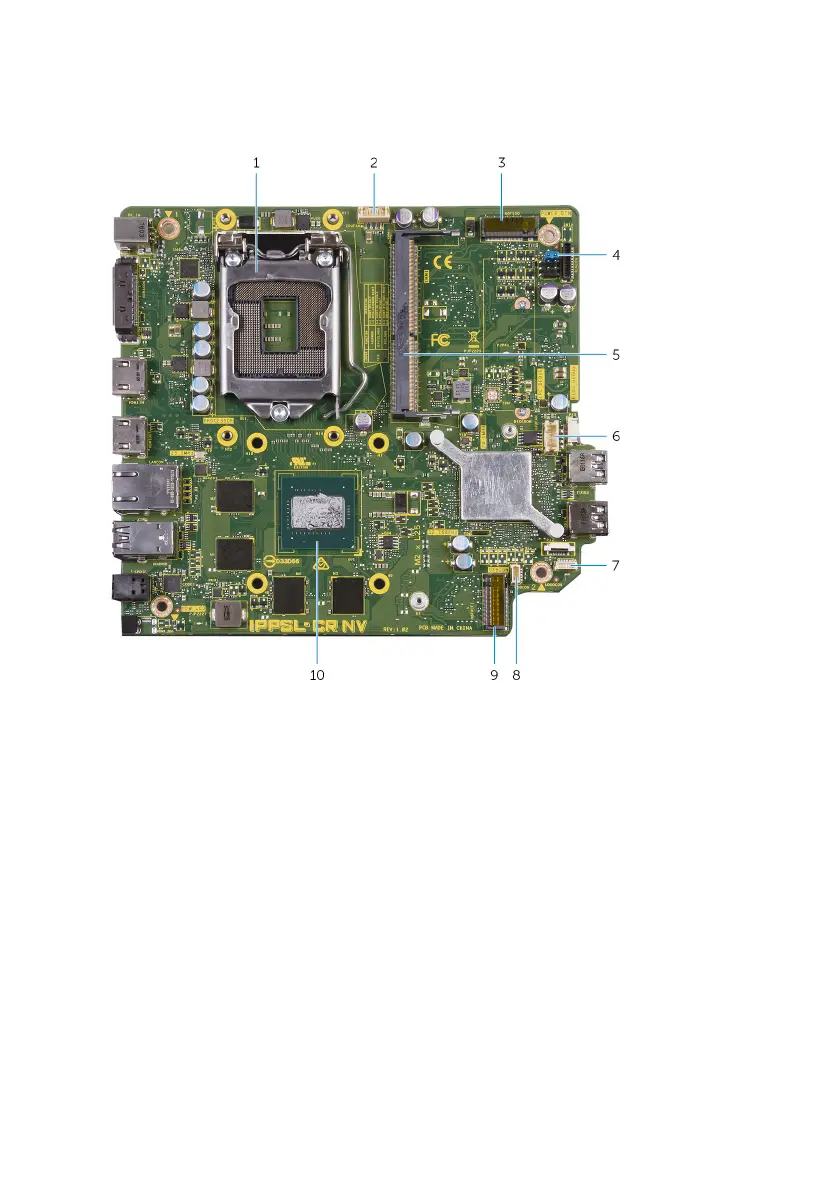

System-board components
1 processor socket (PROCESSOR) 2 processor-fan cable connector
(CPUFAN)
3 M.2 Solid-state drive slot (NGFSSD) 4 jumper plug (P215)
5 memory-module slot (XMM1) 6 video-card fan cable connector
(GPUFAN)
7 front-panel light board cable
connector (LOGOCON)
8 USB-port cable connector
(USBCON)
9 wireless-card slot 10 video card
14
