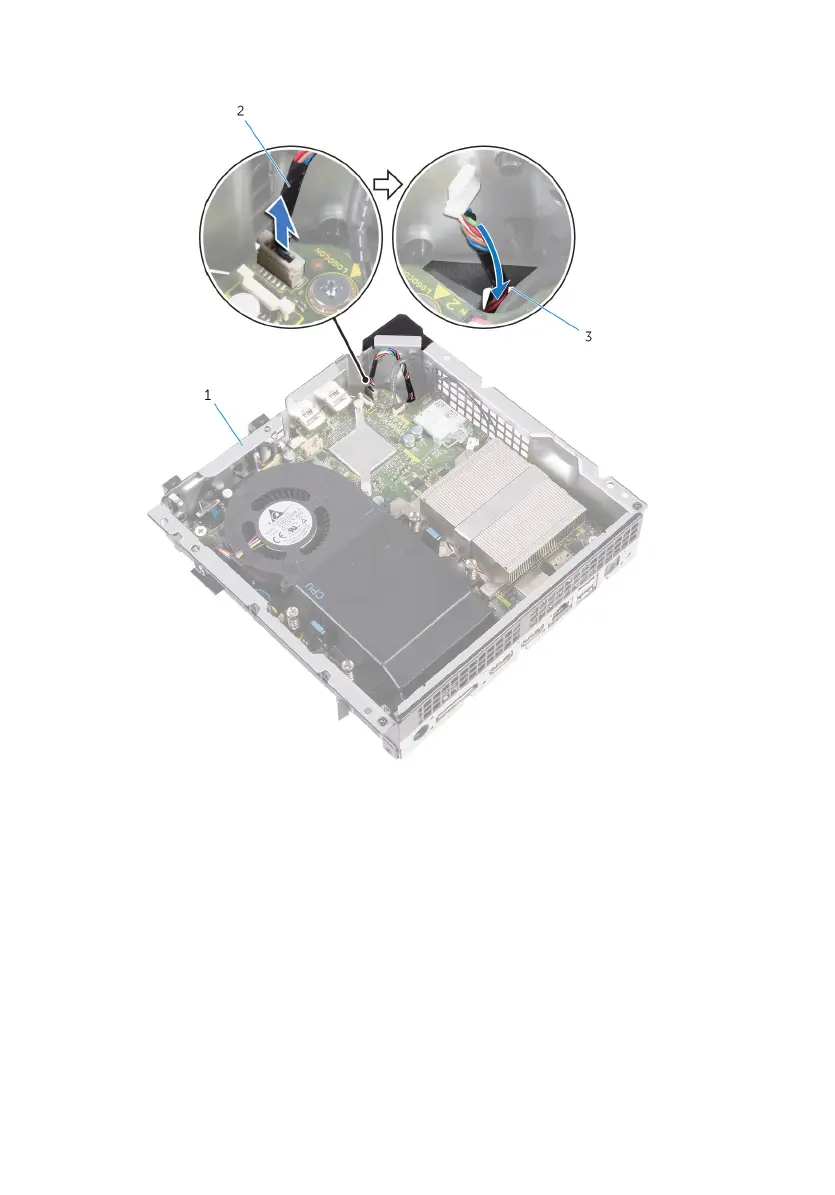

2 Slide the front-panel light board cable through the routing-hole on the chassis.

1 chassis 2 front-panel light board cable

3 routing hole
