Alienware Alpha R2

To Next Page

To Previous Page

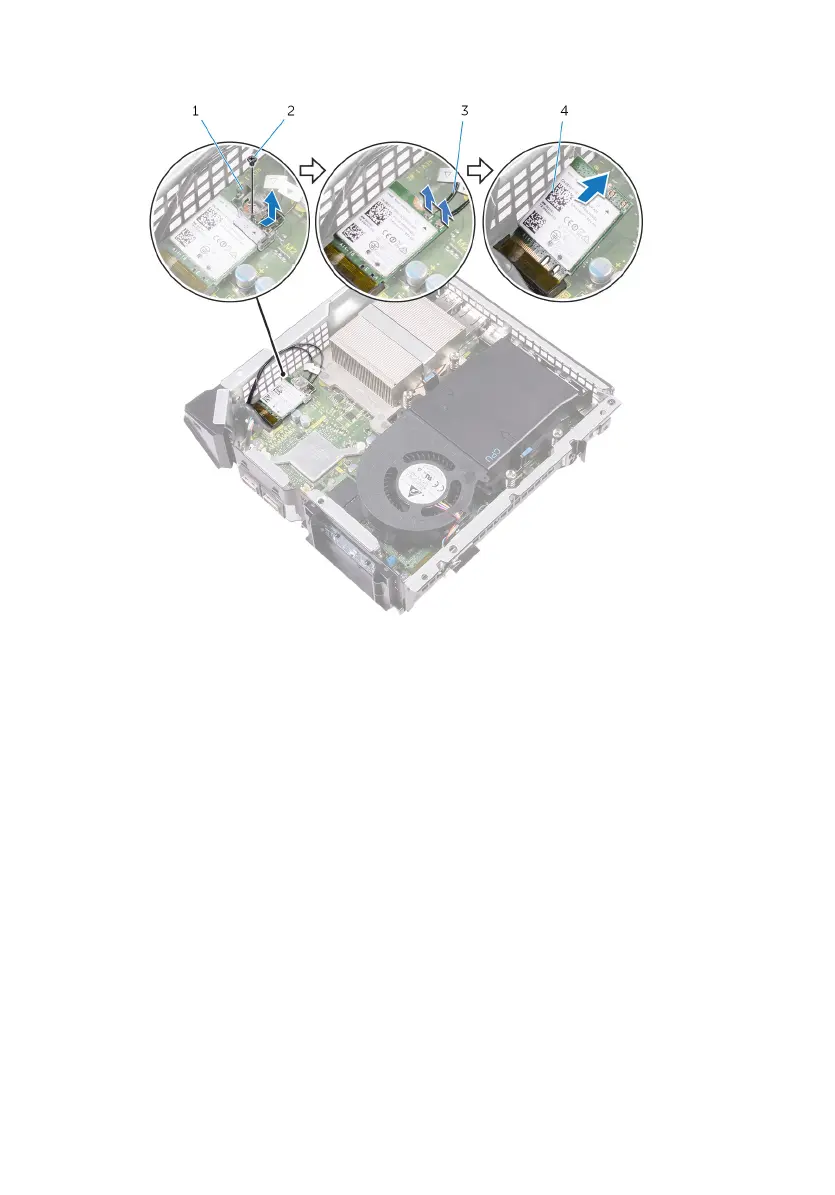

4 Slide and remove the wireless card out of the wireless-card slot.

1 bracket 2 screw

3 antenna cables (2) 4 wireless card
