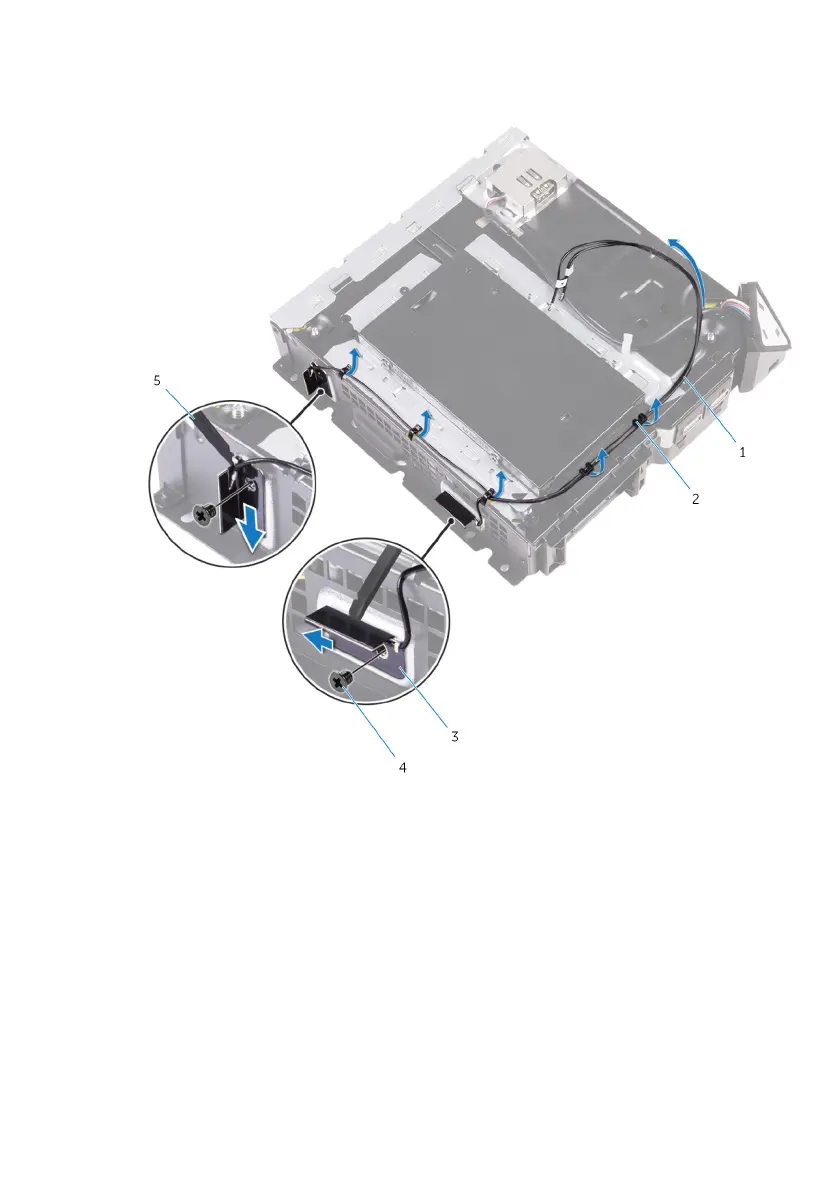

5 Using a plastic scribe, pry and slide the antenna modules, and release the tabs on
the antenna modules from the slots on the chassis.
1 antenna cable 2 routing guides
3 antenna modules (2) 4 screws (2)
5 plastic scribe
6 Lift the antenna modules, along with the cable, off the chassis.
69
