24 | About your monitor

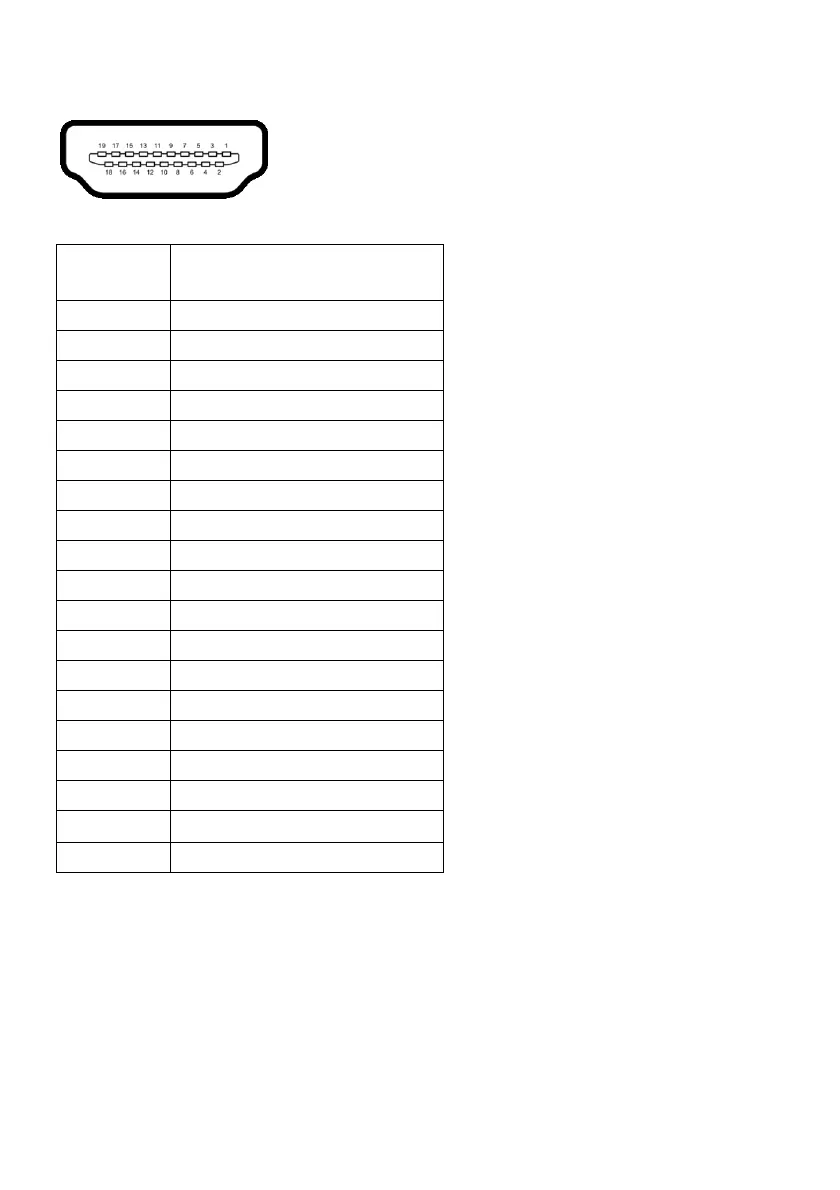

HDMI connector

Pin number 19-pin side of the connected

signal cable

1 TMDS DATA 2+

2 TMDS DATA 2 SHIELD

3 TMDS DATA 2-

4 TMDS DATA 1+

5 TMDS DATA 1 SHIELD

6 TMDS DATA 1-

7 TMDS DATA 0+

8 TMDS DATA 0 SHIELD

9 TMDS DATA 0-

10 TMDS CLOCK+

11 TMDS CLOCK SHIELD

12 TMDS CLOCK-

13 CEC

14 Reserved (N.C. on device)

15 DDC CLOCK (SCL)

16 DDC DATA (SDA)

17 DDC/CEC Ground

V POWER

19 HOT PLUG DETECT

Plug and Play capability

You can connect the monitor to any Plug and Play-compatible system. The

monitor automatically provides the computer system with its Extended Display

Identification Data (EDID) using Display Data Channel (DDC) protocols so that

the system can configure itself and optimize the monitor settings. Most monitor

installations are automatic; you can select different settings if desired. For more

information about changing the monitor settings, see Operating the monitor.
