58 | Removing the Display Assembly

5 Remove the screws that secure the display assembly to the computer base.

6 Lift the display assembly off the computer.

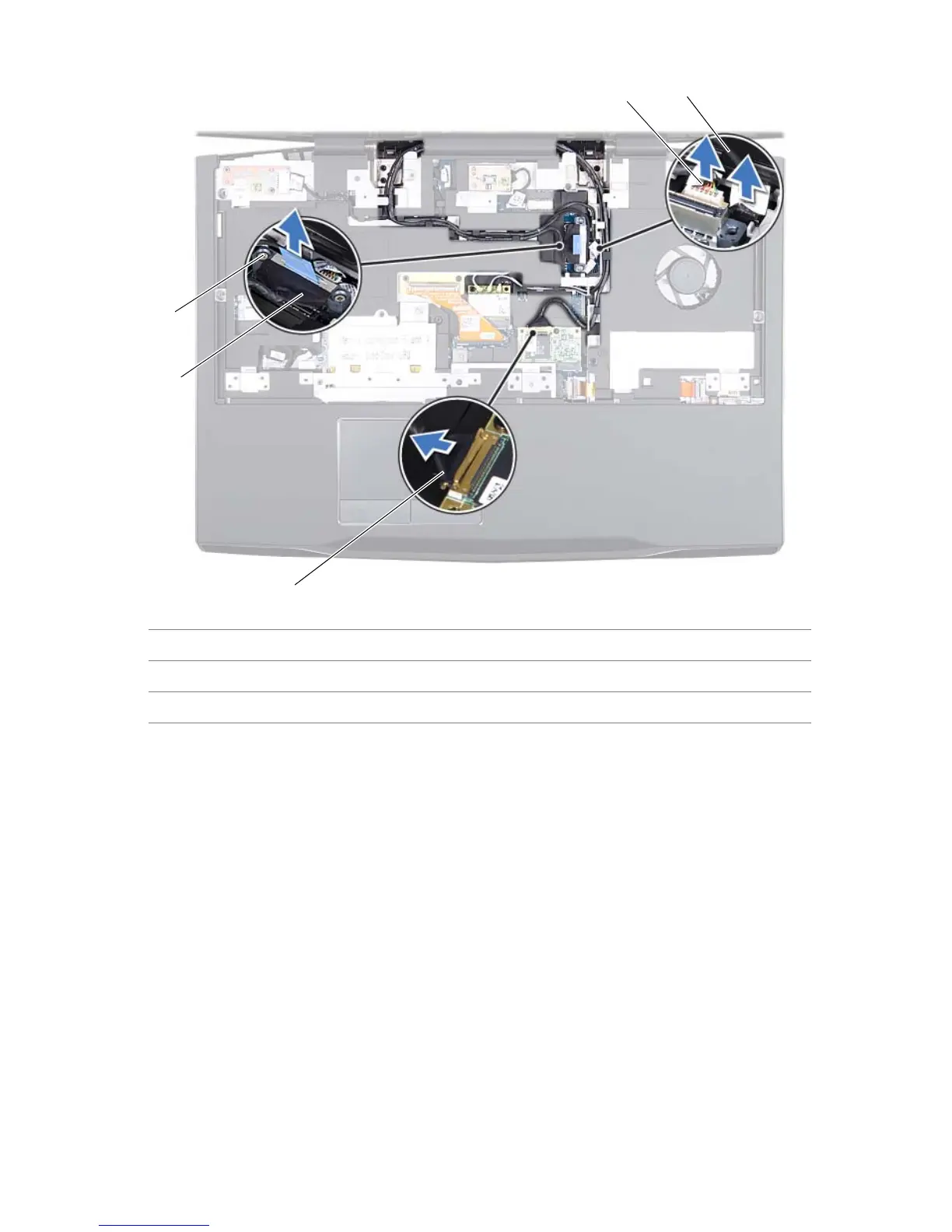

1 wirelessHD card cable 2 display cable

3 captive screws (2) 4 camera cable

5 infrared cable

Default Chapter3
- Table of Contents3
1 Before You Begin9
- Turn off Your Computer and Connected Devices9
- Safety Instructions9
- Recommended Tools10
2 After Working Inside Your Computer11
3 Removing the Battery Pack12
- Procedure12
4 Replacing the Battery Pack13
- Procedure13
- Postrequsites13
5 Removing the Compartment Door14
- Prerequsites14
- Procedure14
6 Replacing the Compartment Door15
- Procedure15
- Postrequsites15
7 Removing the Coin-Cell Battery16
- Prerequsites16
- Procedure16
8 Replacing the Coin-Cell Battery17
- Procedure17
- Postrequsites17
9 Removing the Hard Drive(S)18
- Prerequsites18
- Procedure18
10 Replacing the Hard Drive(S)21
- Procedure21
- Postrequsites21
11 Removing the Memory Module(S)22
- Prerequsites22
- Procedure22
12 Replacing the Memory Module(S)24
- Procedure24
- Postrequsites25
13 Removing the Graphics-Card Heat Sink Fan26
- Prerequsites26
- Procedure27
14 Replacing the Graphics-Card Heat Sink Fan28
- Procedure28
- Postrequsites28
15 Removing the Processor Heat-Sink Fan29
- Prerequsites29
- Procedure30
16 Replacing the Processor Heat-Sink Fan31
- Procedure31
- Postrequsites31
17 Removing the Graphics-Card Assembly32
- Prerequsites32
- Procedure33
18 Replacing the Graphics-Card Assembly34
- Procedure34
- Postrequsites34
19 Removing the Processor Heat-Sink35
- Prerequsites35
- Procedure36
20 Replacing the Processor Heat-Sink37
- Procedure37
- Postrequsites37
21 Removing the Processor Module38
- Prerequsites38
- Procedure38
22 Replacing the Processor Module40
- Procedure40
- Postrequsites40
23 Removing the Center Control Cover41
- Prerequsites41
- Procedure41
24 Replacing the Center Control Cover44
- Procedure44
- Postrequsites44
25 Removing the Keyboard45
- Prerequsites45
- Procedure45
26 Replacing the Keyboard48
- Procedure48
- Postrequsites48
27 Removing the Mini-Card49
- Prerequsites49
- Procedure50
28 Replacing the Mini-Card51
- Procedure51
- Postrequsites52
29 Removing the Wirelesshd Card53
- Prerequsites53
- Procedure53
30 Replacing the Wirelesshd Card54
- Procedure54
- Postrequsites54
31 Removing the Power Button Board55
- Prerequsites55
- Procedure55
32 Replacing the Power Button Board56
- Procedure56
- Postrequsites56
33 Removing the Display Assembly57
- Prerequsites57
- Procedure57
34 Replacing the Display Assembly60
- Procedure60
- Postrequsites60
35 Removing the Status Light Board61
- Prerequsites61
- Procedure61
36 Replacing the Status Light Board63
- Procedure63
- Postrequsites63
37 Removing the Palm Rest Assembly64
- Prerequsites64
- Procedure65
38 Replacing the Palm Rest Assembly66
- Procedure66
- Postrequsites66
39 Removing the Bluetooth Card67
- Prerequsites67
- Procedure67
40 Replacing the Bluetooth Card69
- Procedure69
- Postrequsites69
41 Removing the Speakers70
- Prerequsites70
- Procedure70
42 Replacing the Speakers72
- Procedure72
- Postrequsites72
43 Removing the Optical Drive73
- Prerequsites73
- Procedure73
44 Replacing the Optical Drive76
- Procedure76
- Postrequsites76
45 Removing the System Board77
- Prerequsites77
- Procedure78
46 Replacing the System Board79
- Procedure79
- Postrequsites79
- Entering the Service Tag in the BIOS80
47 System Setup81
- Configuring the System Setup81
- Entering System Setup81
- System Setup Screens81
- System Setup Options82
48 Flashing the BIOS88
