Steps
1. Open the latch and disconnect the keyboard-controller board cable from the system board.
2. Disconnect the speaker cable from the system board.
3. Peel the tapes that secure the speaker cable to the palm-rest and keyboard assembly.
4. Remove the speaker cable from the routing guides on the palm-rest and keyboard assembly.
5. Remove the four screws (M1.6x1.8) that secure the left speaker and right speaker to the palm-rest and keyboard assembly.
6. Lift the right and left speaker, along with its cable, off the palm-rest and keyboard assembly.
Installing the speakers
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

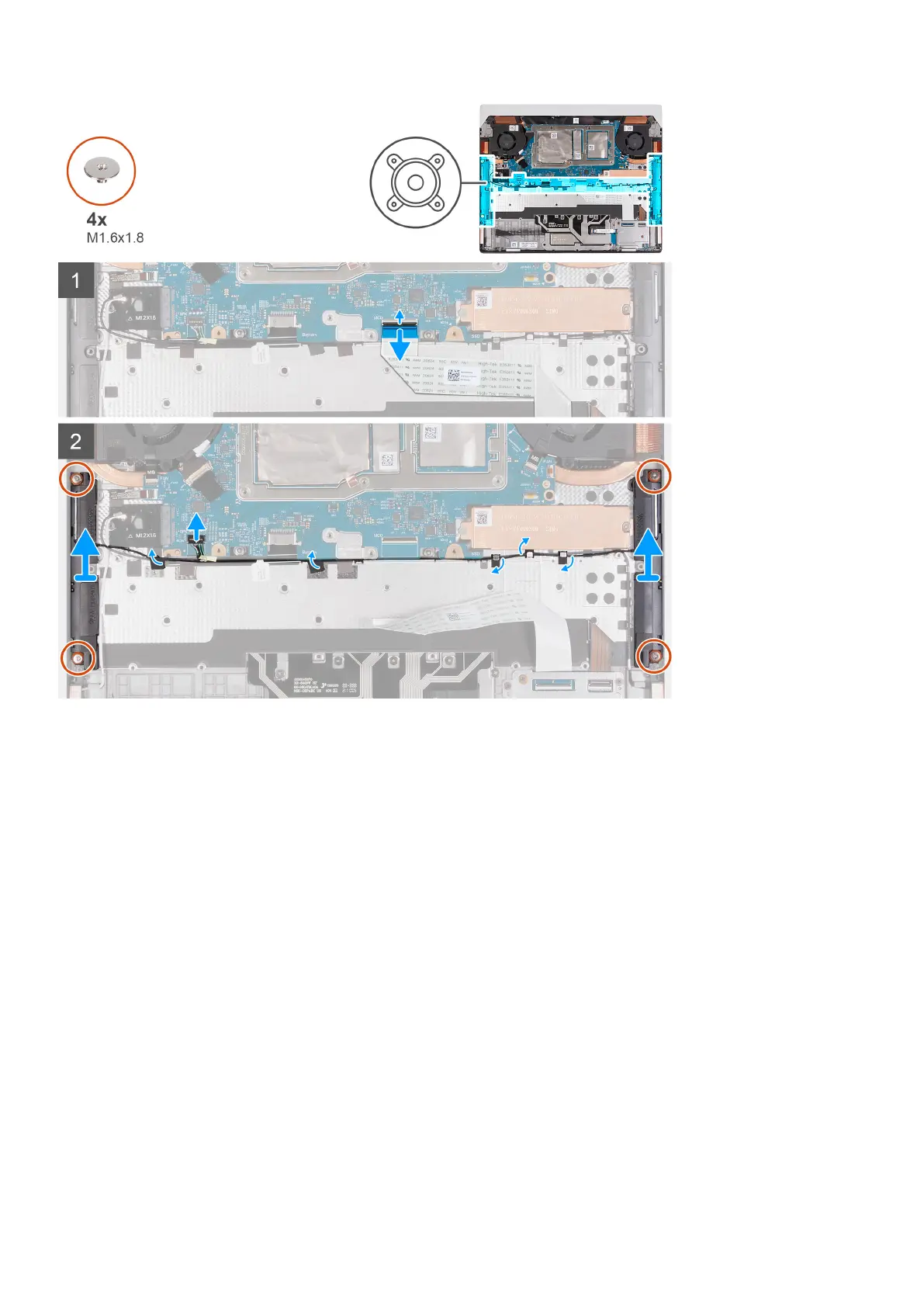

The following image(s) indicate the location of the speakers and provides a visual representation of the installation procedure.
