Alienware x14 - Solid-State Drive

Next steps
1. Install the base cover.
2. Follow the procedure in After working inside your computer.
Solid-state drive
Removing the M.2 2280 solid-state drive
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
NOTE: The following procedure applies only to computers shipped with an M.2 2280 solid-state drive.
NOTE: The M.2 card supported on this slot depends on the configuration ordered. Supported card configurations. Supported
card configurations:
● M.2 2230 solid-state drive + 2230 mounting bracket
● M.2 2280 solid-state drive

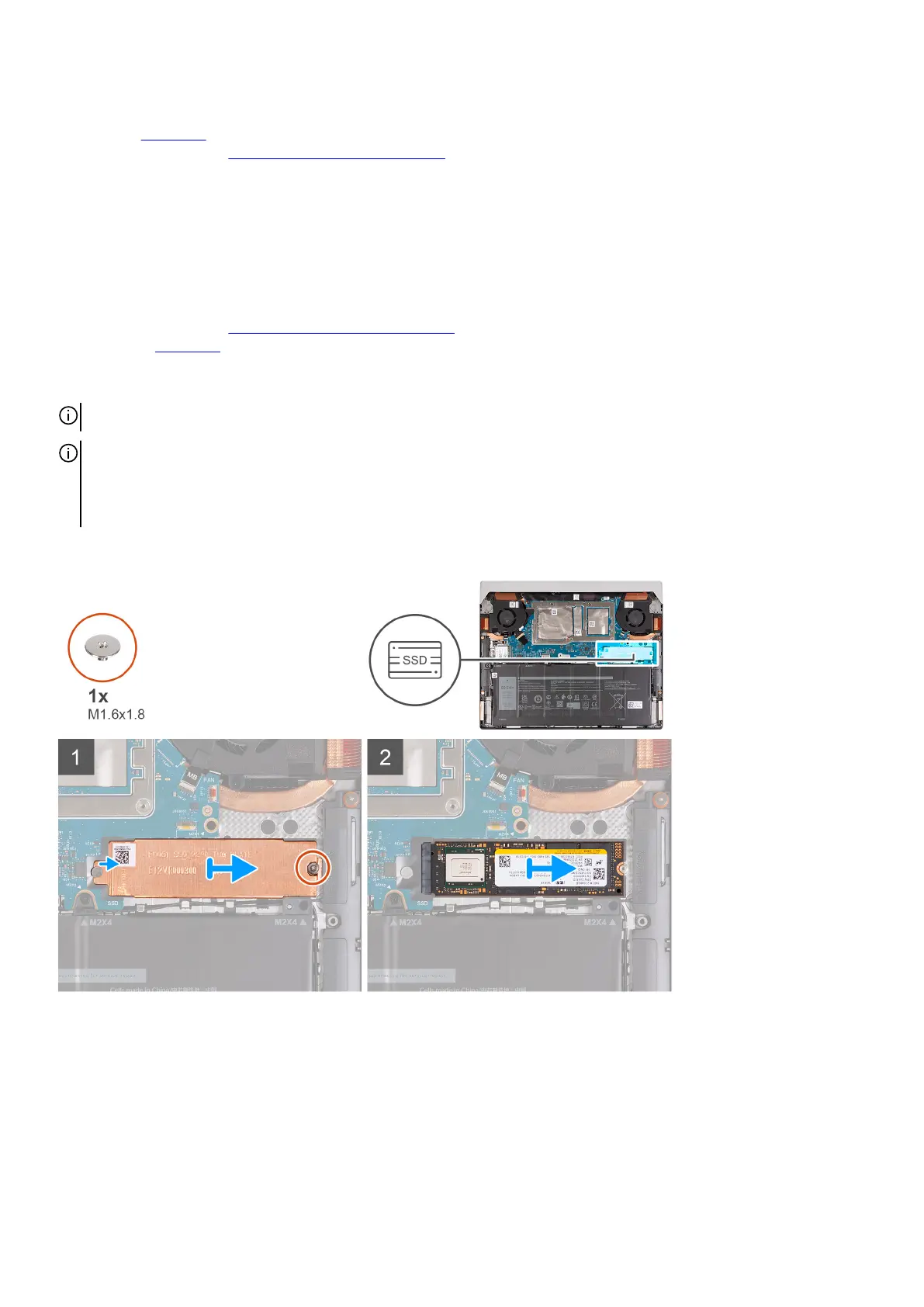

The following image(s) indicate the location of the M.2 2280 solid-state drive and provides a visual representation of the removal
procedure.
Steps
1. Remove the screw (M1.6x1.8) that secures the solid-state drive thermal shield to the solid-state drive and palm-rest and keyboard
assembly.
2. Lift and remove the solid-state thermal shield off the solid-state drive.
3. Slide and remove the solid-state drive from the solid-state drive slot.
