Steps

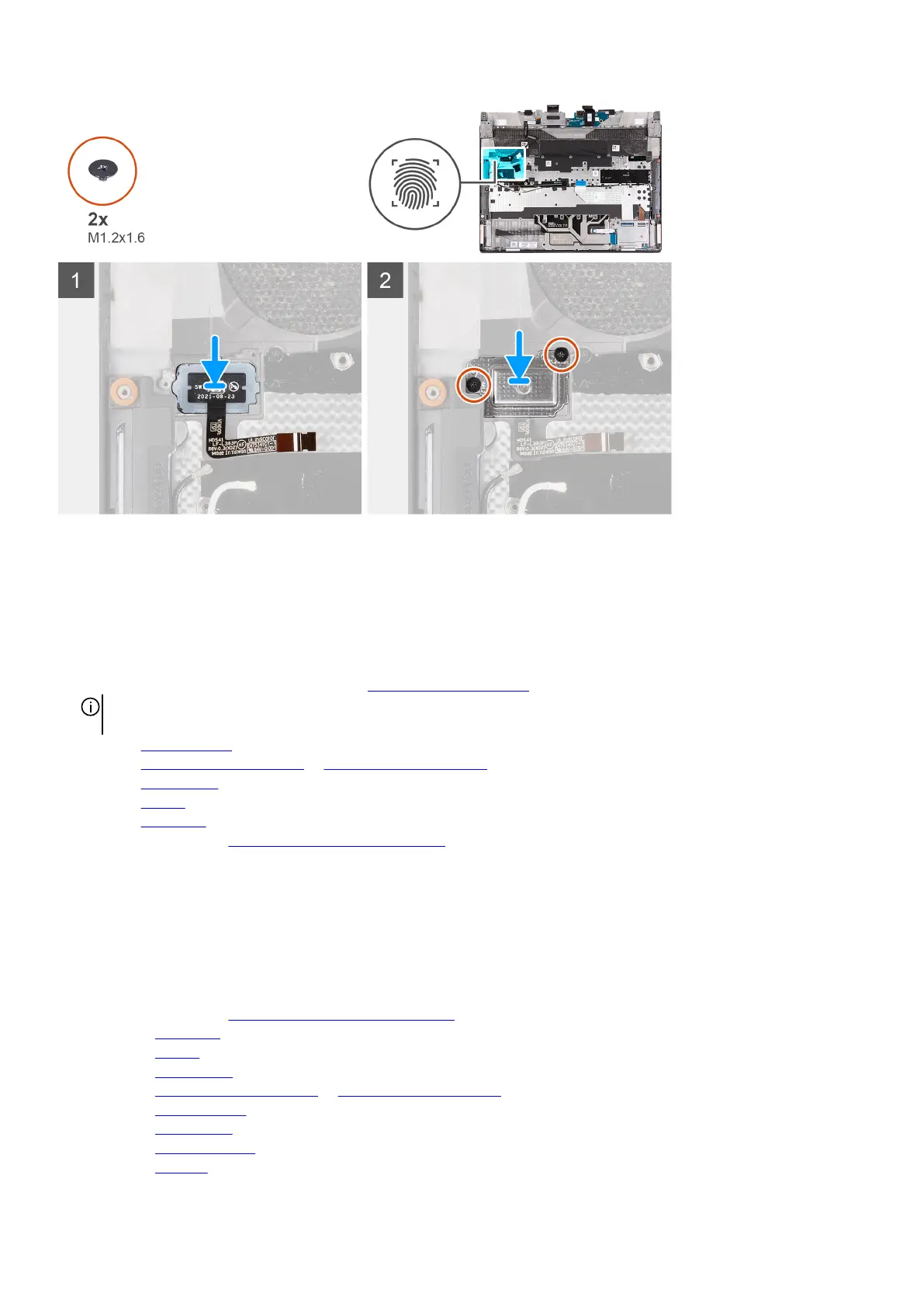

1. Align and place the power button, along with its cable, into the slot on the palm-rest and keyboard assembly.
2. Align the screw holes on the power-button bracket to the screw holes on the palm-rest and keyboard assembly.
3. Replace the two screws (M1.2x1.6) that secure the power-button bracket to the palm-rest and keyboard assembly.
Next steps
1. Follow the procedure from step 3 to step 20 in
Installing the system board.
NOTE: The system board can be removed and installed along with the heat sink. This simplifies the removal and installation
procedure and avoids breaking the thermal bond between the system board and heat sink.
2. Install the rear I/O-cover.
3. Install the M.2 2230 solid-state drive or M.2 2280 solid-state drive, as applicable.
4. Install the
wireless card.
5. Install the battery.
6. Install the base cover.
7. Follow the procedure in After working inside your computer.
Palm-rest and keyboard assembly
Removing the palm-rest and keyboard assembly
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the
base cover.
3. Remove the battery.
4. Remove the wireless card.
5. Remove the M.2 2230 solid-state drive or M.2 2280 solid-state drive, as applicable.
6. Remove the rear I/O-cover.
7. Remove the headset port.
8. Remove the display assembly.
9. Remove the speakers.
58
