Keyboard-controller board
Removing the keyboard-controller board
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the
battery.
About this task

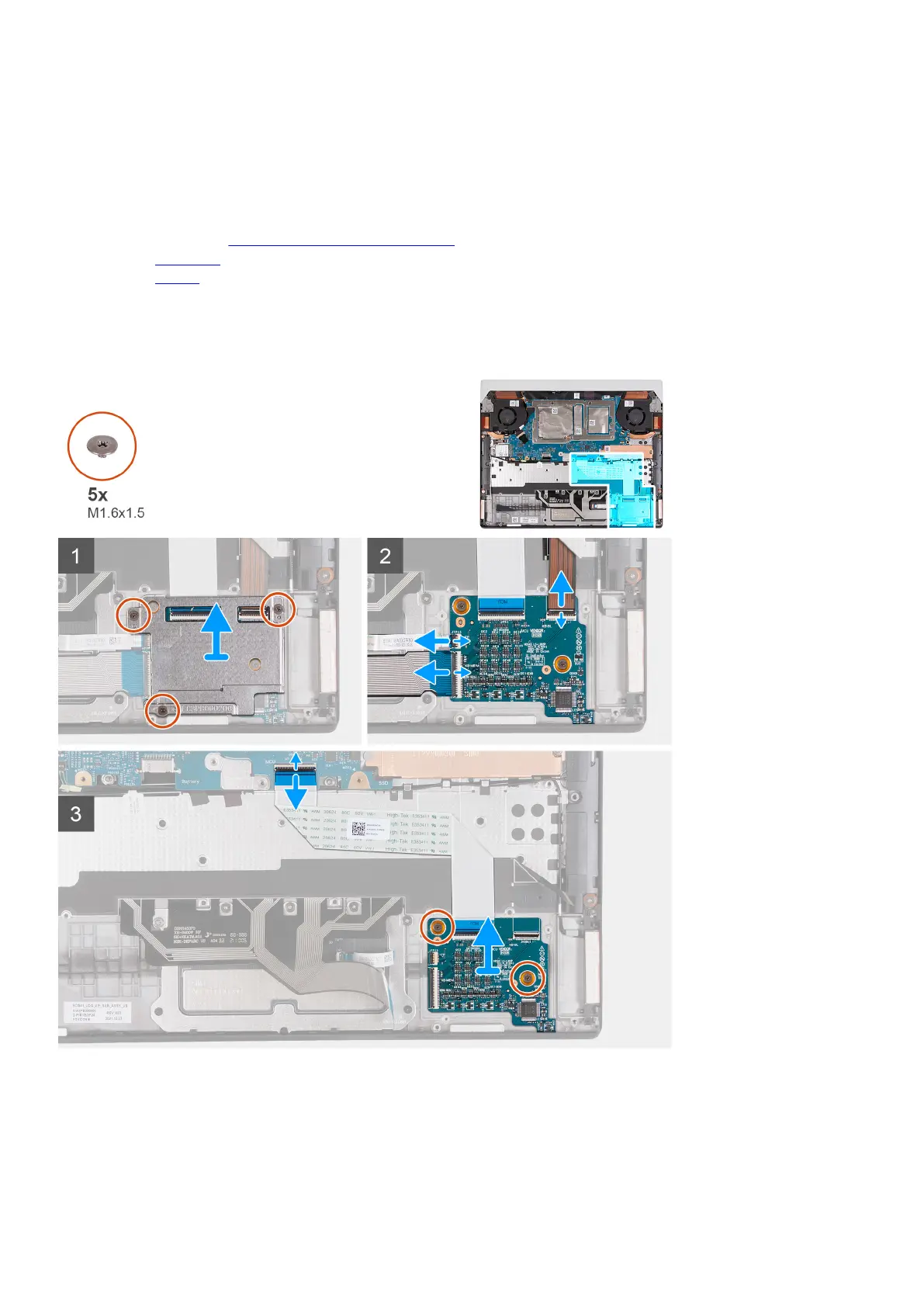

The following image(s) indicate the location of the keyboard-controller board and provides a visual representation of the removal
procedure.
Steps
1. Remove the three screws (M1.6x1.5) that secure the keyboard-controller board bracket to the palm-rest and keyboard assembly.
2. Lift the keyboard-controller board bracket off the keyboard-controller board.
3. Open the latch and disconnect the keyboard-backlight cable from the keyboard-controller board.
4. Open the latch and disconnect the touchpad cable from the keyboard-controller board.
