Installing the M.2 2280 solid-state drive

Prerequisites

If you are replacing a component, remove the existing component before performing the installation process.

About this task

NOTE: The following procedure applies only to computers shipped with an M.2 2280 solid-state drive.

NOTE: The M.2 card supported on this slot depends on the configuration ordered. Supported card configurations. Supported

card configurations:

● M.2 2230 solid-state drive + 2230 mounting bracket

● M.2 2280 solid-state drive

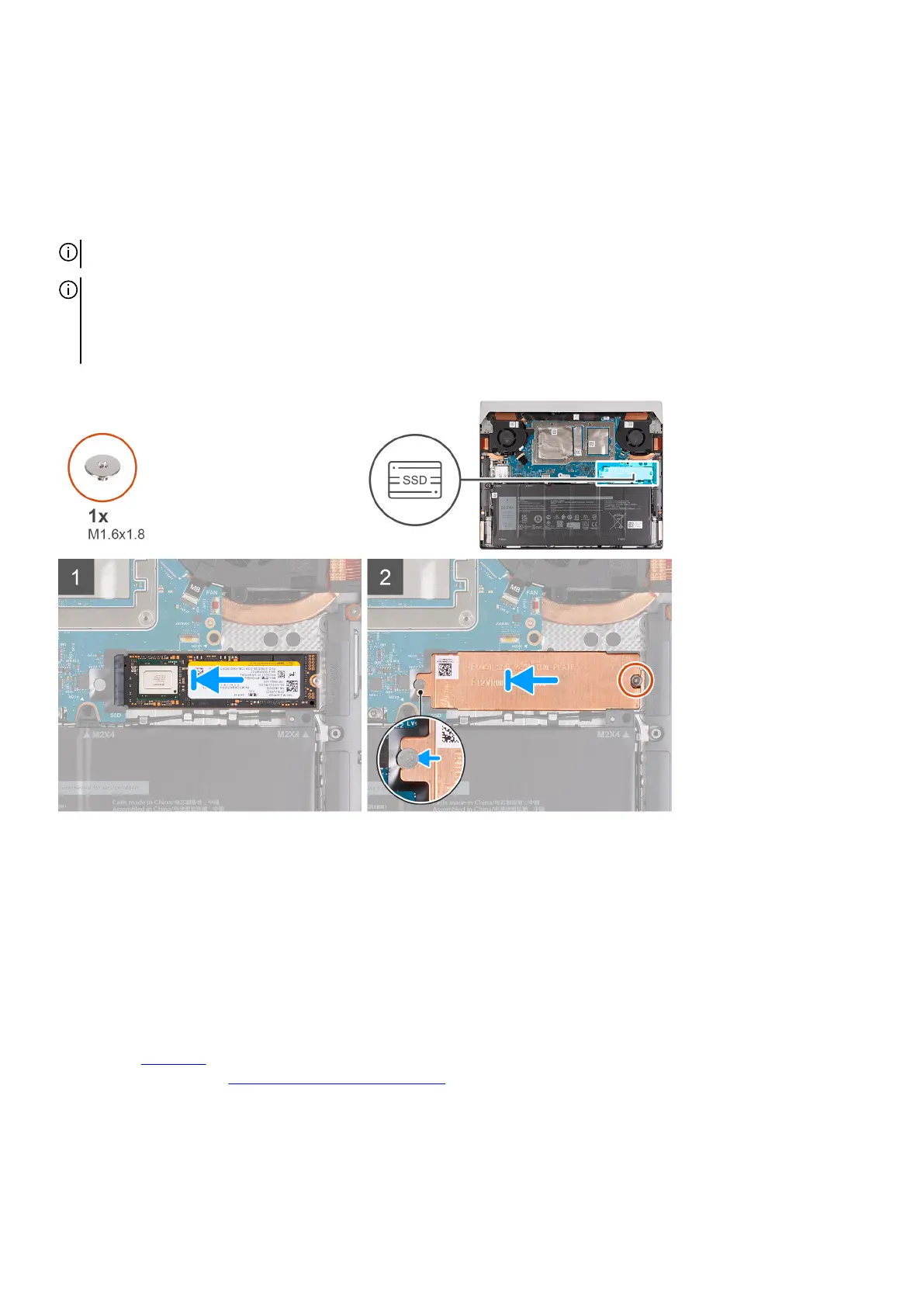

The following image(s) indicate the location of the solid-state drive and provides a visual representation of the installation procedure.

Steps

1. Align the notch on the solid-state drive with the tab on the solid-state drive slot.

2. Slide the solid-state drive into the solid-state drive slot.

3. Align and place the solid-state drive thermal shield on the solid-state drive.

4. Align the screw hole on the solid-state drive thermal shield with the screw hole on the solid-state drive and palm-rest and

keyboard assembly.

5. Replace the screw (M1.6x1.8) that secures the M.2 2280 solid-state drive thermal shield to the solid-state drive and palm-rest

and keyboard assembly.

Next steps

1. Install the

base cover.

2. Follow the procedure in After working inside your computer.
