1. I/O-board cable 2. Display cable
3. Headset port cable 4. Left-fan cable
5. Power-button cable 6. Wireless-card slot
7. Speaker cable 8. Battery cable
9. Keyboard-controller board cable 10. Solid-state drive slot
11. Right-fan cable

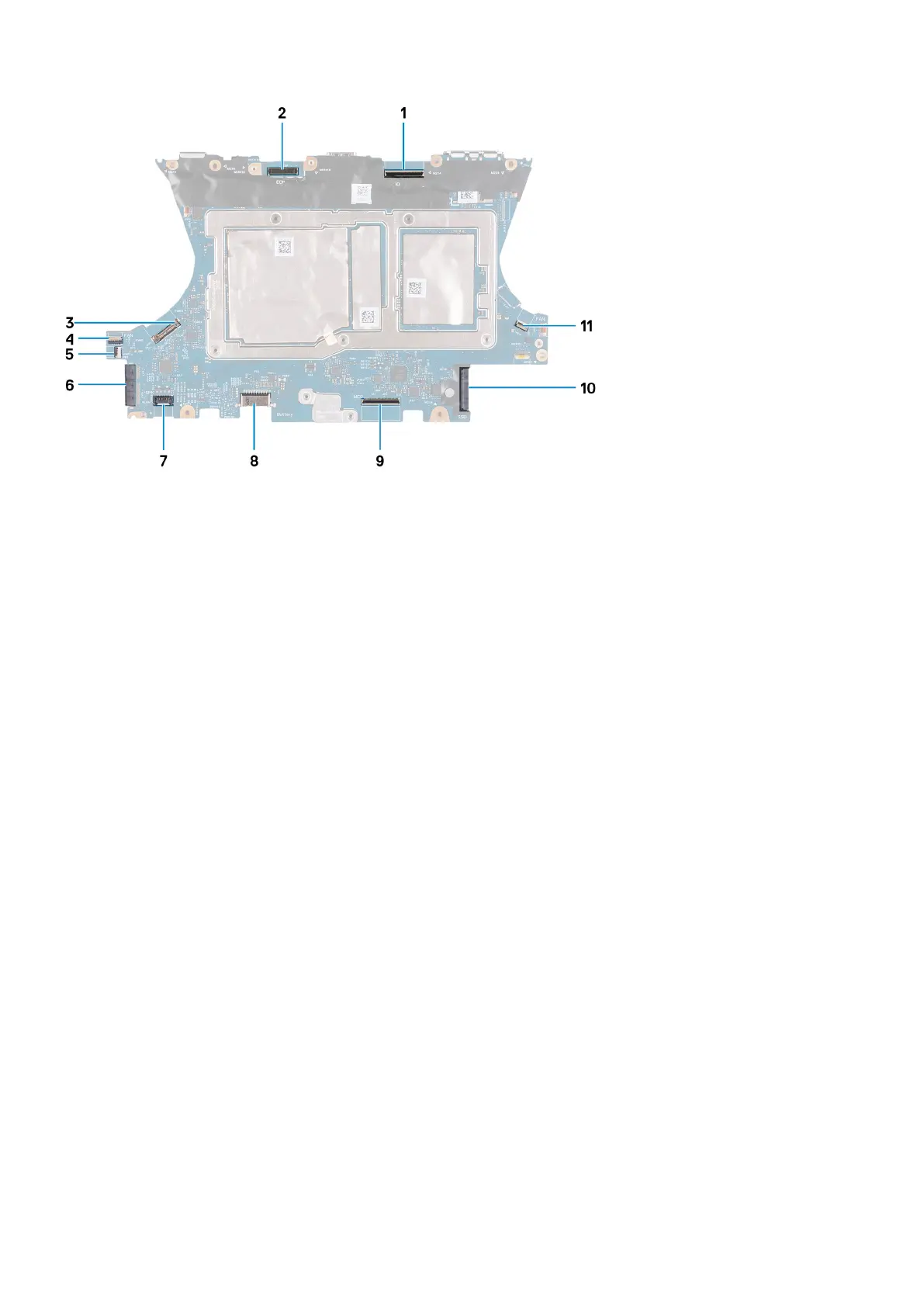

The following image(s) indicate the location of the system board and provides a visual representation of the removal procedure.
