model THGBMFG6C1LBAIL, which supports the JEDEC e-MMC V5.0 standard
HS-MMC interface with level support of 1.8V or 3.3V. The data width of the eMMC
FLASH and ZYNQ connections is 4 bits. Due to the large capacity and non-volatile
nature of eMMC FLASH, it can be used as a large-capacity storage device for the
ZYNQ system, such as ARM-based applications, system files, and other user data
files. The specific models and related parameters of eMMC FLASH are shown in
Table 5-1：
Position
Model
Capacity
Factory
U33
THGBMFG6C1LBAIL
8G Byte
TOSHIBA
Table 5-1: eMMC FLASH Specification
eMMC FLASH is connected to the GPIO port of the BANK501 in the PS
section of the ZYNQ chip. In the system design, the GPIO port functions of these
PS ports need to be configured as the SD interface. Figure 5-1 shows the eMMC
Flash in the schematic.

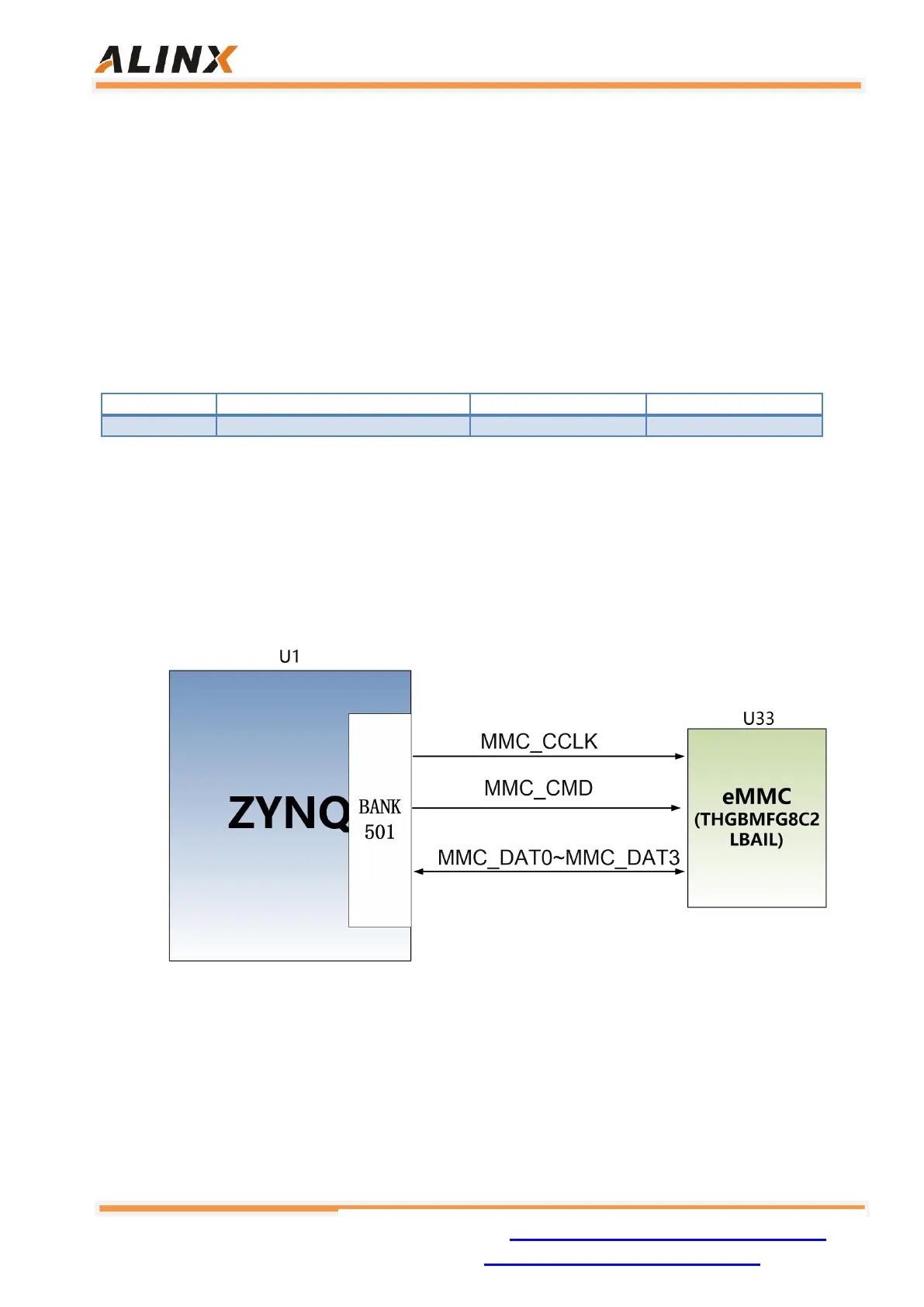

Figure 5-1: eMMC Flash in the Schematic
