ZYNQ FPGA Development Platform AC7015 User Manual
Amazon Store: https://www.amazon.com/alinx
Sales Email: rachel.zhou@aithtech.com

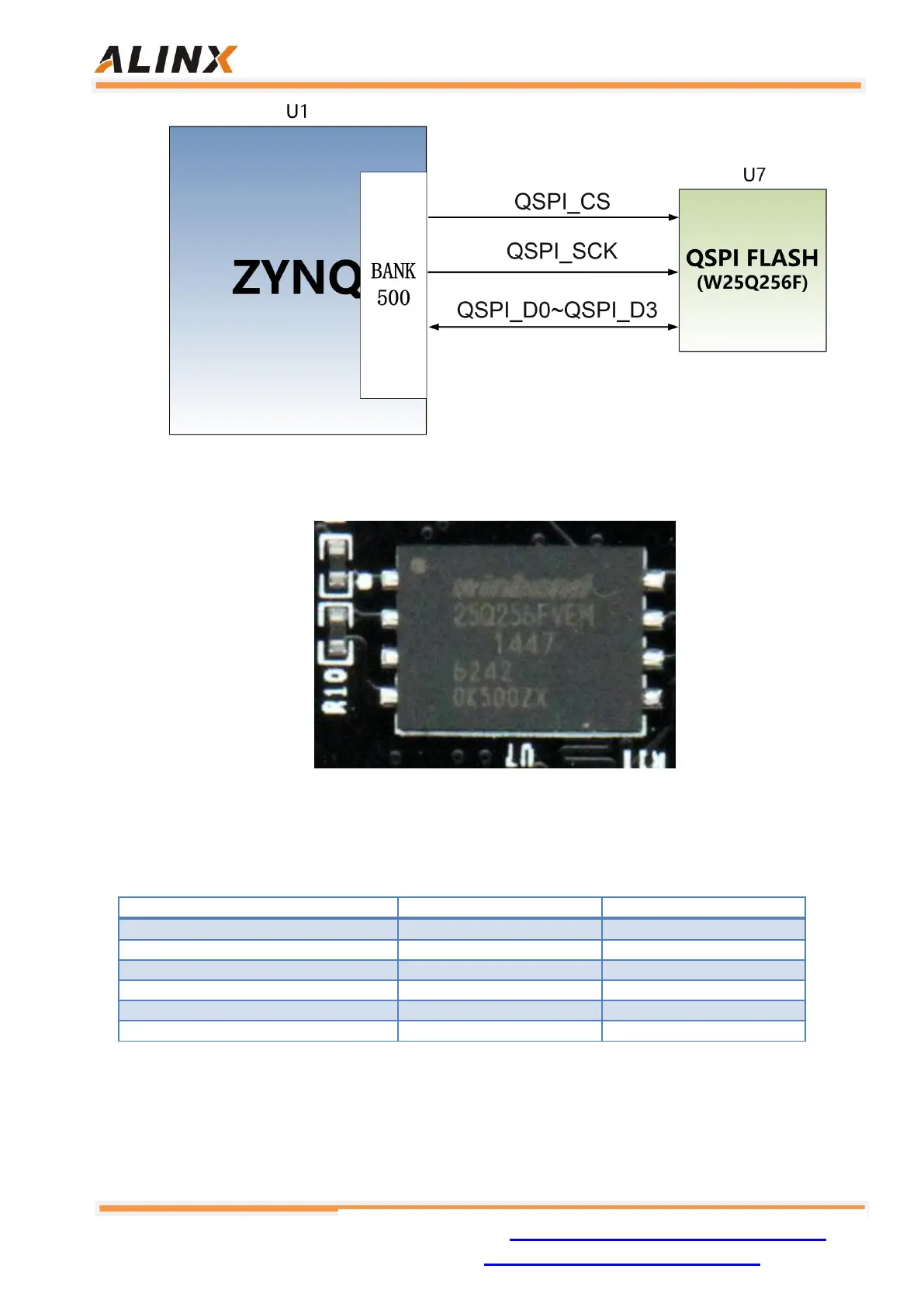

Figure 4-1: QSPI Flash in the schematic
Figure 4-2: QSPI Flash on the Core Board
Pin Assignment of QSPI Flash
Signal Name
ZYNQ Pin Name
Pin Number
QSPI_SCK
PS_MIO6_500
A19
QSPI_CS
PS_MIO1_500
A22
QSPI_D0
PS_MIO2_500
A21
QSPI_D1
PS_MIO3_500
F17
QSPI_D2
PS_MIO4_500
E19
QSPI_D3
PS_MIO5_500
A20
Table 4-2: Pin Assignment of QSPI FLASH
Part 5: eMMC Flash
The core board is equipped with a large capacity 8GB eMMC FLASH chip,
