STEP 1:CHARGING THE STATTRAK-E
Use this step for initial charging or recharging of the StatTrak-E. After you receive the StatTrak-E, in your shop or workplace,
connect the charger to the StatTrak-E through the charger port, as described below. If your StatTrak-E includes a solar panel, you'll
need to mount and connect it in Step 4:Mounting a solar panel on page6 and Step 7:Connecting a solar panel to the StatTrak-E
on page10.
Dual-use charging port
The StatTrak-E features a dual-use IP68 waterproof charging port, which delivers power to the device from a solar panel (if
equipped) and serves as an AC charging port. You'll use the charging port in this step for initial charging.
Under safety regulations, the StatTrak-E cannot be shipped with fully charged batteries. Therefore, All Traffic Solutions strongly
recommends that you charge the StatTrak-E fully before initial use. The supplied smart battery charger is equipped with a charge
indicator that shows when the StatTrak-E is fully charged and ready for use.
Do not remove the StatTrak-E battery (or batteries) for charging. The device is shipped with the power turned off. Do not turn it on
during charging. You'll only need to turn it on to test during pole mounting. See Step 6:Mounting and aiming the StatTrak-E on
page8.
W
ARNING
: RISKOFELECTRIC SHOCK OR EQUIPMENTDAMAGE The battery charger is designed for use in
protected environments only and must not be left unattended during charging. Keep the charger and batteries free of
moisture and away from flammable or explosive goods. Place the charger on a flat, non-flammable surface in a well-
ventilated environment. Do not cover the charger when charging and ensure that ambient room temperatures do not
exceed 104°F (40°C). Turn off the power supply before you connect or disconnect the charger and batteries. Do not
modify the charger, accessories, or connectors as this may cause a short circuit, fire, or over-heating. All Traffic
Solutions is not liable for any damages caused by such changes. Failure to follow these guidelines could result in
electric shock or damage StatTrak-E, rendering your warranty null and void.
To charge the StatTrak-E:
A.
Place the StatTrak-E on a smooth, non-flammable work surface sheltered from precipitation or other moisture and with
access to an AC power outlet.
B.
Make sure the StatTrak-E is turned off. See Step 8:Powering on the StatTrak-E on page11.
C.
Connect the supplied smart battery charger to the bottom port of the StatTrak-E as follows:
i.
Unscrew and remove the small cap from the charger connector port.
ii.

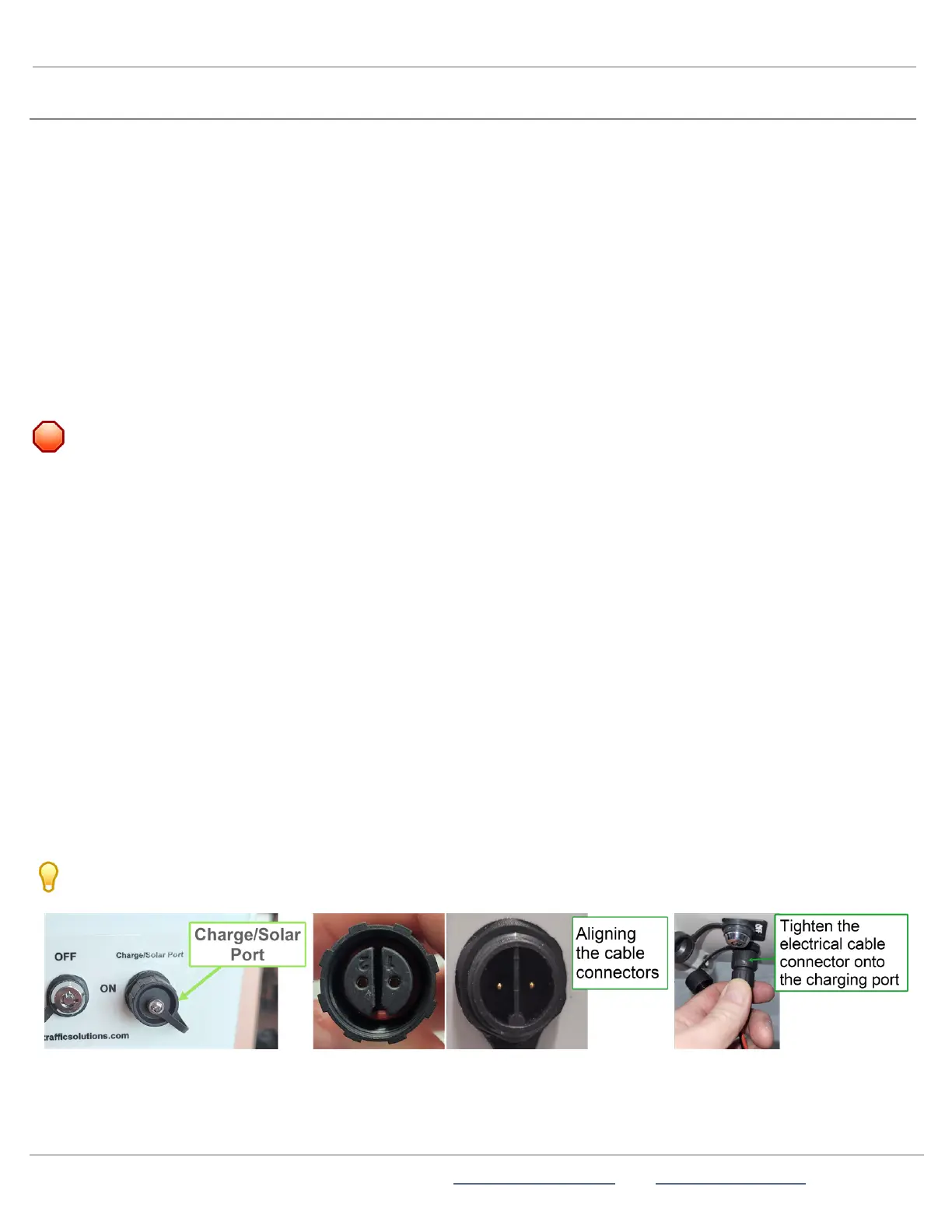

Align the IP68 charger cable adapter with the dual-use solar power and battery charging port (shown below), and
insert it into the port.
iii.
Twist to tighten the cable adapter onto the port.
Depending on the model of your charger, the LED or charging gauge turns green or shows 100% when charging is
complete.
T
IP
: Follow the steps above if you need to recharge the StatTrak-E after a deployment. If you need to replace batteries,
please see Replacing StatTrak-E batteries on page15.
