ALLEN & HEATH SQ-6 Reference Guide

 12
Reference Guide V1.5.0

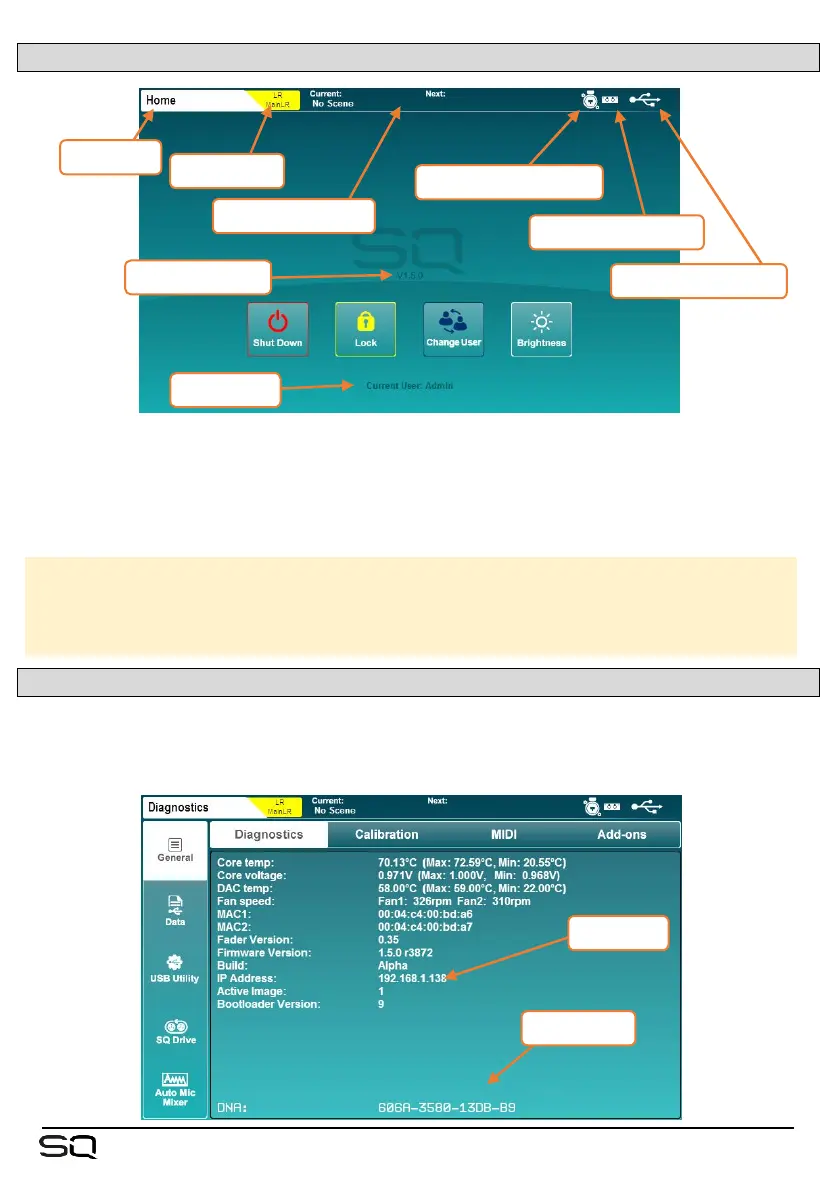

4.5 Home Screen
This is the first screen shown when powering on the SQ. It is also shown when no
channels are selected, and ‘Processing’ or ‘Routing’ screen keys are active.
 Pressing the ‘Processing’ or ‘Routing’ screen keys in bank view will deselect the
currently selected channel and return directly to the home screen.
‘Shut Down’ – Touch to shut down the SQ.
‘Lock’ – Touch to lock the SQ surface and prevent adjustments.
‘Change User’ – Touch to change to another active user.
‘Brightness’ – Touch to go directly to the SQ brightness settings.
4.6 Diagnostics
To get to the diagnostics, press the ‘Utilities’ screen key and touch the ‘General’ tab.
This displays important information about the SQ, including the current IP address for
connecting via TCP/IP, and the unique DNA code for registration and add-ons.
Unique DNA
IP address
firmware version
current user
screen title
current/next scene
SQ-Drive connected
option card installed
SLink port connection
selected mix

ALLEN & HEATH SQ-6 Specifications

General

Channels quantity	48 channels
Supported sample rates	96 kHz
Digital sound processing	- bit
DJ mixer	-
Product color	Black
Output impedance	75 Ω
MIDI out	Yes
RJ-45 ports quantity	1
Power consumption (typical)	- W

Weight and Dimensions

Depth	514.9 mm
Width	638 mm
Height	198 mm
Weight	14500 g
Package depth	680 mm
Package width	820 mm
Package height	360 mm
Package weight	17300 g
