13.1 SQ-Drive Stereo Recording and Playback
Press the ‘Utility’ screen key then touch the ‘SQ-Drive’ tab followed by the ‘Stereo’
tab to show the SQ-Drive Stereo record/playback screen.
The top half of the screen is for recording and the bottom half is for playback.
Recording –
• Press the record button to arm recording, a new ‘Stereo Record’ file name will
appear, the ‘Remaining’ time value will be displayed and the ‘Errors’ counter will
reset.
• Press the play/pause button to start recording, the ‘Elapsed’ and ‘Remaining’
time values will display progress.
• Press the stop button to stop recording.
 The device load meter indicates the suitability of the USB device for recording or
playback of audio.
 The ‘Errors’ counter increments with any detected writing error.

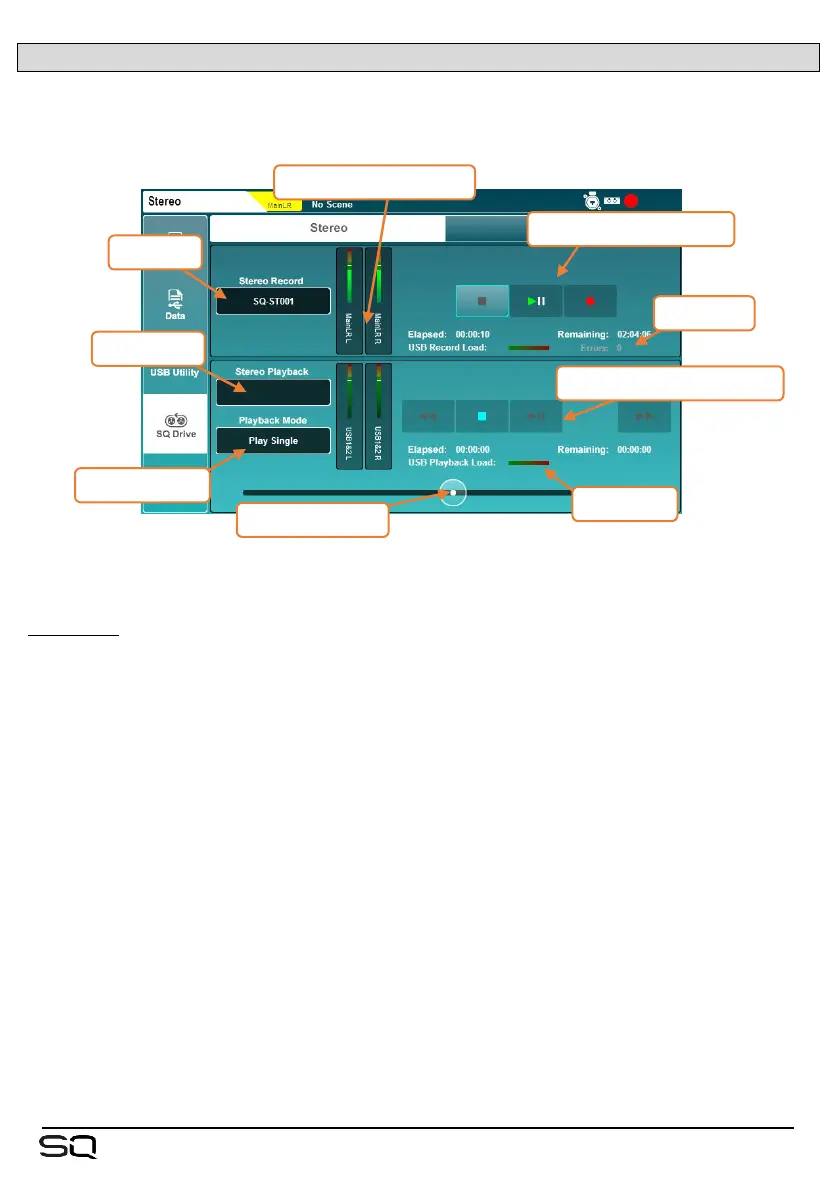

record file
playback file
playback position
playback controls and time
record controls and time
error count
playback mode
record/playback meters
device load
