Configure the Module for a SmartGuard Controller Chapter 6

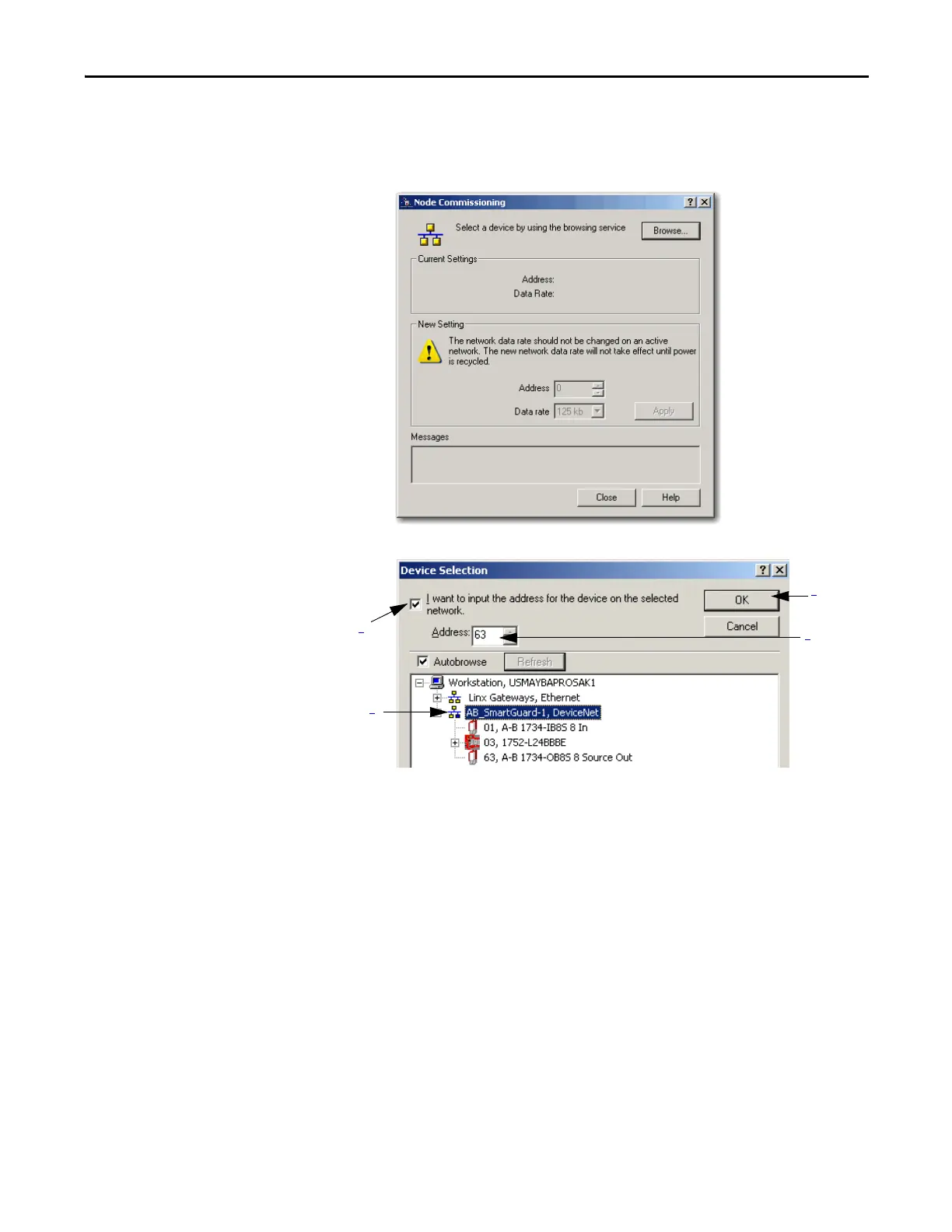

Follow these steps to set the node address with the node commissioning tool.
1. Choose Start>Programs>Rockwell Software>RSNetWorx>DeviceNet
Node Commissioning Tool.
2. Click Browse.
3. Check ‘I want to input the address for the device on the selected network’.
4. Browse to the DeviceNet network, and do not click OK when the browse
is complete.
If you are unable to browse the DeviceNet network and see the POINT
Guard modules, the modules were potentially configured to an
incompatible data rate or node address. Attempt to add these modules on
an isolated network to determine the node address and data rate.
5. Enter the current address for the device.
An out-of-box device uses address 63.
