140 Rockwell Automation Publication 1734-UM013N-EN-P - September 2017
Chapter 7 Configuring Safety Connections between a GuardLogix Controller and POINT Guard I/O Modules on a DeviceNet Network
Complete the Safety
Configuration
Follow these steps to copy the configuration signature and safety network
number from RSNetWorx for DeviceNet software to the generic profile you
configure in the Logix Designer application.
1. In RSNetWorx for DeviceNet software, double-click the module.

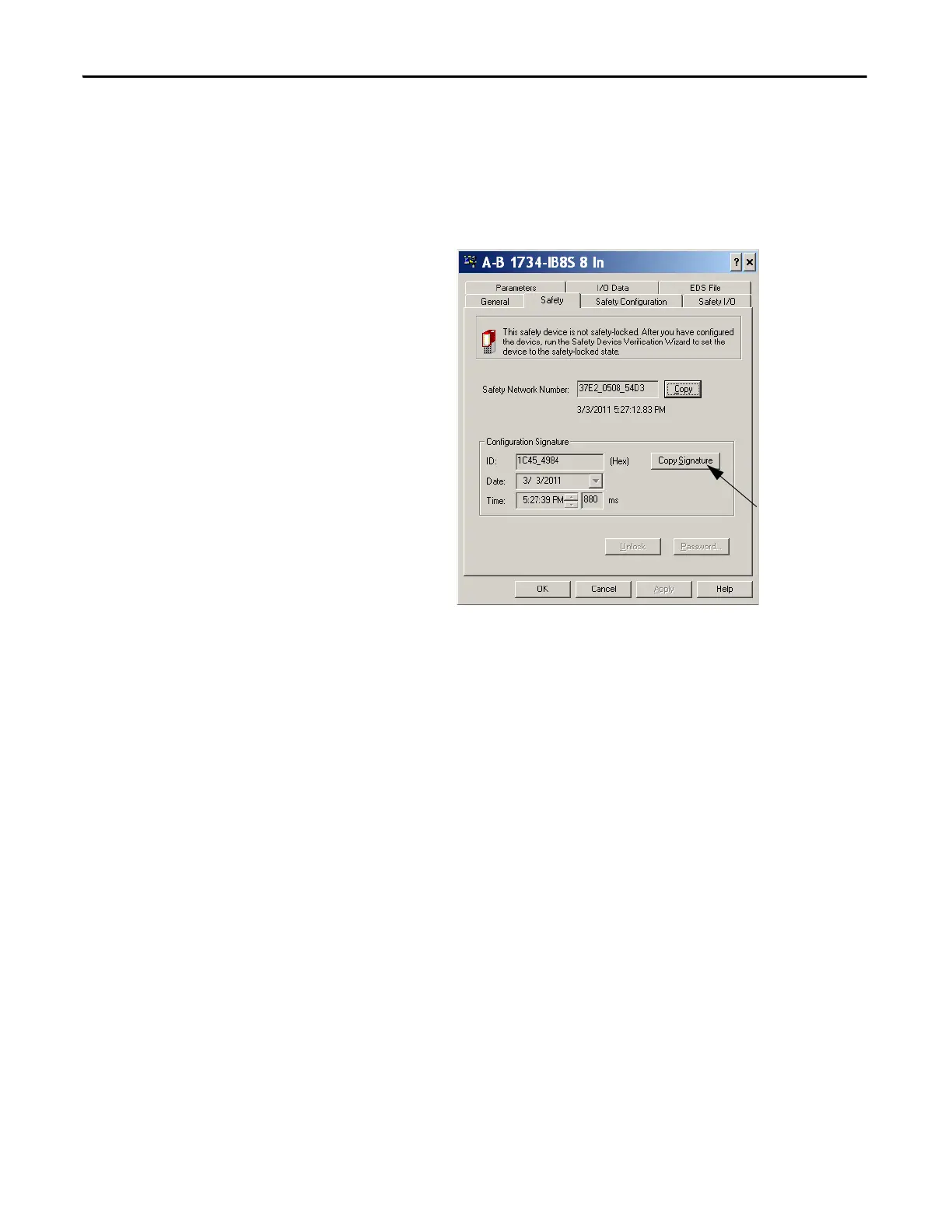

2. On the Safety tab, click Copy Signature.
3. In the Logix Designer application, right-click the DEVICENET-
SAFETYMODULE and choose Properties.
