Rockwell Automation Publication 1734-UM013N-EN-P - September 2017 141

Configuring Safety Connections between a GuardLogix Controller and POINT Guard I/O Modules on a DeviceNet Network Chapter 7

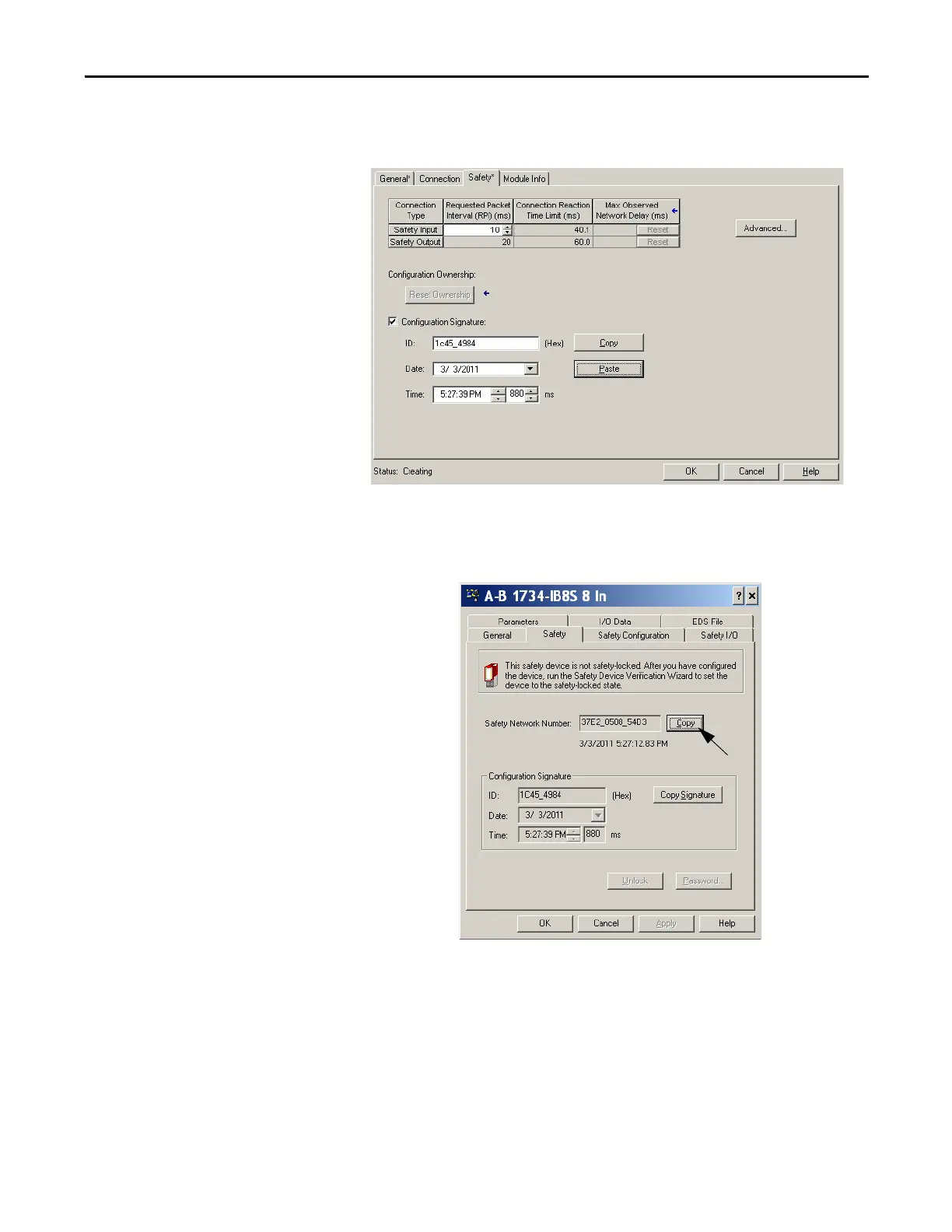

4. On the Safety tab, check the Configuration Signature checkbox.

5. Click Paste.

6. In RSNetWorx for DeviceNet software, click Copy to copy the safety

network number.
