Rockwell Automation Publication 1734-UM013N-EN-P - September 2017 25
Chapter 2
Safety Inputs, Safety Outputs, and Safety Data
Safe States
POINT Guard Digital I/O Modules
The following are the safe states of the digital POINT Guard I/O™ modules:
• Safety outputs: OFF
• Safety input data to network: OFF (single channel and
dual-channel equivalent)
• Safety input data to network: OFF/ON for input channels n/n+1
(dual-channel complimentary)

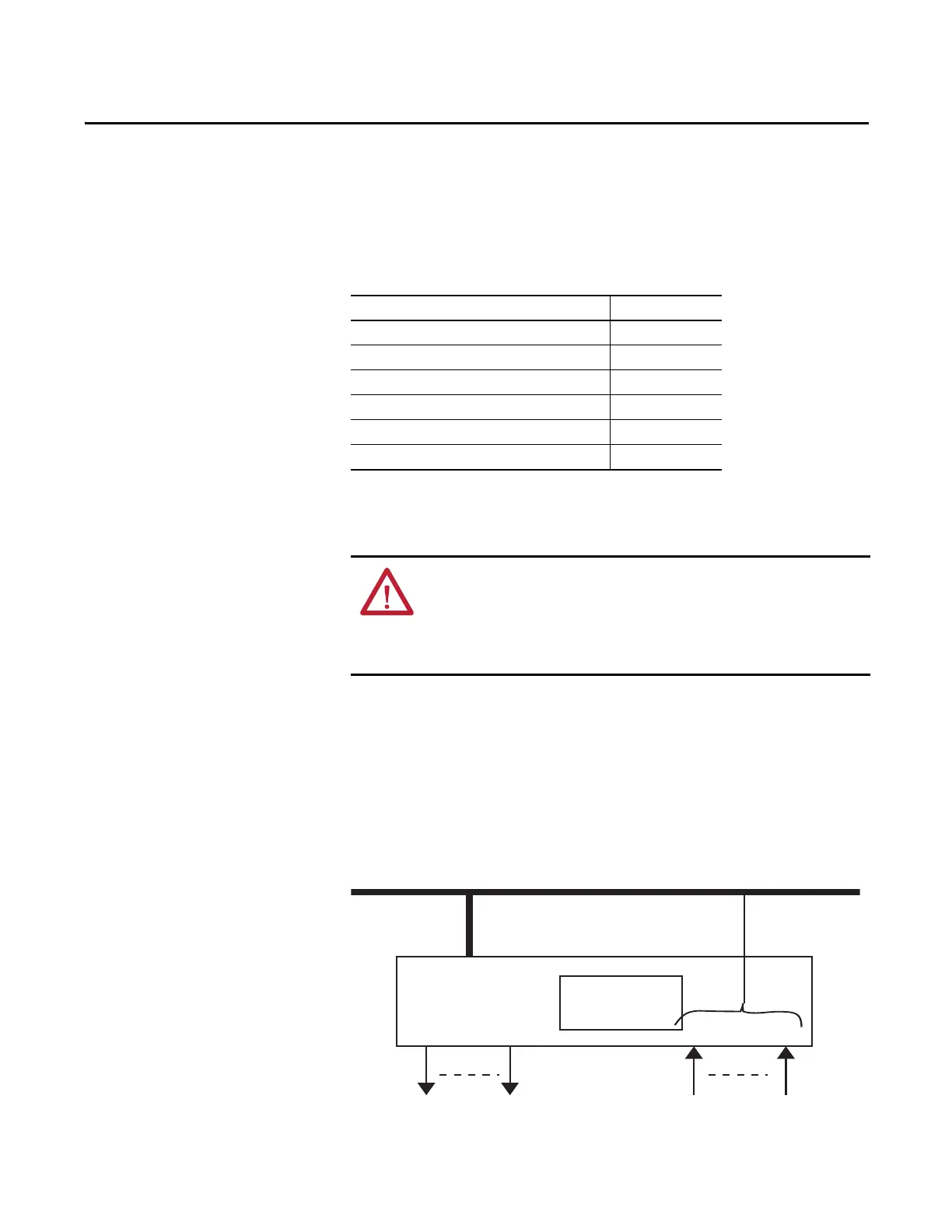

Figure 3 - Safety Status
The module is designed for use in applications where the safe state is the off state.
Topic Page
Safe States 25
Safety Inputs (1734-IB8S) 26
Safety Analog Inputs (1734-IE4S) 33
Safety Outputs (1734-OB8S and 1734-OBV2S) 41
Muting Lamp Operation (1734-IB8S) 44
I/O Status Data 45
ATTENTION:
• The safe state of the outputs is defined as the off state.
• The safe state of the module and its data is defined as the off state.
• Use the POINT Guard I/O™ module only in applications where the off state is the
safe state.
Output OFF
Input
Inputs to Network OFFNetworks
Safety
Status
44076
