58 Rockwell Automation Publication 1734-UM013N-EN-P - September 2017
Chapter 4 Install the Module
Follow these steps to install the mounting base.
1. Position the mounting base as shown in the illustration below step 2
.
2. Slide the mounting base down, allowing the interlocking side pieces to
engage the adjacent module, power supply, or adapter.
3. Press firmly to seat the mounting base on the DIN rail until the mounting
base snaps into place.
See the terminal base installation instructions for detailed information on
installation and removal. Always follow instructions and torque specifications in
terminal base installation instructions. See Additional Resources
on page 14 for
terminal base installation publications.
In high vibration environments, install slide locks helps prevent the movement
of the mounting base along the DIN rail.

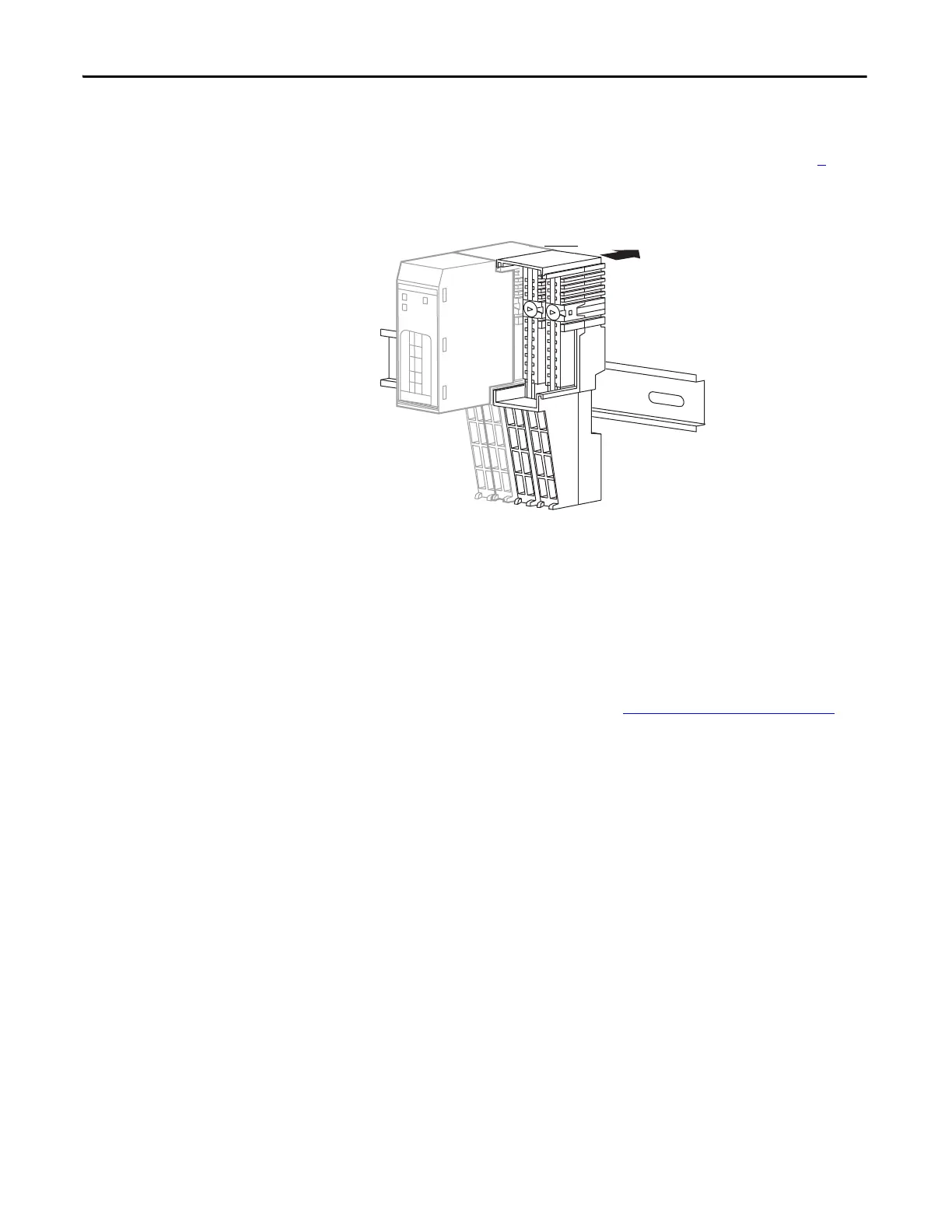

Slide the mounting base to let the
interlocking side pieces engage
the adjacent module or adapter.
31868-M
