Chapter 7 Configuring Safety Connections between a GuardLogix Controller and POINT Guard I/O Modules on a DeviceNet Network

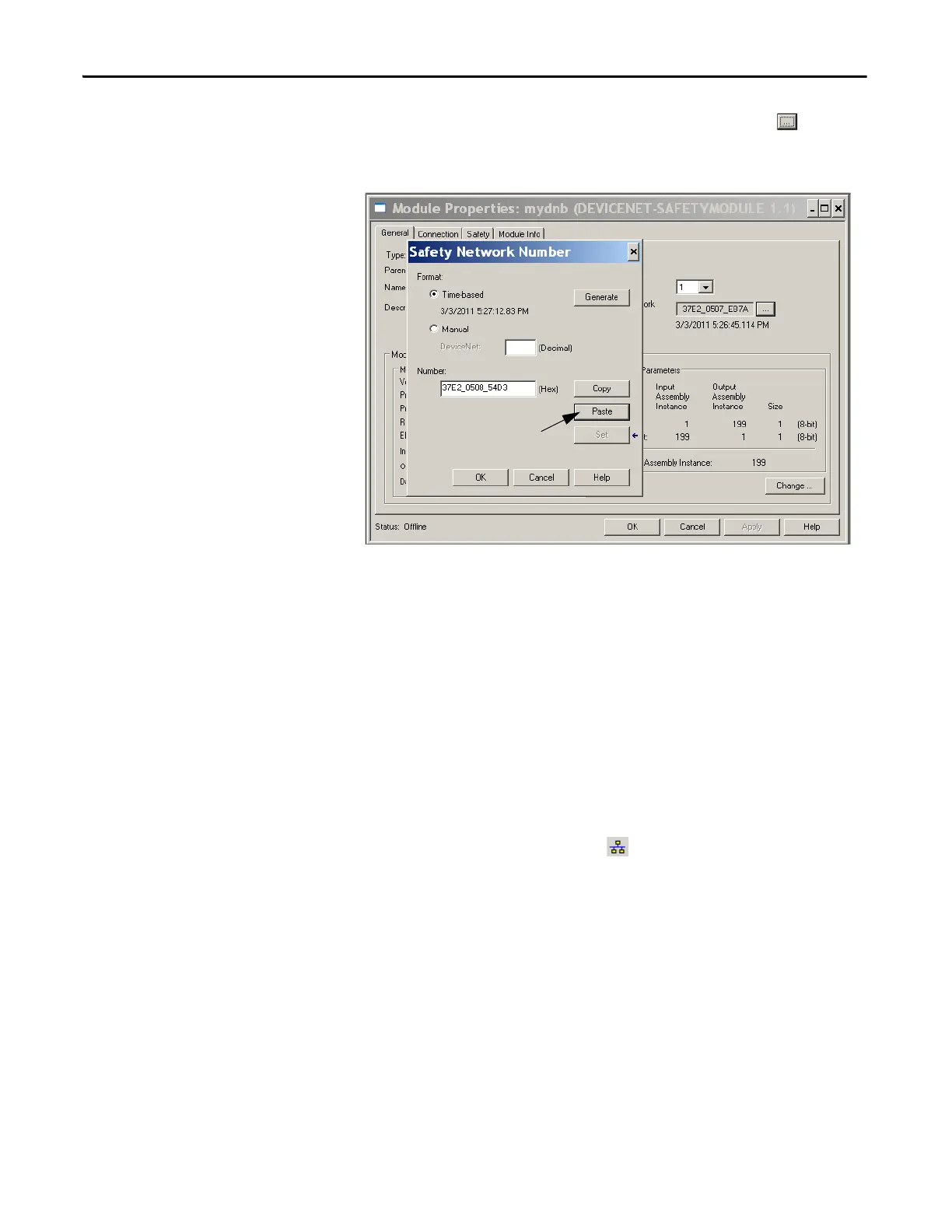

7. On the General tab in the Logix Designer application, click next to
the safety network number field.
8. Click Paste.
Download the DeviceNet
Network Configuration
Before you download, you must go online to the DeviceNet network by using
RSNetWorx for DeviceNet software. Your computer and the devices you wish to
communicate with must be connected to the DeviceNet network.
When you go online to a DeviceNet network, RSNetWorx for DeviceNet
software browses the network one time and shows you the devices on the
network. If you go online, this action does not upload (read) or download
(change) the parameters of any of the devices.
To download the DeviceNet network configuration, follow these steps.
1. Go online by clicking the online icon.
2. Browse to the DeviceNet network and click OK at the prompt.
3. Download your configuration to the network by right-clicking the device
and then choose Download to Device.
4. To download, click yes.
